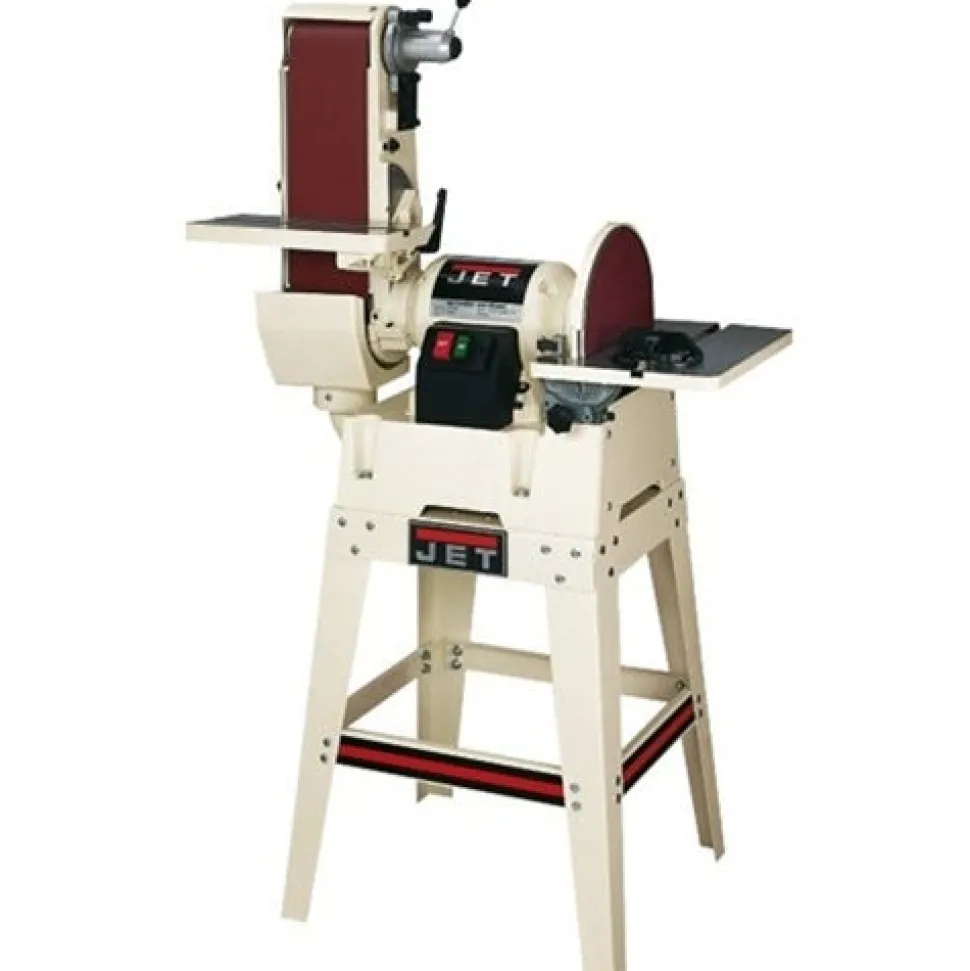

Jet JSG-6DCK Combination 6″ x 48″ Belt/ 12″ Disc Sander 708599K

• Jet Tools
• Two precision grounnd cast iron tables have preset stops at 90 and 45 to let you use the belt sander vertically; horizontally; or anywhere in between
• EXCLUSIVE dual thumbscrew belt racking adjustment locks to keep belt on track during use
• Graphite covered platen runs cooler; increasing machine and belt life
• Specifically designed belt guard allows full use of the 6 belt width and length
• Tracking adjustment knob with a quick-lock handle keeps the belt on track during use
• Quick release belt tension lever makes belt changes faster and easier
• Single 4″ dust port on the back of the base collects dust effectively from both the belt and the disk
• Powerful 1-1/2HP motor easily handles the toughest sanding operations
• Also available in benchtop and heavy duty closed stand; call for details (800) 242-4424
• Specifications
• Stock Number:    708599K
• Model Number:    JSG-6DCK
• Style:    Open Stand
• Belt Size:    48 x 6″
• Disk Diameter:    12″
• Belt Speed:    2200 SFPM
• Disc Speed:    1725 RPM
• Belt Table Tilt:    20 up; 45 down
• Belt Table Size:     14-1/2 x 7-3/8″
• Disc Table Tilt:    16-3/8 x 9″
• Disc Table Tilt:    25 up; 45 down
• Dust Port Diameter:    4″
• Amps:     12/6
• Motor HP:     1-1/2HP
• Motor Phase:    1
• Motor Voltage:    115/230V
• Prewired:    115V
• Net Weight:    243 lbs.

“
