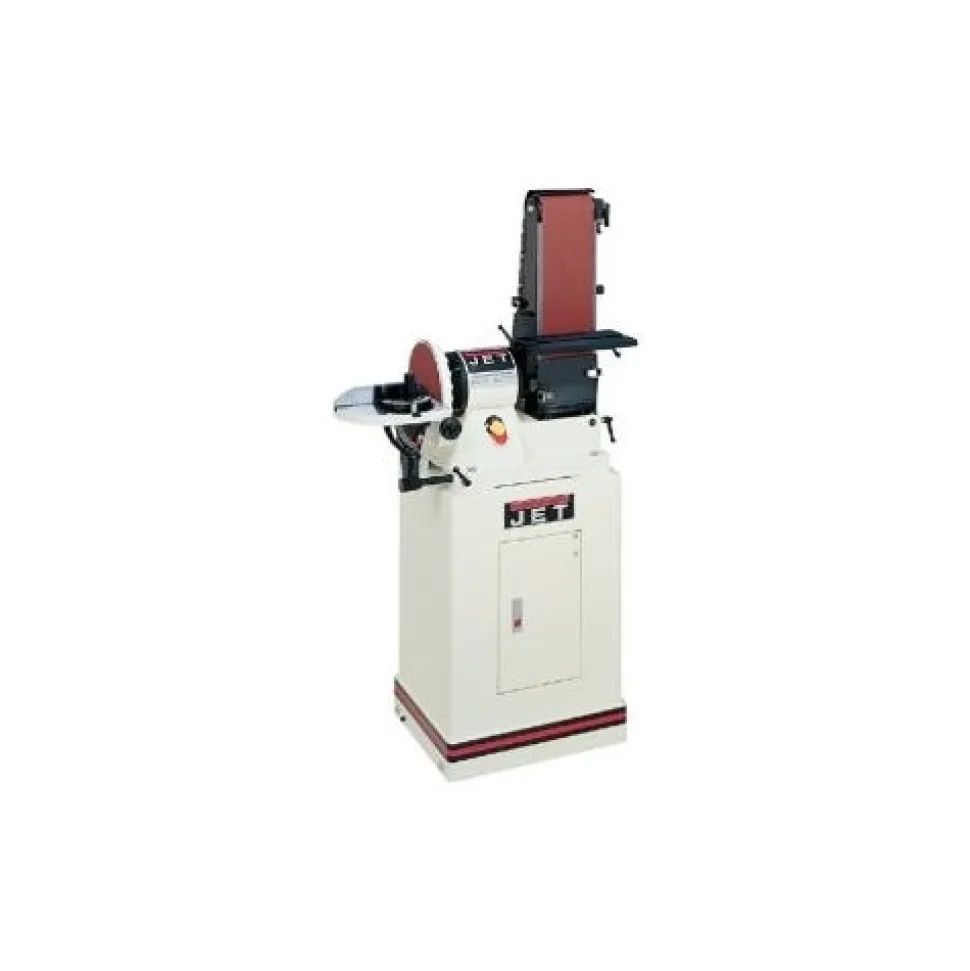

Jet JSG-96CS 6″ x 48″ Belt / 9″ Disc Sander with Closed Stand 3/4HP 1Ph 115V 708597K

• Jet Tools
• JSG-96CS; 6 x 48″ Belt / 9″ Disc Sander with Closed Stand; 3/4HP 1Ph; 115V 708597K
• The unique JSG-96CS Sander combines a 9″ disc and 6″ x 48″ belt for workshop versatility. While small and compact; the JSG-96 offers industrial 3/4 HP power while taking up a small footprint in your shop. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.
• Large cast iron table has preset stops at 90 and 45 to let you use the belt sander vertically; horizontally; or anywhere in between
• EXCLUSIVE dual thumbscrew belt racking adjustment locks to keep belt on track during use
• Graphite covered platen runs cooler; increasing machine and belt life
• Specifically designed belt guard allows full use of the 6″ belt width and length
• Drive drum is rubber coated for a better grip on the sanding belt; resulting in less slipping
• Tracking adjustment knob with a quick-lock handle keeps the belt on track during use
• Quick release belt tension lever makes belt changes faster and easier
• Quick-lock dust cover allows for fast disk changes
• Single 4″ dust port on the back of the base collects dust effectively from both the belt and the disk
• Powerful 3/4HP motor easily handles the toughest sanding operations
• Built in handles for easier portability
• Also available in benchtop and heavy duty closed stand; call for details (800) 242-4424
• Specifications
• Style (Type) Closed Stand
• Disc Diameter (In.) 9
• Disc Speed (RPM) 1725
• Disc Table Tilt (Deg.) 10 Up; 45 Down
• Disc Table Size (L x W) (In.) 12 x 7-1/2
• Sanding Belt Size (L x W) (In.) 48 x 6
• Belt Speed (RPM) 2258
• Belt Table Tilt (Deg.) 10 Up; 45 Down
• Belt Table Size (L x W) (In.) 11 x 5-1/2
• Dust Port Outside Diameter (In.) 4
• Motor Power (HP) 3/4
• Motor Phase (PH) 1
• Motor Voltage (V) 115
• Prewired Voltage (V) 115
• Motor Amps 11

“
