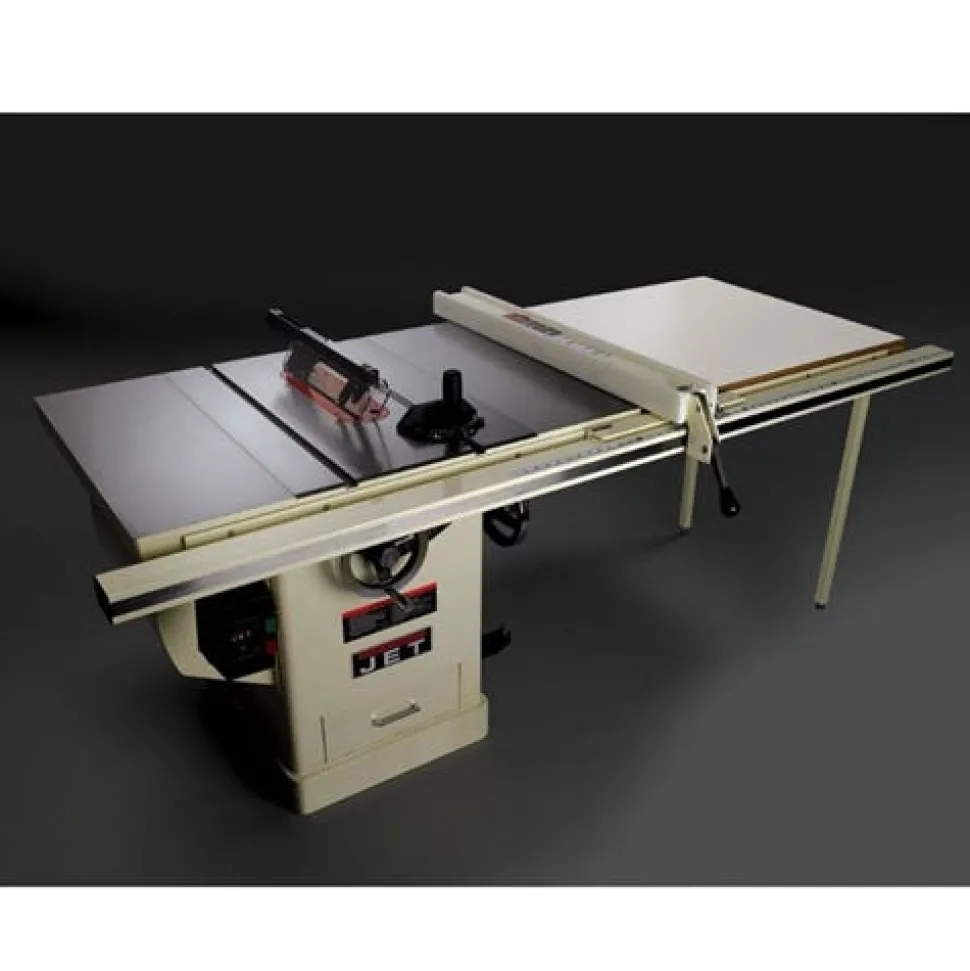

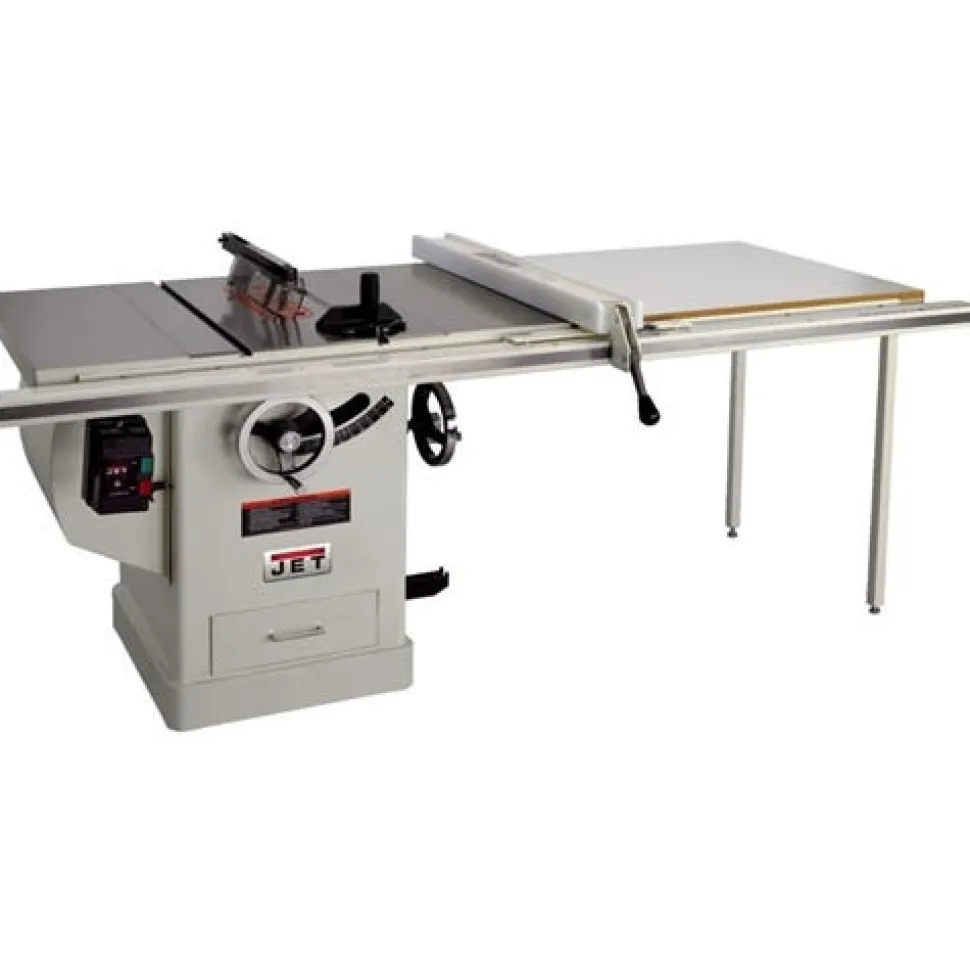

Jet JTAS-10XL-DX 10″ Deluxe Xacta Tablesaw 3HP w/ 50″ Rip Capacity 708675PK

Jet Tools

JTAS-10XL-DX 10 Deluxe Xacta Tablesaw 3HP W/ 50″ Rip Capacity 708675PK

The DELUXE XACTA SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer; a fully shrouded blade for highly efficient dust collection. The 26″ x 30″ wings and deeper table gives you even more cast iron to work on. A built-in 12.5″ x 18″ x 4 ” storage drawer sealed from the cabinet keeps your necessities within arms reach.

FEATURES:

• EXCLUSIVE 50″ Commercial XACTA Fence II with T-square design.
• Quick release riving knife greatly reduces binding/kickback risk.
• Shrouded Blade increases dust collection efficiency.
• Standard 11″ left and right cast iron extension wings provides the largest table surface in its class.
• Poly-V drive belt system delivers quiet; efficient operation.

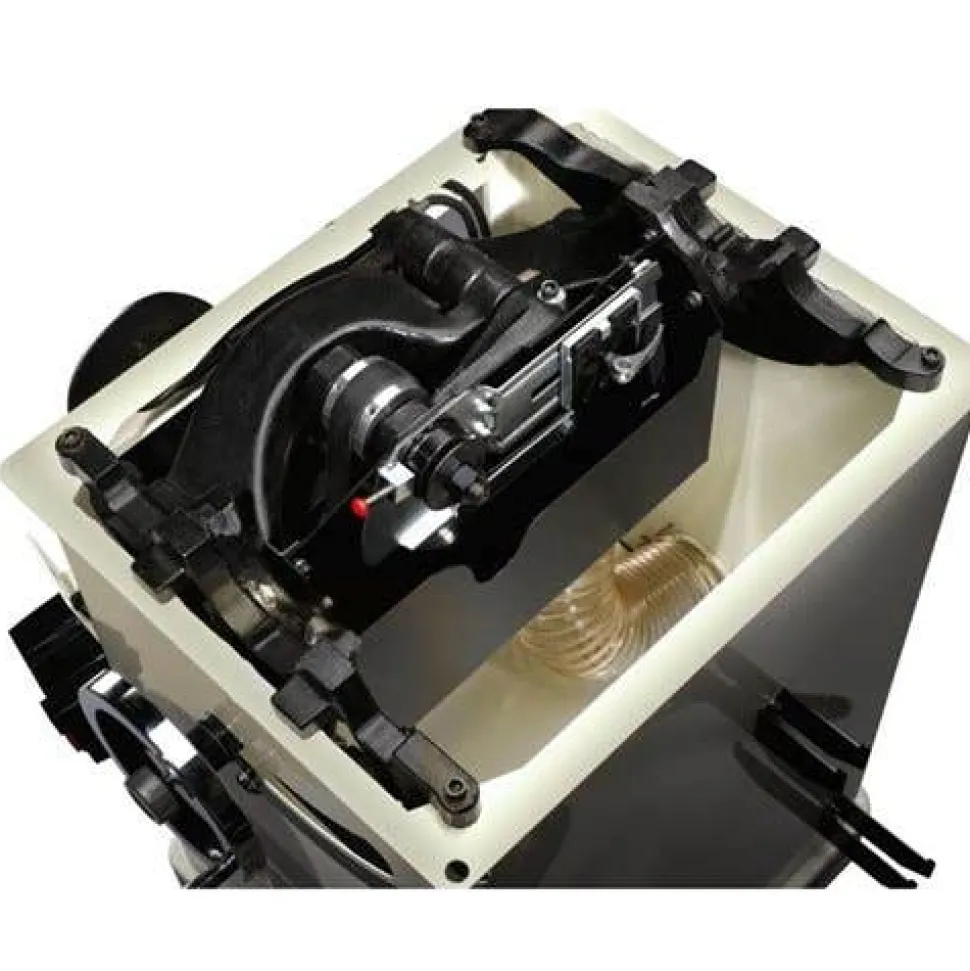

• Hinged motor cover on cabinet gives quick access to the motor and belts.
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters.
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement.

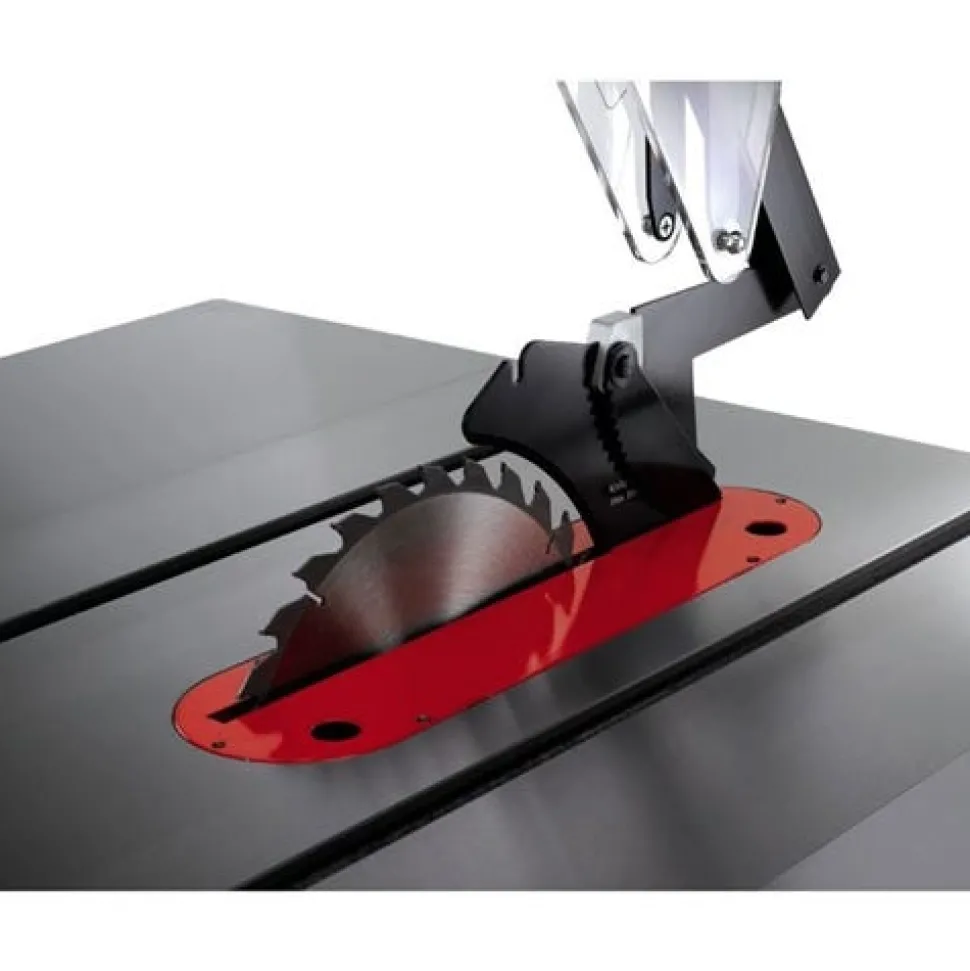

• Independent leaf safety guard protects operator from blade while cutting; even at 45° tilt.
• Powder coated paint for a long-lasting; chip-resistant finish.

SPECIFICATIONS:

Style (Type)	Cabinet
Blade Diameter (In.)	10
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4300
Maximum Depth of Cut (In.)	3
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Rip Left of Blade (In.)	13
Maximum Rip Right of Blade (In.)	50
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10
Maximum Diameter of Dado (In.)	8
Maximum Width of Dado (In.)	13/16
Table Type	Cast Iron
Table Size (L x W) (In.)	29 x 20
Table Size with Extension (L x W) (In.)	29 x 42
Miter Gauge Type	Deluxe
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	14.5

INCLUDES:

• On-board fence.
• Miter guage storage.

“
