Jet JWDS-1020 Benchtop Drum Sander 723510

Jet

JWDS-1020 Benchtop Drum Sander 723510

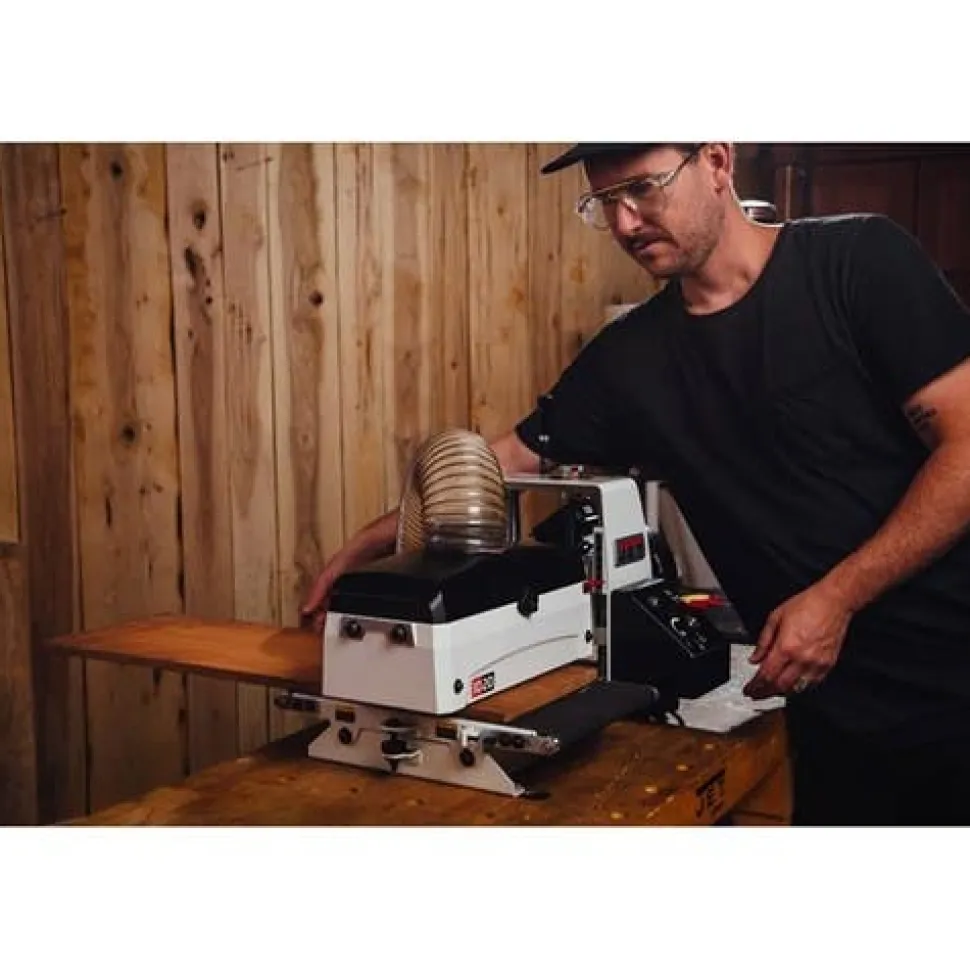

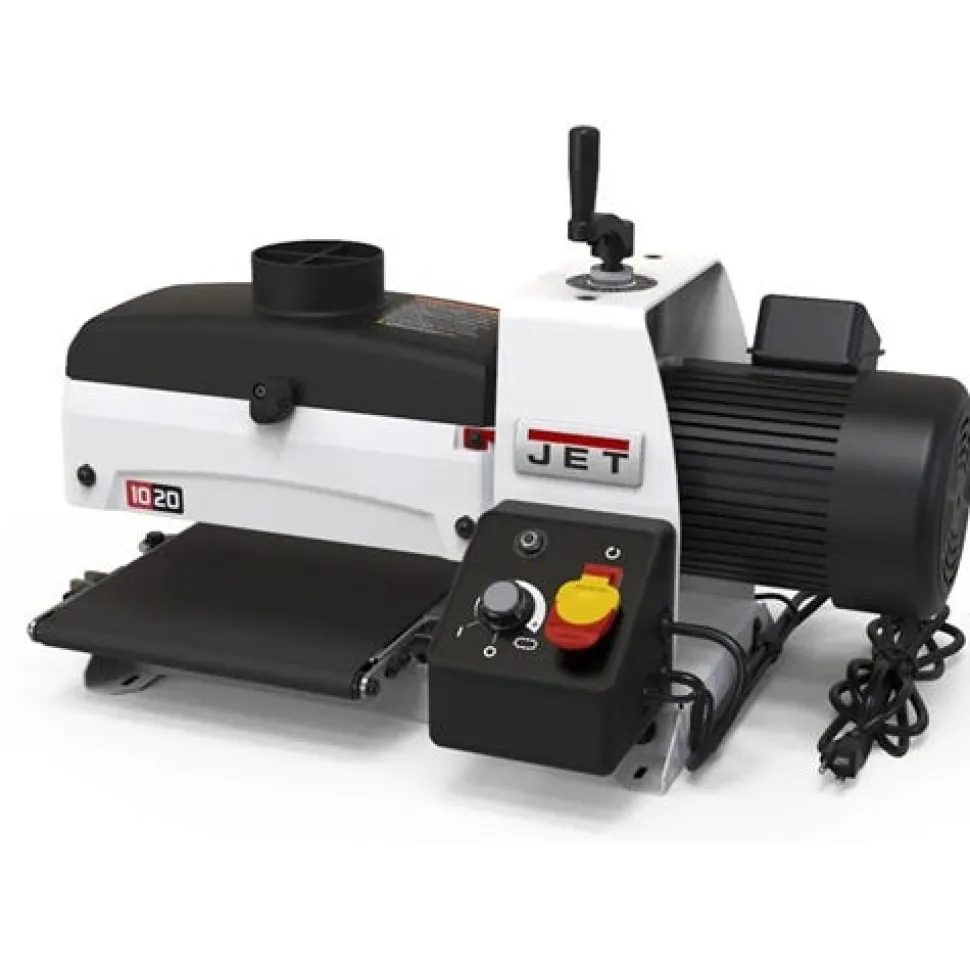

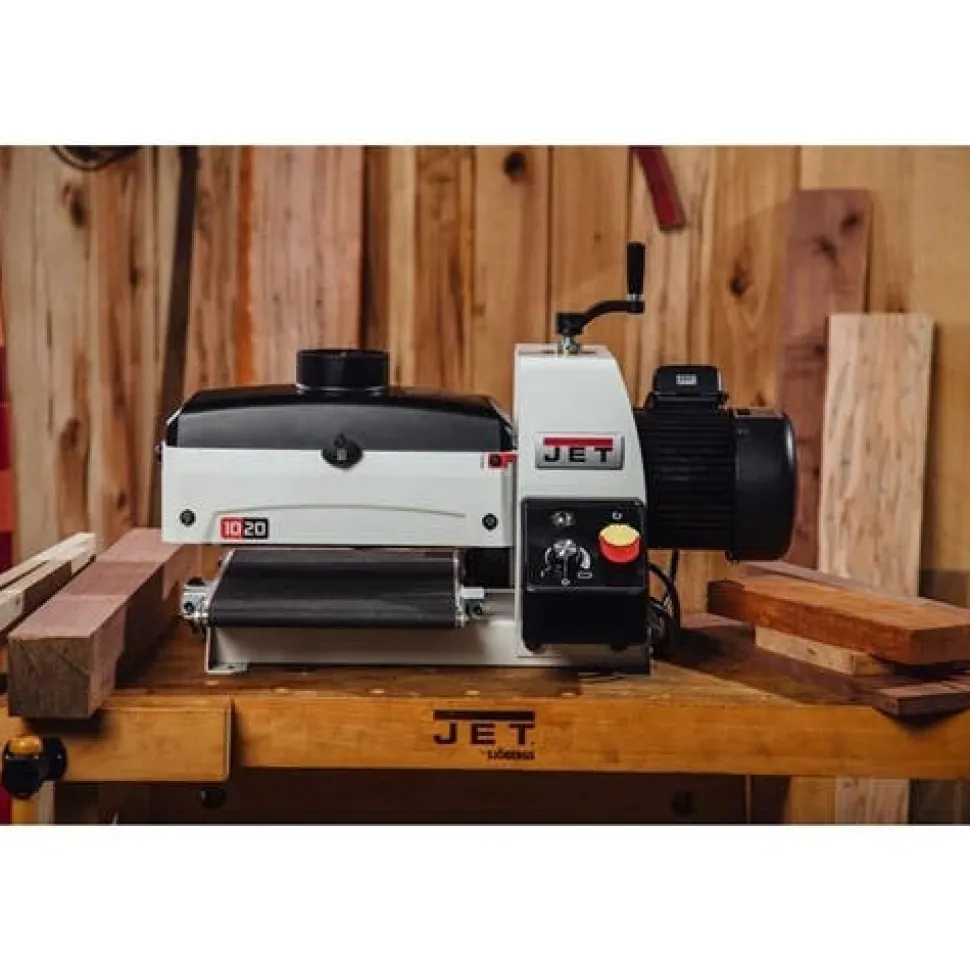

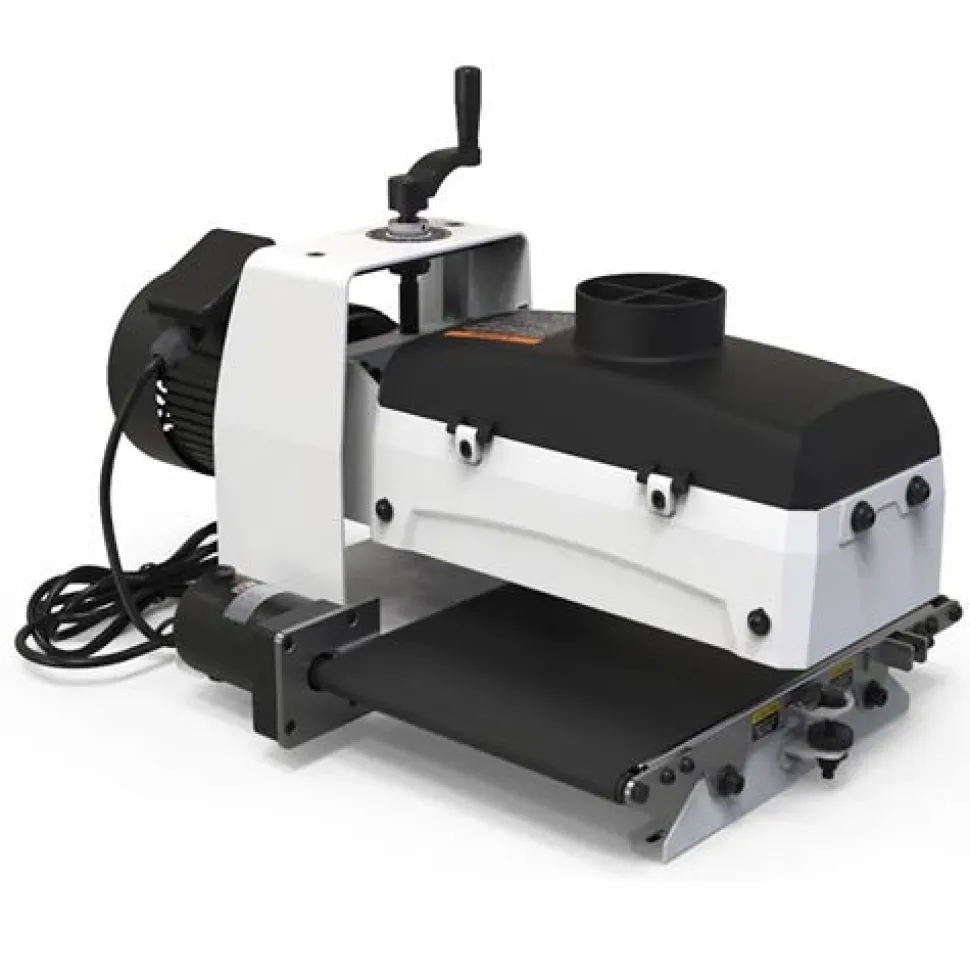

The compact JWDS-1020 benchtop sander from JET packs a powerful 1HP motor that will sand boards up to 3 thick and 20″ wide. The innovative patented dust hood ensures dust is funneled to the 4 inch dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage; preventing waste.

FEATURES:

• Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality.

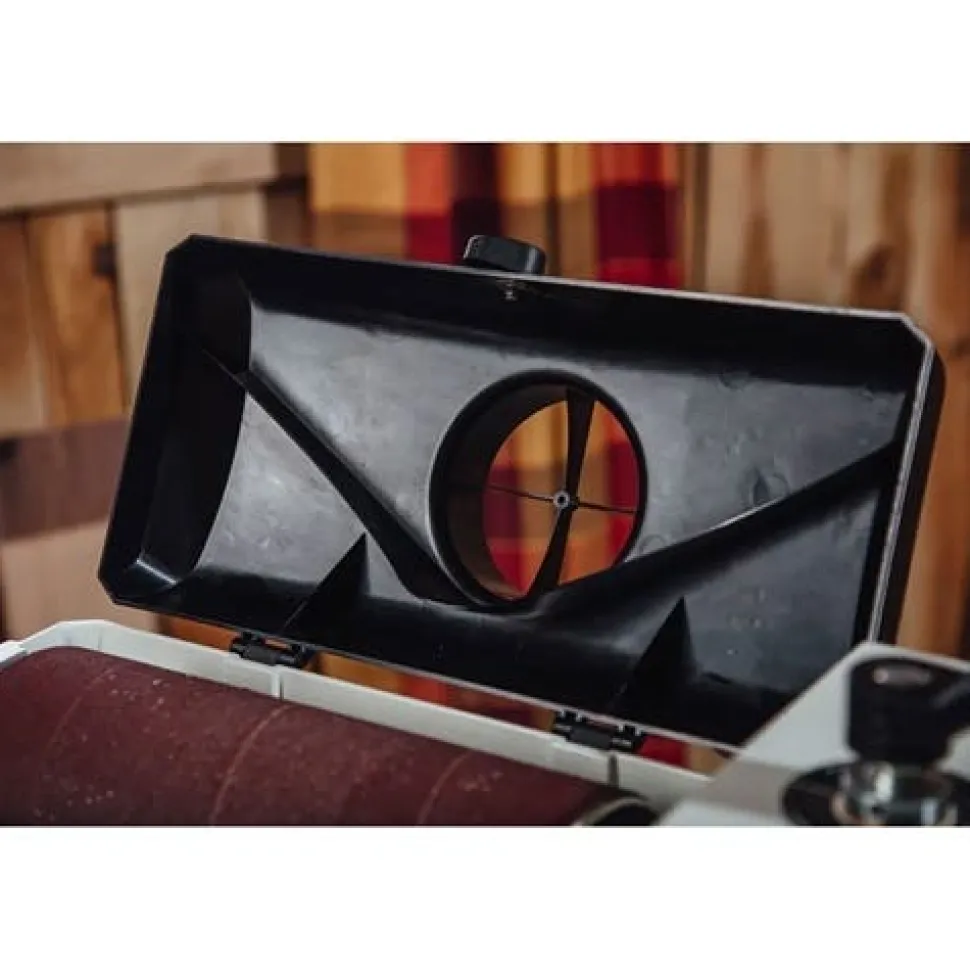

• Patented dust hood incorporates an integrated channel that directs dust to a 4″ collection port.

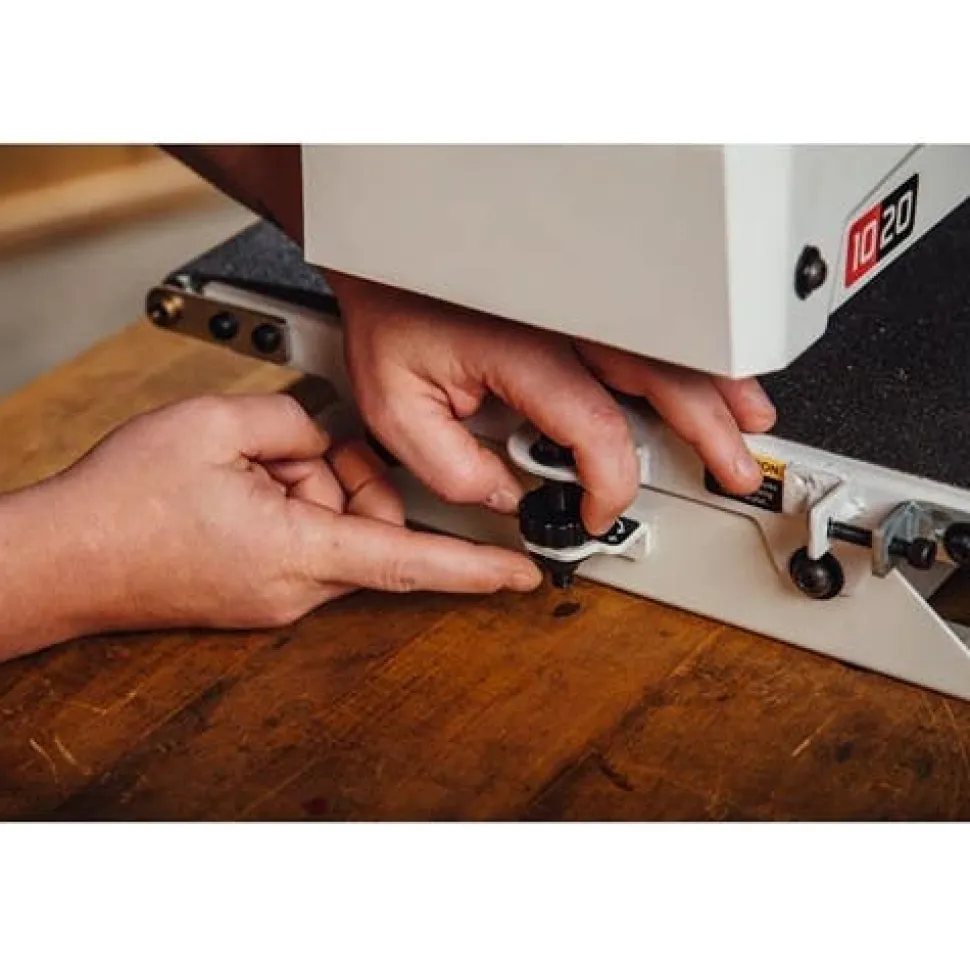

• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position.

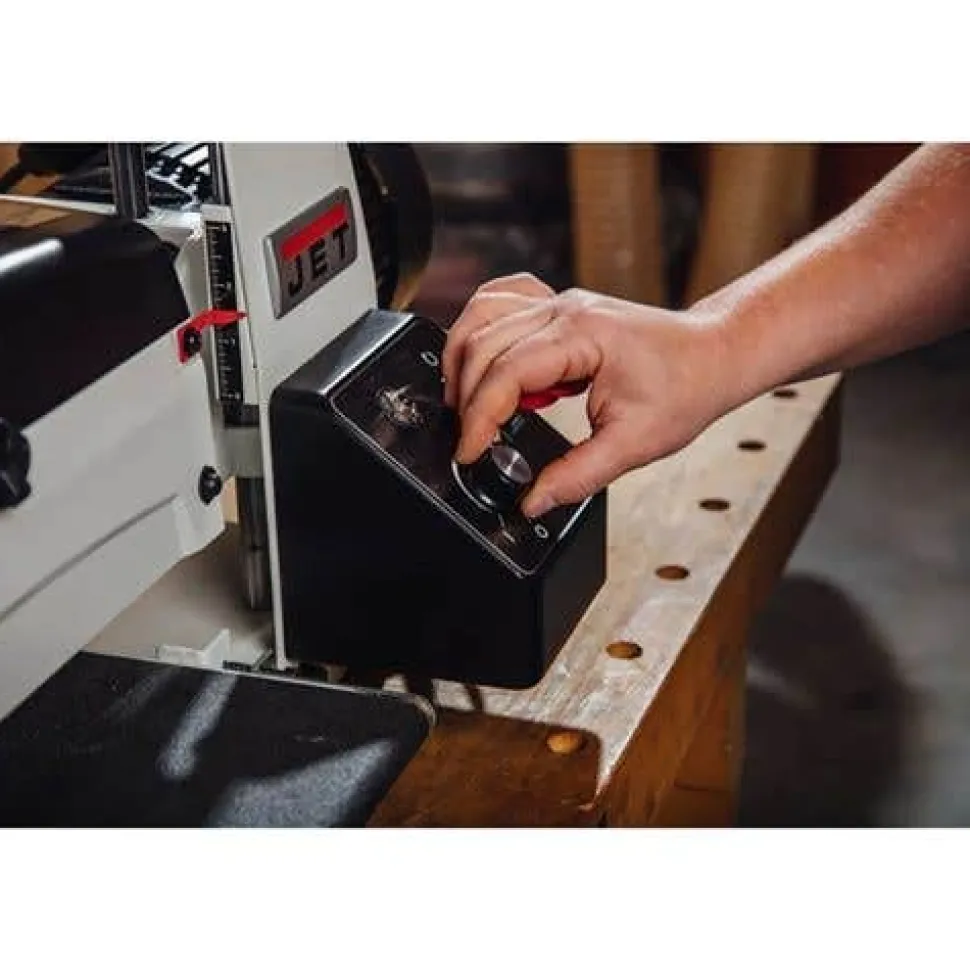

• Infinitely variable-speed control allows the user to choose the optimal feed rate.
• Open ended design allows for up to 20″ of sanding capacity with 2 passes.
• Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage.
• Redesigned conveyor system pulls the workpiece through the sander instead of pushing.

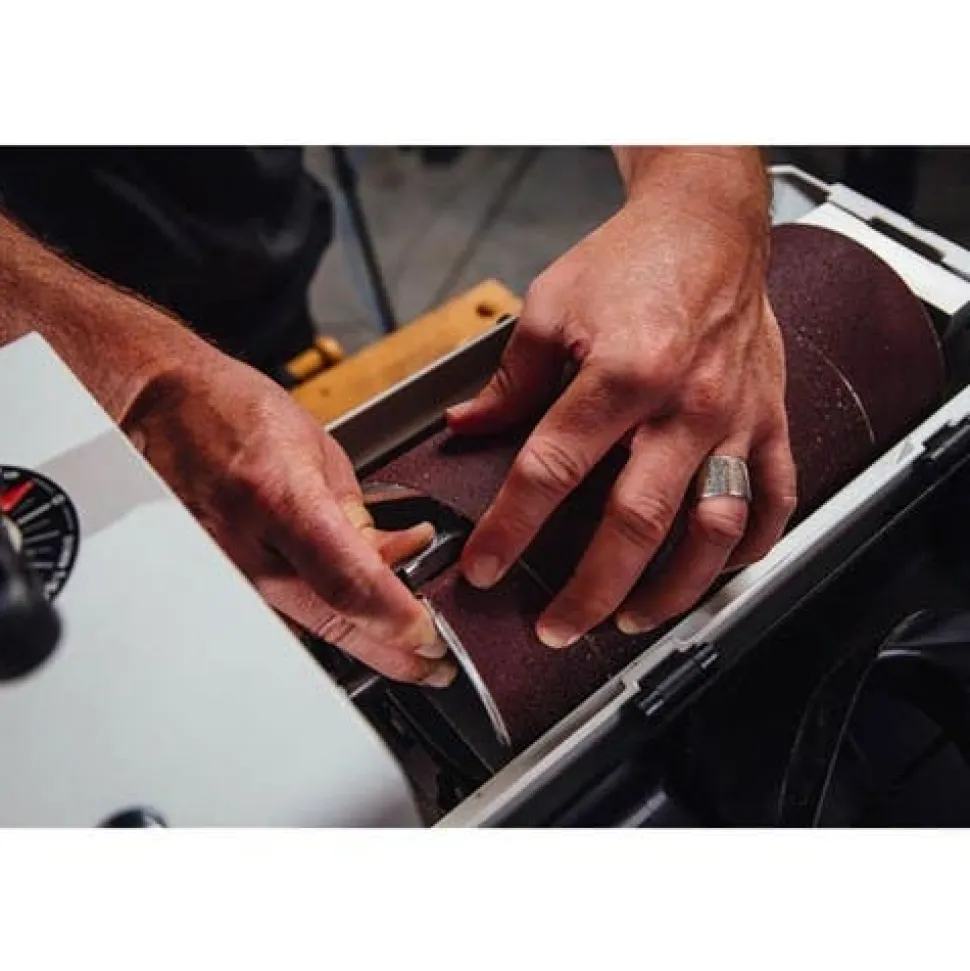

• Toolless abrasive take-up fasteners make changing abrasives quick and easy.
• Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum.
• Control system with integrated circuit breaker protects motor from over heating.

SPECIFICATIONS:

Drum Length (In.)	10
Drum Speed (RPM)	1725
Drum Diameter (In.)	5
Conveyor Motor	Totally Enclosed DC
Conveyor Speed (FPM)	0-10
Maximum Board Thickness (In.)	3
Maximum Board Width (In.)	20
Motor Power (HP)	1
Motor Voltage (V)	115

“
