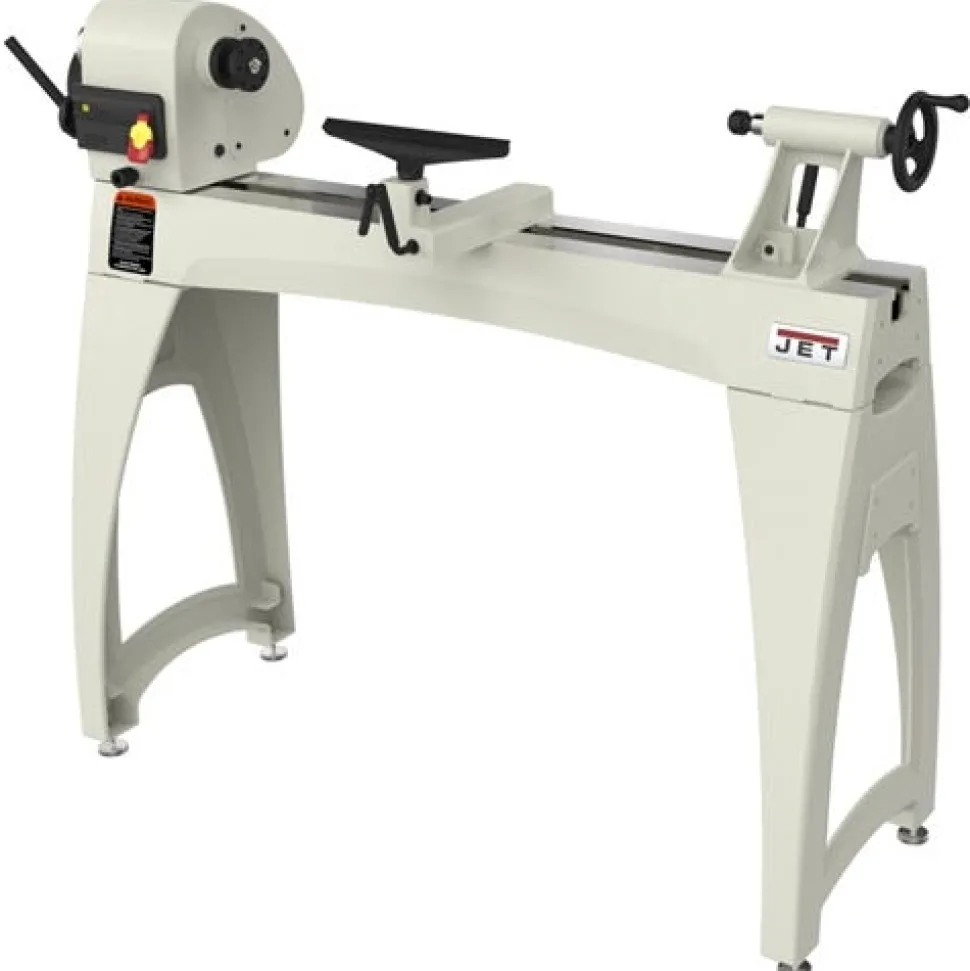

Jet JWL-1440VSK 14″ x 40″ Wood Lathe w/ Legs 719400K

Jet Tools

JWL-1440VSK 14 x 40″ Wood Lathe w/ Legs 719400K

The 1440 lathe from JET can be tailored to accomplish a wide range of projects. With a sliding and pivoting headstock; variable speed; and many other great features this lathe meets the needs of woodturners.

FEATURES:

• Headstock slides for maximum versatility.
• Variable speed from 400-3000 RPM.
• Positive locking tool rest with redesigned clamping.
• Optional extension bed takes the capacity to 60″ between centers.
• Acme thread in tailstock.
• Improved tailstock quill locking with anti-rotation key.
• Easy-to-read RPM display.
• CSA Certified.

SPECIFICATIONS:

Style (Type)	Floorstanding Model
Swing Over Bed (In.)	14-1/2″
Swing Over Tool Rest Base (In.)	11″
Distance Between Centers (In.)	40″
Headstock Movement	Sliding/Pivoting
Spindle Bore (In.)	3/8″
Spindle Taper	MT2
Quill Taper	MT2
Quill Travel (In.)	4-1/4″
Spindle Thread (In./TPI)	1″/8 TPI
Spindle Speeds	Variable
Speed Range	400-3000
Number of Indexing Positions	36
Centerline of Spindle to Floor (In.)	44″
Outboard Turning	Yes
Bed Construction	Cast Iron
Motor Power (HP)	1
Motor Phase (PH)	1
Motor Voltage (V.)	115/230
Prewired Voltage (V.)	115
Motor Amps	11/5.5
Assembled Machine Dimensions (In.)	74″L x 18″W x 49″H
Weight	151 lbs

“
