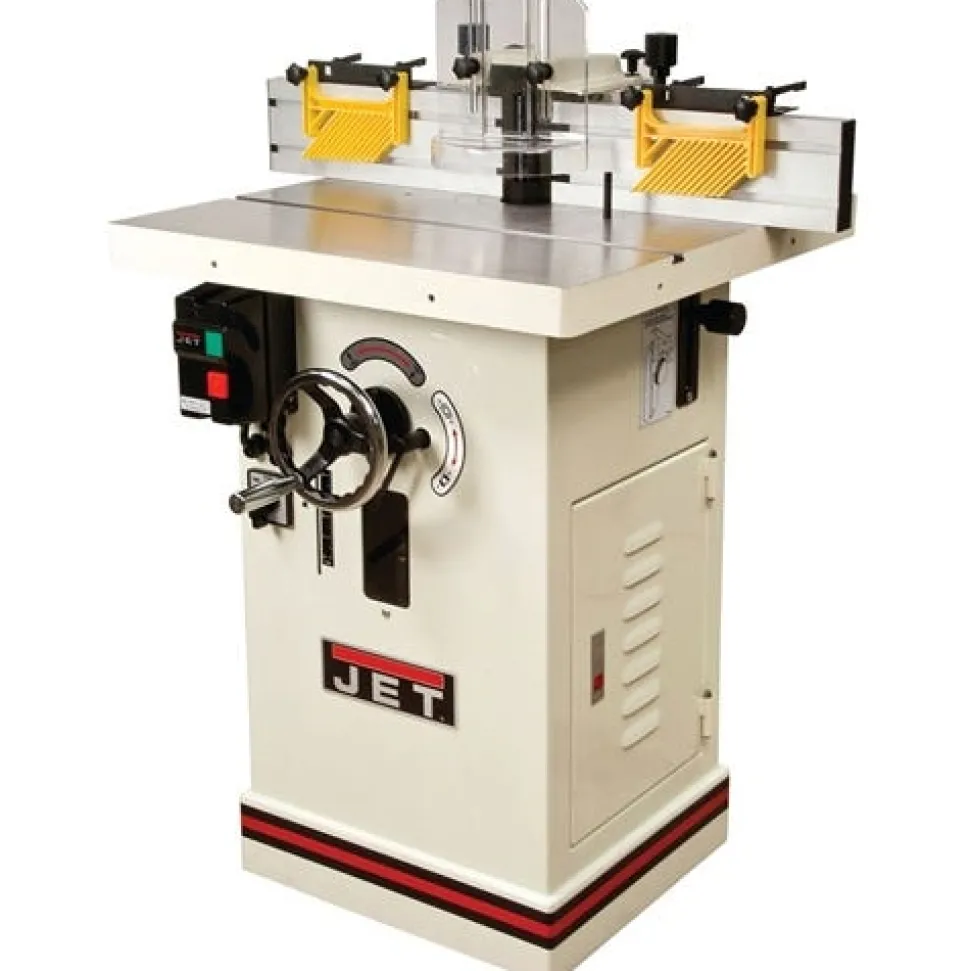

JWS-25X 2 Speed 25X Woodworking Shaper w/ Aluminum Fence 708309

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support.

FEATURES:

• Two-speeds let you select the best speed and torque for different cutter diameters.
• Independently adjustable left and right fences; standard with a micro adjust control for precise positioning.
• Large 25” X 25-1/2” precision ground cast iron table provides a durable work area.
• V-belt transfers maximum power to the spindle.
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs.
• Reversible spindle speeds for diverse shaping jobs.
• Powerful 3HP; 1Ph motor with magnetic controls.
• Starting pins for irregular shaping.
• Extra large chrome handwheel is conveniently located for fast; easy and accurate spindle height adjustments.
• 4” Dust port built into fence for convenient hookup to any dust collection system.
• Spindle lock for safe and easy cutter set up.
• Spindle height scale.

SPECIFICATIONS:

Spindle Speed (RPM)	7500/10000
Maximum Spindle Diameter (In.)	1/2; 3/4″
Spindle Size Under Nut (In.)	2-13/64″; 3-3/16″
Spindle Travel (In.)	3-1/2″
Reversible	Yes
Router Bit Collet Included	No
Maximum Diameter Cutter Above Table (In.)	7″
Maximum Diameter Cutter Below Table (In.)	6″
Table Opening Diameter (In.)	6-9/32″
Table Inserts (In.)	2″
Table Insert Opening Diameter (In.)	2-9/16″; 4-21/64″
Table Size (L x W) (In.)	25-1/2″ x 25″
Table T-Slot (In.)	3/4″ x 3/8″
Table Height from Floor (In.)	33″
Fence Size (L x H) (In.)	14-1/2″ x 4-3/4″
Fence Travel (Major and Minor) (In.)	4-1/4″; 15/16″
Dust Port Outside Diameter (In.)	4″
Dust Collection Minimum CFM Required (CFM)	600
Electrical Controls	Yes
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	16
Recommended Circuit Size (Amps.)	30
Weight	331 lbs

“
