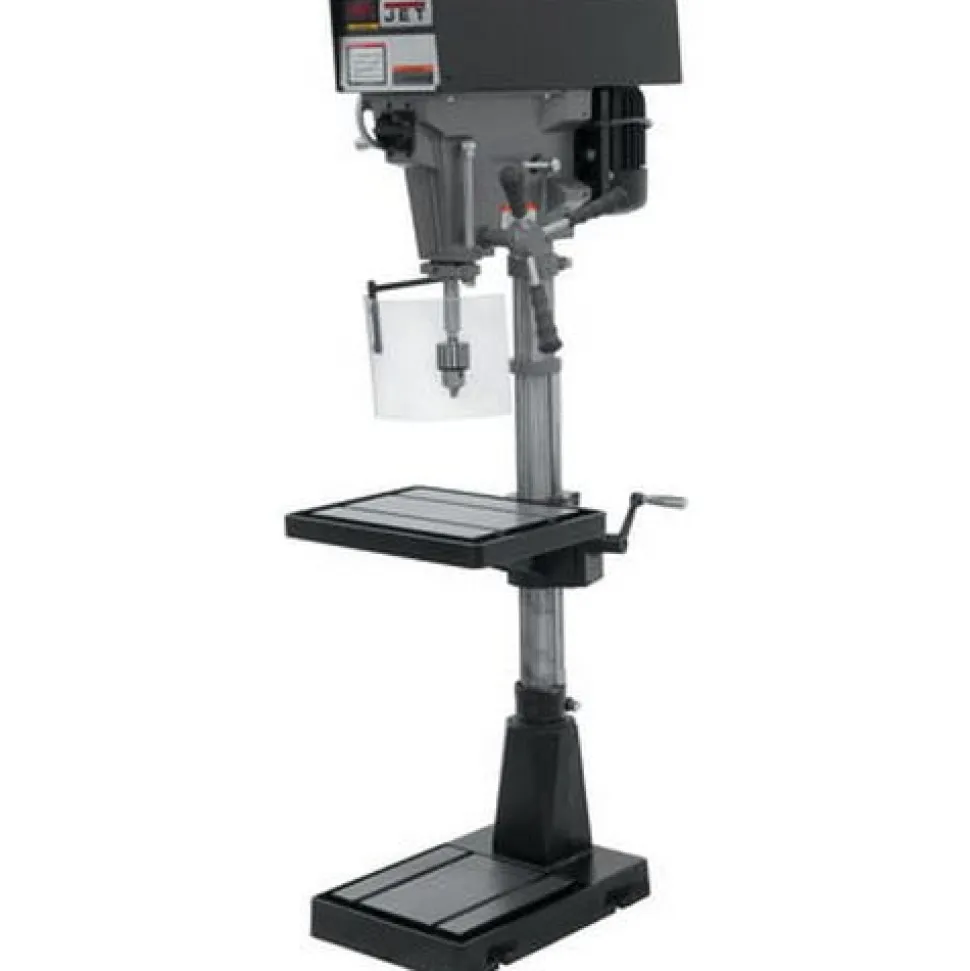

Jet Metalworking J-A5816 Variable Speed Floor Model Drill Press 115/230V 1 Ph 354550

• Jet Tools
• Metalworking J-A5816 15 Variable Speed Floor Model Drill Press 115/230V 1 Ph 354550
• Uses a variable speed motor with stepped pulley system and comes equipped with a continuously variable transmission
• Enables use at a wide range of speeds as well as the ability to change speeds during operation
• Scale marked hand wheel matches the desired machine speed mounted to reduction gearing system for precise operator control
• Adjusts the gearing ratio between the motor’s fixes pulley and the output shaft’s variable pulley; changing the speed of the chuck
• Tensioner pulley is implemented in the belt transmission to take up or release slack in the belt as the speed changes
• Speeds from 400 to 5000 RPM
• Handwheel adjustment sets the speeds
• Large 2-1/4″ quill allows greater accuracy
• 3″ column diameter for maximum head support
• Full bearing support on quill for maximum spindle stiffness
• 6″ Stroke for deep hole application
• Accurate depth stop for precise hole depths 1/2″ drill chuck & arbor
• Safety collar
• Specifications
• Style (Type)    Variable
• Drills to Center of Circle (in)    15
• Drilling Capacity Cast Iron (In.)    5/8
• Drilling Capacity Mild Steel (In.)    1/2
• Distance Column to Spindle (In.)    7-1/2
• Number of Spindle Speeds    Variable
• Range of Spindle Speeds (RPM)    400 – 5;000
• Column Diameter (In.)    3
• Spindle Taper (In. x TPI)    MT-2
• Spindle Travel (In.)    6
• Spindle Distance to Base (In.)    44-1/2
• Spindle Distance to Table (Max.) (In.)    25-3/4
• Table Size (L x W) (In.)    15 x 18
• Table Travel (In.)    16-3/4
• T-Slots Number and Size (In.)    2 & 1/2
• T-Slot Centers (In.)    5-5/16
• Work Table Weight Capacity (Lbs.)    90
• Base Dimensions (In.)    20-7/16 x 14-3/16
• Base Work Table (In.)    12-1/8 x 11-13/16
• Base Slots Number & Size (In.)    2 & 1/2
• Motor (HP)    1 HP; 115/230V; 1Ph
• Prewired (V.)    115
• Overall Dimensions (L x W x H) (In.)    30 x 20 x 71
• Weight (Lbs.)    426

“
