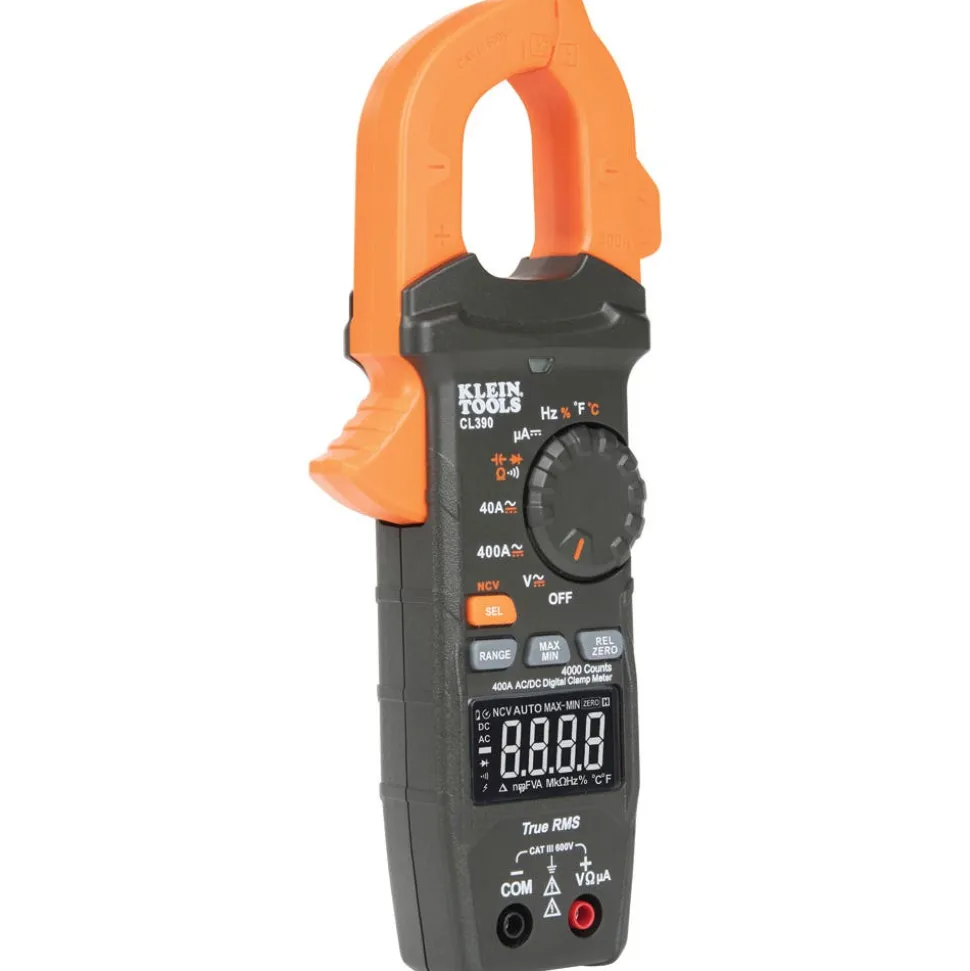

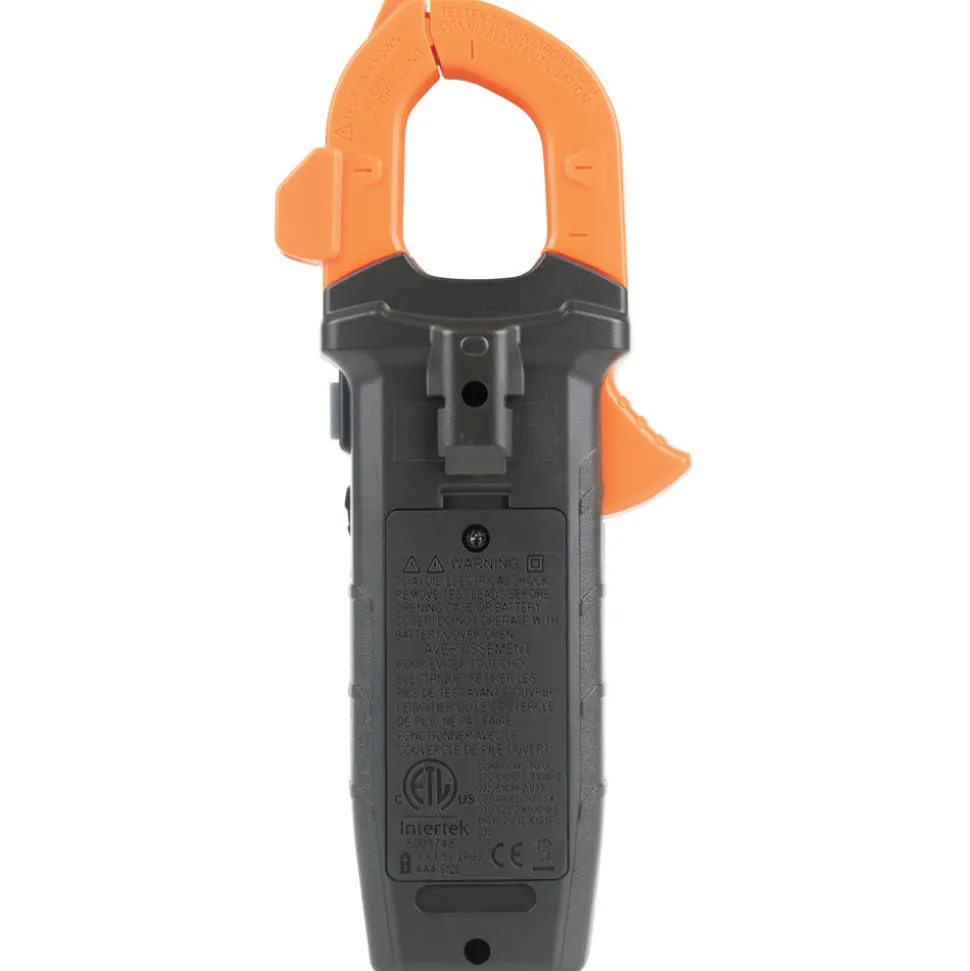

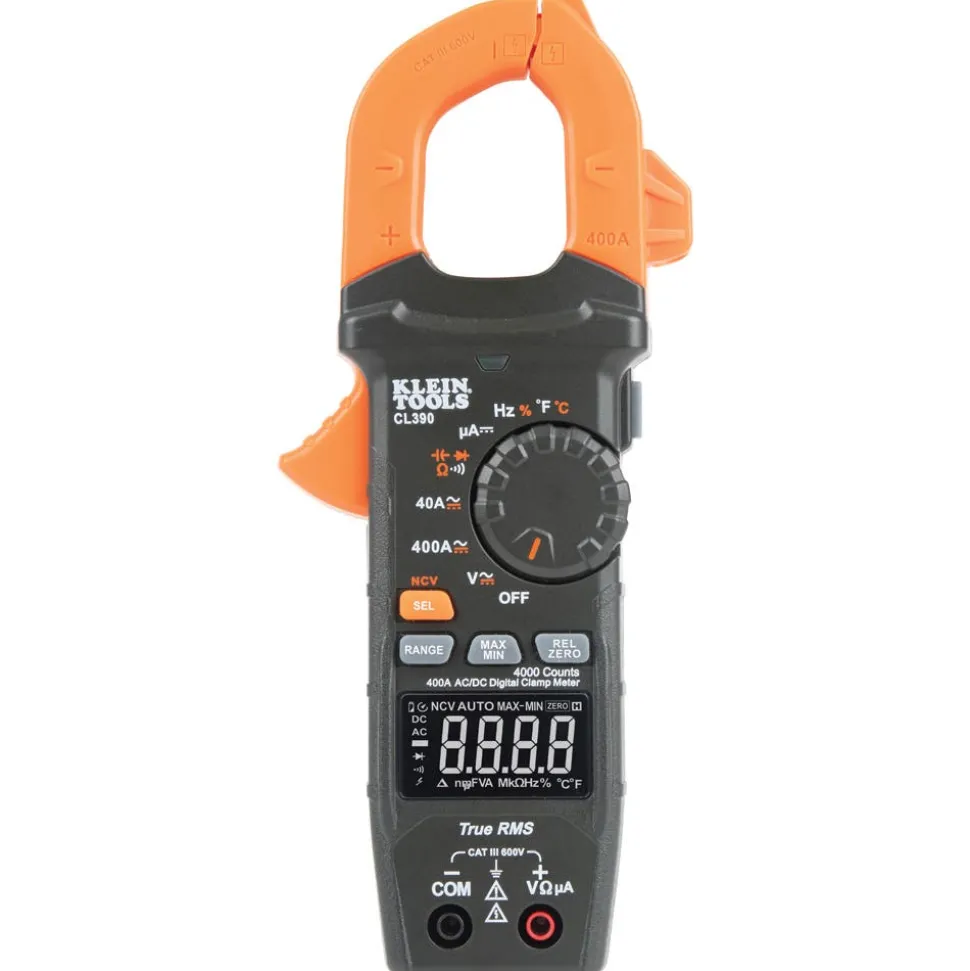

Klein AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp CL390
Original price was: $99.00.$67.89Current price is: $67.89.
Klein

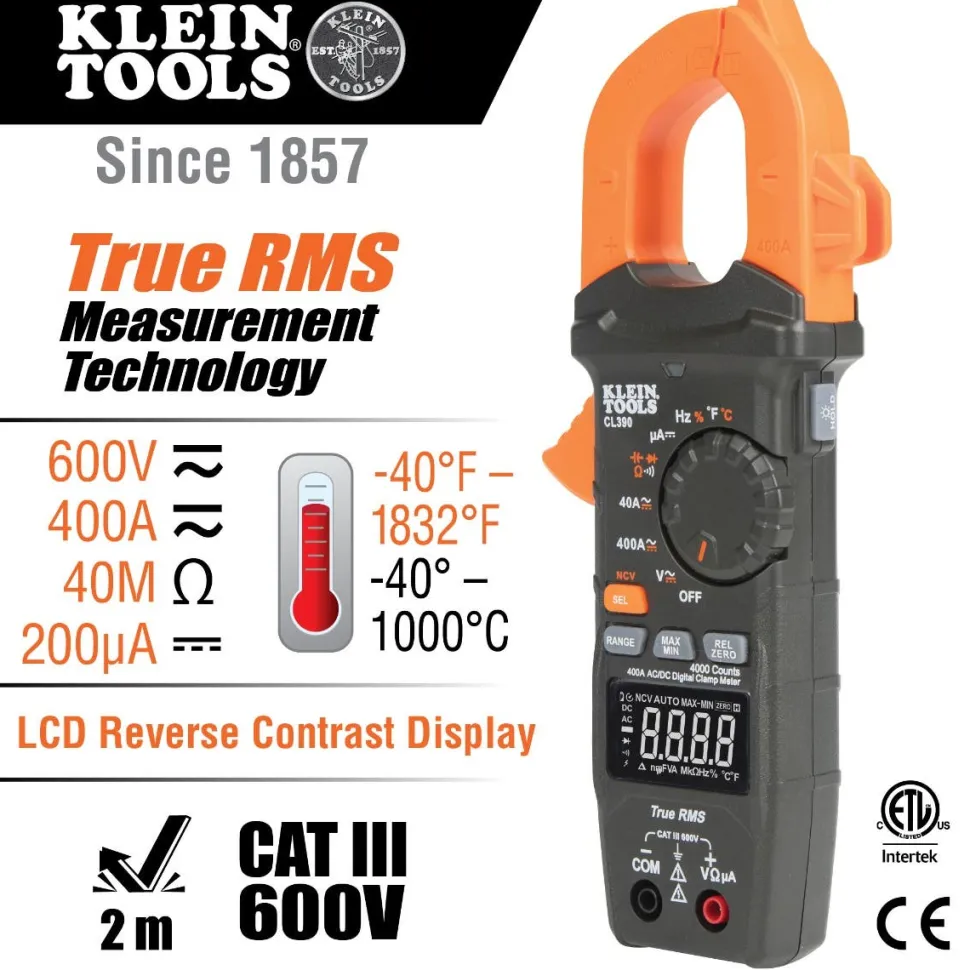

AC/DC Digital Clamp Meter, Auto-Ranging 400 Amp CL390

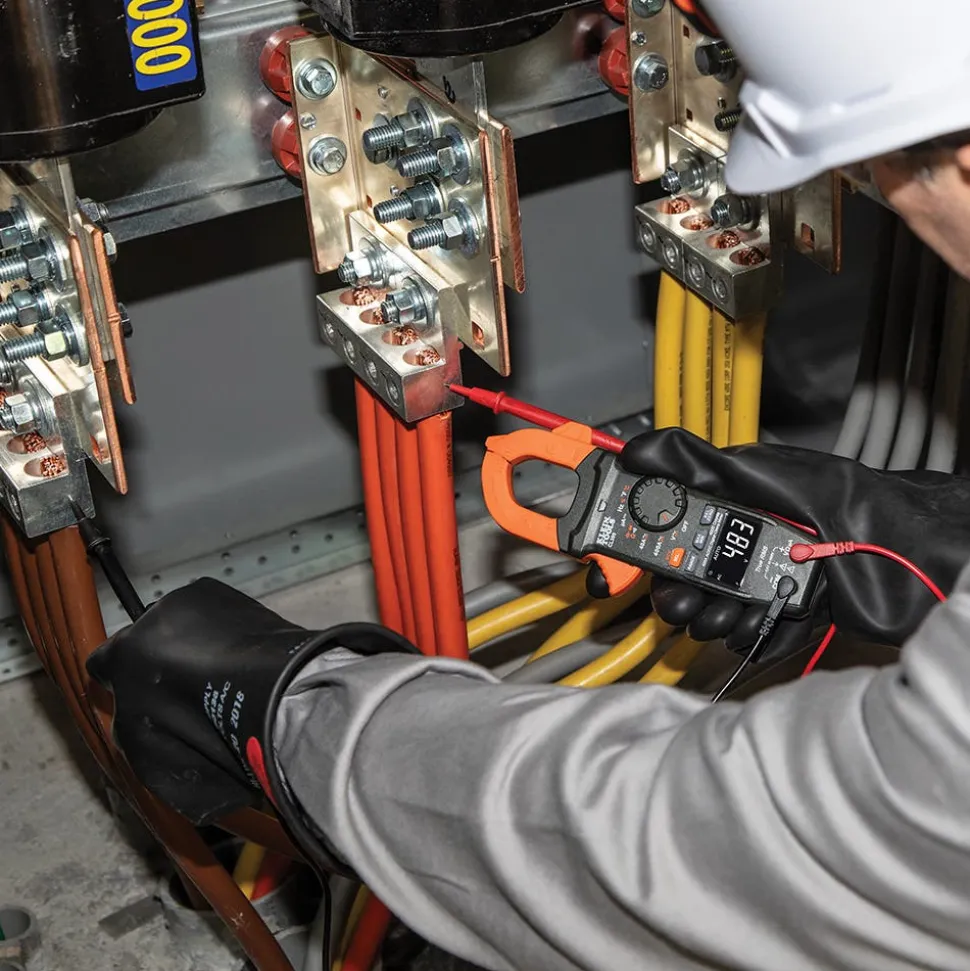

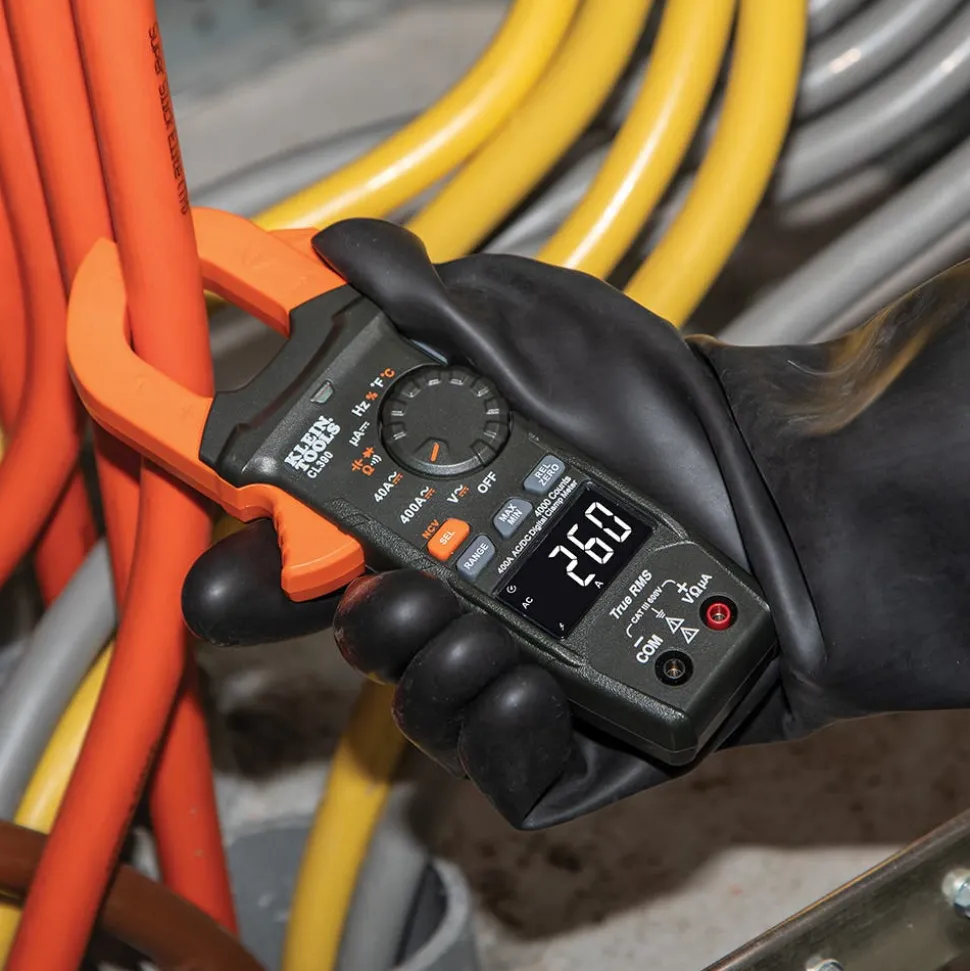

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.
FEATURES:
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Non-contact voltage tester integrated into the clamp jaw
- High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
SPECIFICATIONS:
| Special Features: | Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT |
| Display | 4000 Count Reverse Contrast LCD |
| Voltage | 600 V AC/DC |
| Current | 400 A AC/DC |
INCLUDES:

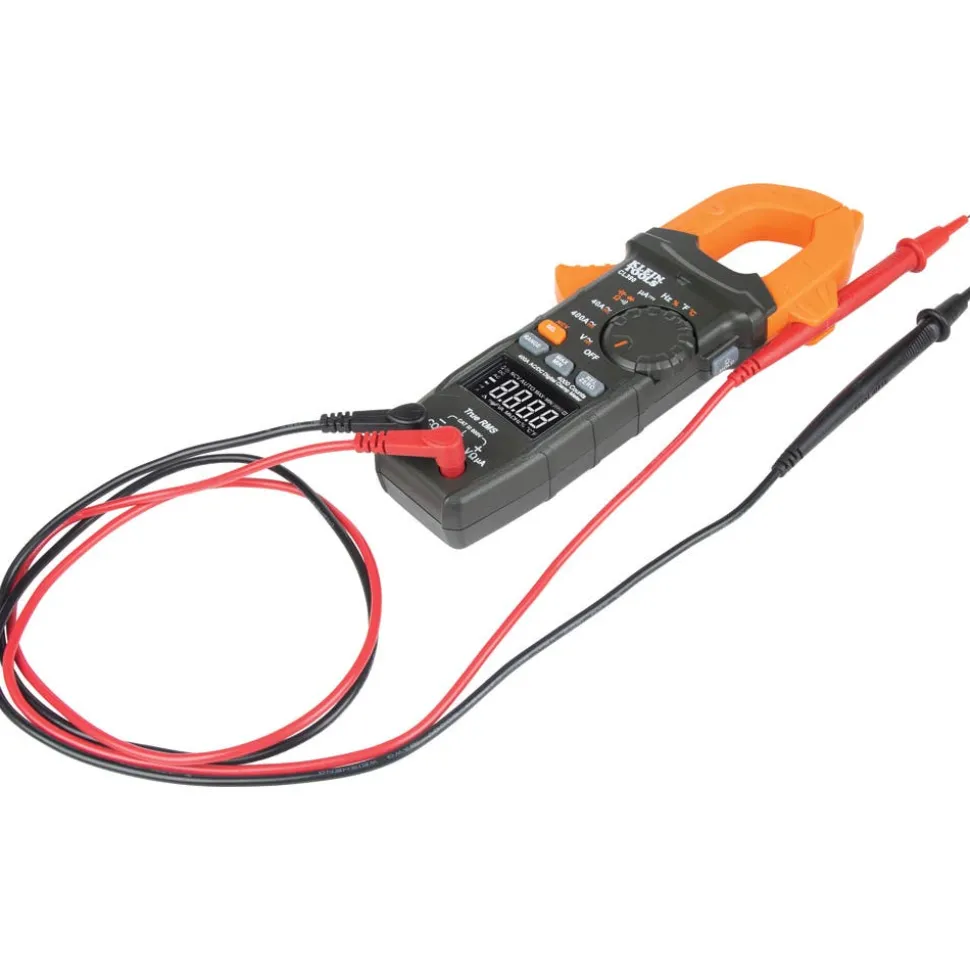

(1) AC/DC Digital Clamp Meter
(1) Carrying Case
(1) Instructions
Test Leads
(1) Thermocouple
Batteries
| Material | ABS/Electronics |
|---|---|
| Display | 4000 Count Reverse Contrast LCD |
| Current | 400 A AC/DC |
| Item Width | 3.5120 in |
| Standard | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |
| Auto-Power Off | Yes |
| Capacitance | 4000 µF |
| Application | Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple |
| DC Polarity Indicator | Yes |
| DC Voltage | 600 V |
| Weight | 11 oz (314 g) |
| Overall Width | 3.5″ (8.9 cm) |
| Frequency | 10 Hz to 60 kHz for 8 V to 220 V AC RMS |
| Jaw Size | 1.6″ (4.1 cm) |
| Voltage | 600 V AC/DC |
| Temperature Range | -40° – 1832°F (-40° – 1000°C) |
| Item Depth | 8.4500 in |
| Replacement Parts | 69401 |
| AC Voltage | 600 V |
| Item Weight | 0.5160 lbs |
| Ohms (Resistance) | 40 MΩ |
| Included | Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
| DC Micro-Amp | 200 µA |
| Overall Height | 1.5″ (3.8 cm) |
| Drop Protection | 6.6′ (2 m) |
| Item Height | 1.5060 in |
| Type | AC/DC Current TRMS Clamp |
| Accessories | 69142, 69409, 69417, 69410, 69445, 69028 |
| Overall Length | 8.45″ (21.5 cm) |
| Batteries | 3 x AAA |
| Functions | TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature |
| OPT SKU | KLN-CL390 |
|---|---|
| MPN | CL390 |
| UPC/GTIN | 092644692871 |
| Product Type | Voltage Testing & Measuring |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools |
| Power Method | Cordless |
| Shipping Weight | 0.69 |
