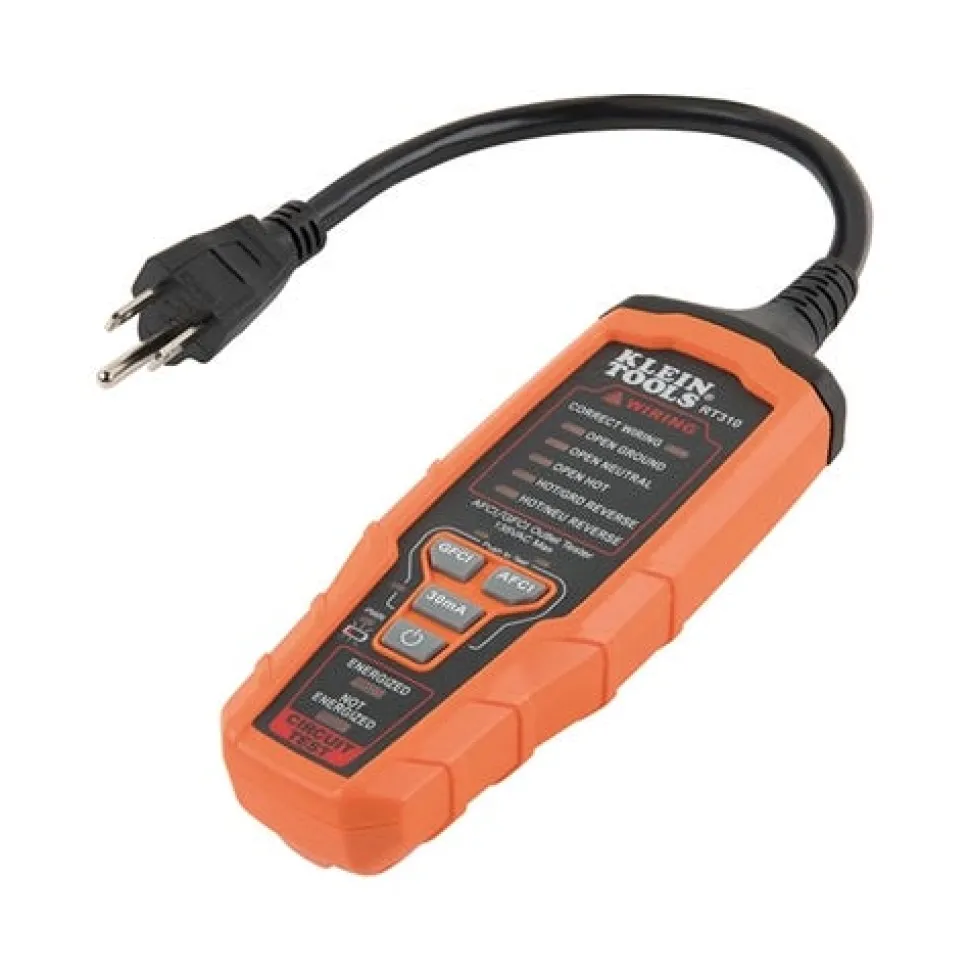

Klein AFCI /GFCI Outlet Tester RT310

Klein

AFCI /GFCI Outlet Tester RT310

RT310 is an electrical tester that tests the wiring condition at an electrical outlet; and inspects and checks AFCI and GFCI devices. It is designed for use with North American 120V electrical outlets.

FEATURES:

• Detects the most common wiring faults in standard; AFCI; and GFCI electrical outlets.
• Test AFCI devices by simulating arc fault conditions.
• Test GFCI devices by simulating ground fault conditions.
• Capable of detecting a dual-open wiring fault with simultaneous open neutral and open ground wires (patent pending technology).
• Tester delivers clear visual indication of the wiring condition at the electrical outlet.
• Designed to test North American-style grounded electrical outlets in 120V AC circuits (incorporates a three-pin plug).
• Electrical plug is on a 10-Inch (254 mm) flexible electrical cord to access electrical outlets in difficult to reach locations.
• Low battery indicator and easily accessible battery compartment; Uses 3 x 1.5V AAA alkaline batteries (included).
• Powers off automatically after approximately 2 minutes of non-use to conserve battery life.
• Built to withstand a 6.6-Foot (2 m) drop.
• CATIII 135V safety rating.
• Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building’s low-voltage MAINS installation.

SPECIFICATIONS:

Type	AFCI/GFCI Electrical Battery Operated Outlet Tester
Application	Electrical outlet tester that tests for wiring faults in electrical outlets
Material	PC/ABS Housing with Electronic Components
Drop Protection	6.6′
AFCI	Yes
GFCI	Yes
Voltage	120V AC in 3-Wire Grounded Electrical Outlet
Batteries	3 x 1.5V AAA Batteries
Standard	CATIII 135V
Overall Length	7.4
Overall Height	1.3″
Overall Width	2.3″
Weight	8.5 oz

INCLUDES:

• (3) 1.5V AAA Alkaline Batteries

“
