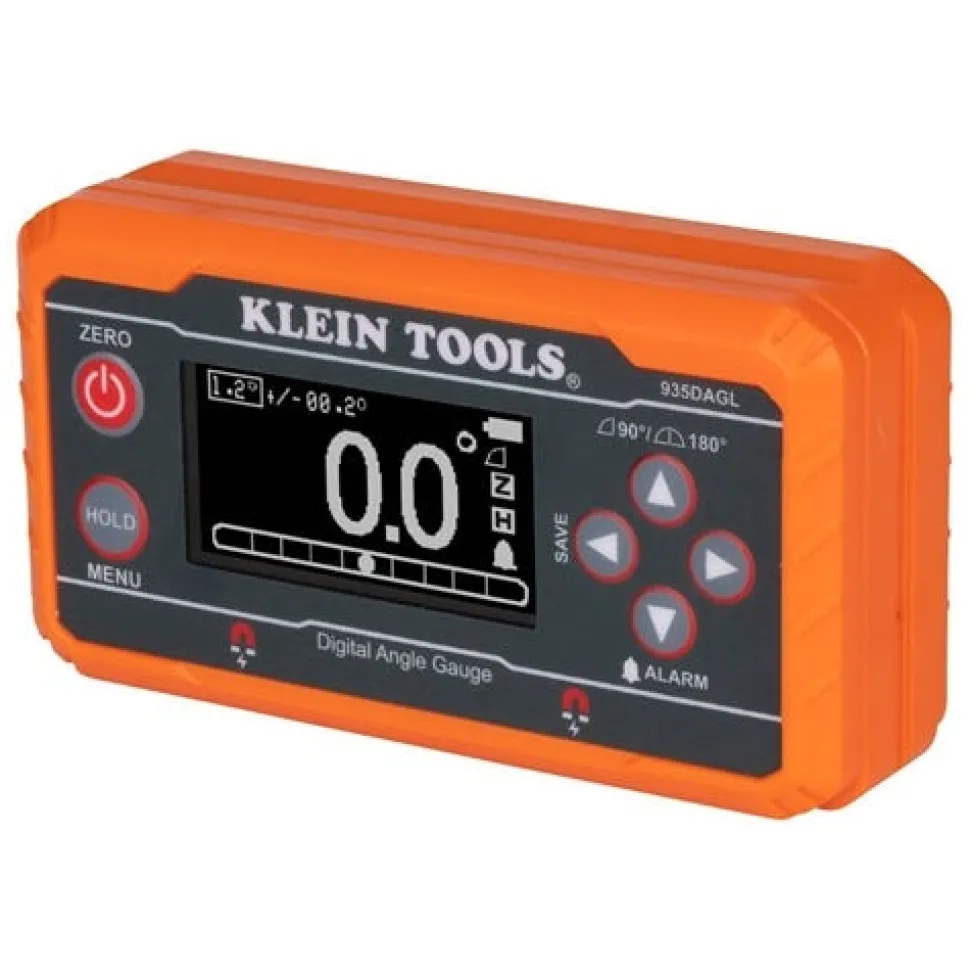

Klein Digital Level with Programmable Angles 935DAGL

Klein

Digital Level with Programmable Angles 935DAGL

The Klein Tools 935DAGL is a digital level that detects and measures angles. It can measure ranges from 0 to 90° or 0 to 180° with a display that rotates when used in vertical or horizontal orientations. A target angle with audible alarm can be set; allowing the user even greater efficiency. When laid flat; it will function as a bullseye level. Set zero reference at any angle. LCD menu screen displays in English; Spanish; or French.

FEATURES:

• Digital level measures 0 to 90-Degree; 0 to 180-Degree; or dual axis bullseye ranges.
• Pre-programmed commonly used target pitches for efficiency and ease-of use: 1/8-Inch; 1/4-Inch; 3/8-Inch and 1/2-Inch per foot.
• Easily achieve target angle by setting an audible alarm; LCD will change color as a visual indicator of reaching the set target angle.
• Use in bullseye orientation to accurately determine X- and Y-axis.
• Display auto-rotates when used in horizontal or vertical orientation.
• High visibility reverse contrast display improves visibility in dimly lit work environments.
• Strong magnetic base attaches to ferromagnetic surfaces.
• V-Groove edges enable optimal alignment on conduit and pipes for bending and alignment.
• Language selectable menu for English; Spanish; and French.

SPECIFICATIONS:

Application	Measures Angles; Use as a Digital Level
Special Features	Audible Alarm; Magnetic Base; V-Grooves on Top and Bottom
Material	ABS Plastic Housing and Electronic Components
Magnet Type	Permanent Rare Earth
Accuracy	Vertical and Horizontal Orientation: +/- 0.2°; Bullseye Orientation: +/- 0.5°
Drop Protection	6.6′ (2 m)
Ingress Protection	IP42 Dust and Water Resistant
Low Battery Indicator	Yes
Batteries	2 x AA
Dimensions (LxWxH)	4.57 x 1.36″ x 2.48″
Tool Weight	7 oz (200 g)

INCLUDES:

• Soft carrying case
• 2 x AA batteries
• Instruction Manual

“
