Klein Rechargeable Thermal Imager TI250

Klein

Rechargeable Thermal Imager TI250

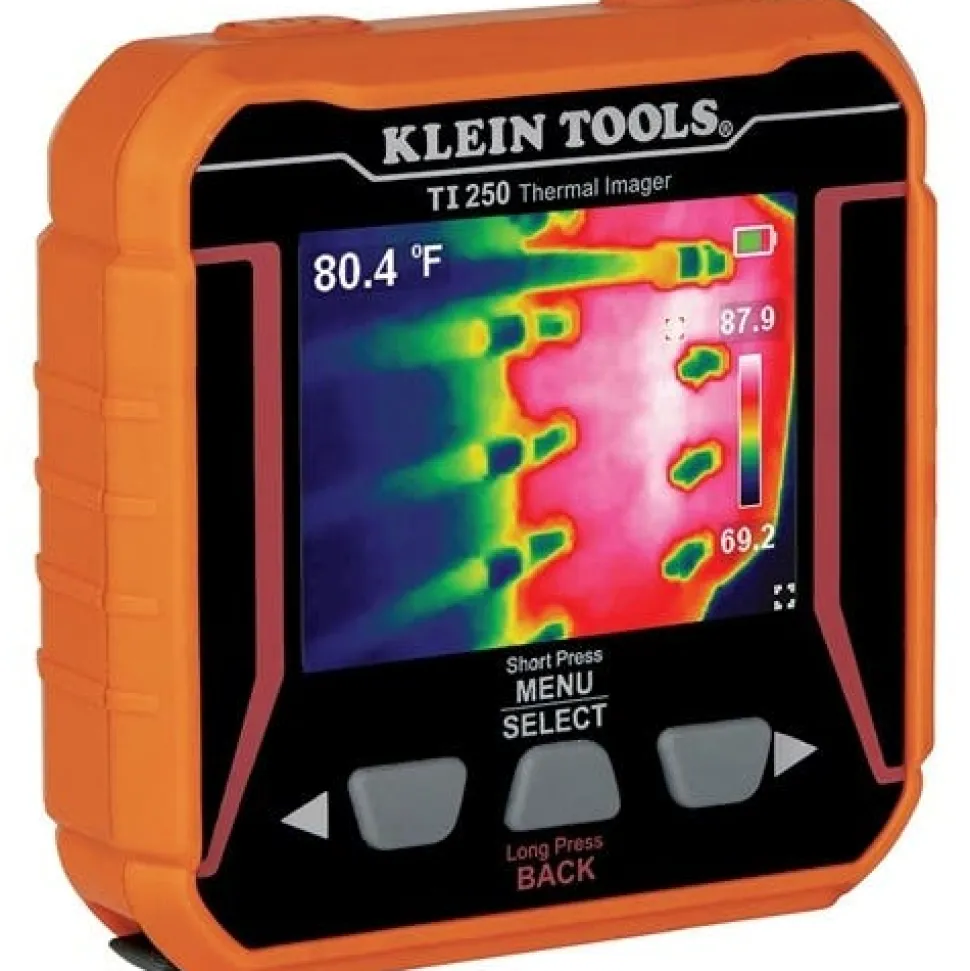

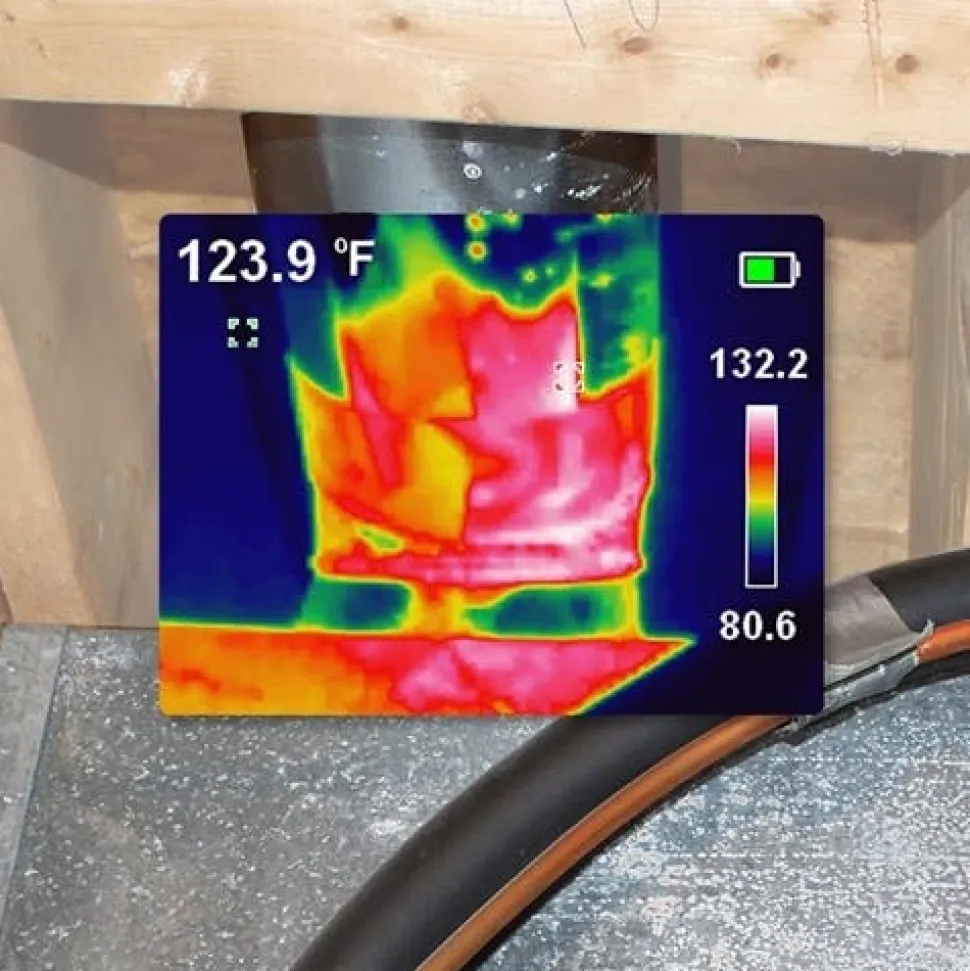

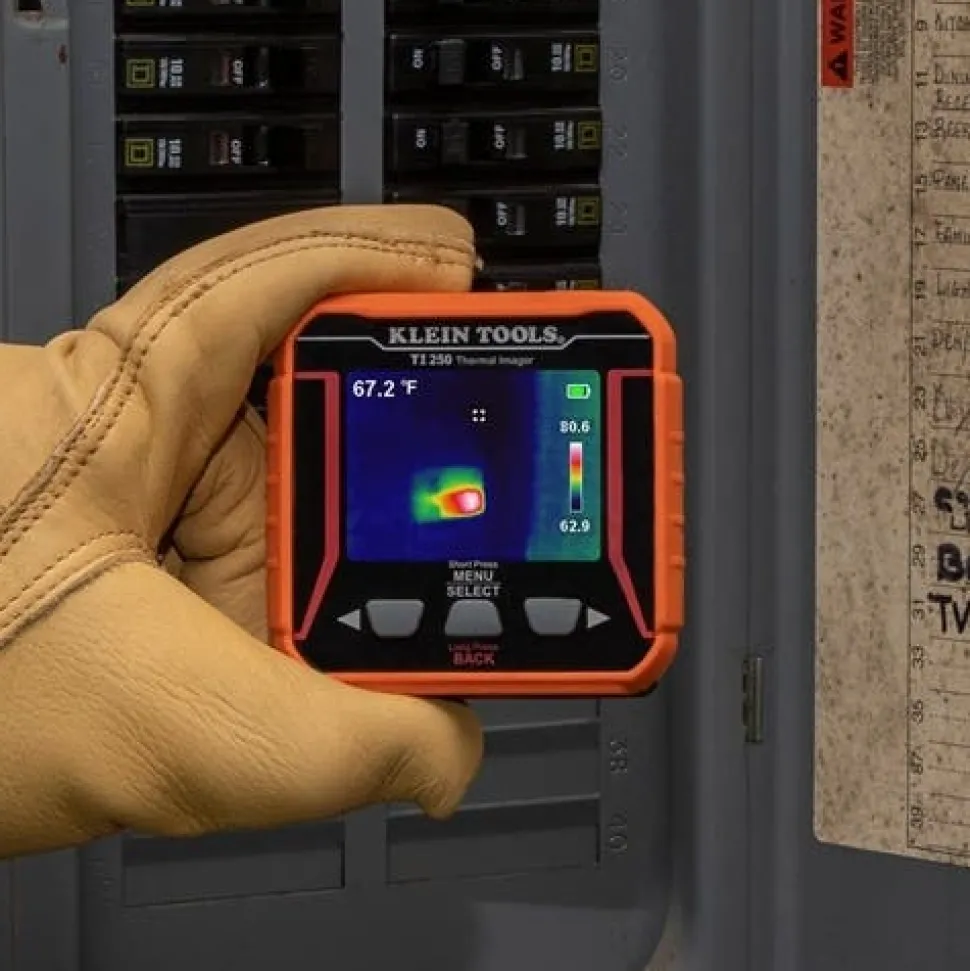

The Klein Tools TI250 is an easy-to-use; USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 10;000 pixels and your choice of three color palettes. The meter provides high and low temperature points; crosshairs to pinpoint specific temperatures; and options for temperature alarms. The addition of a microSD® Card (optional) allows the meter to capture and store images for reporting.

FEATURES:

• Thermal Imager has over 10;000 pixels to troubleshoot hot and cold spots
• Adjustable emissivity from 0.10 to 0.99

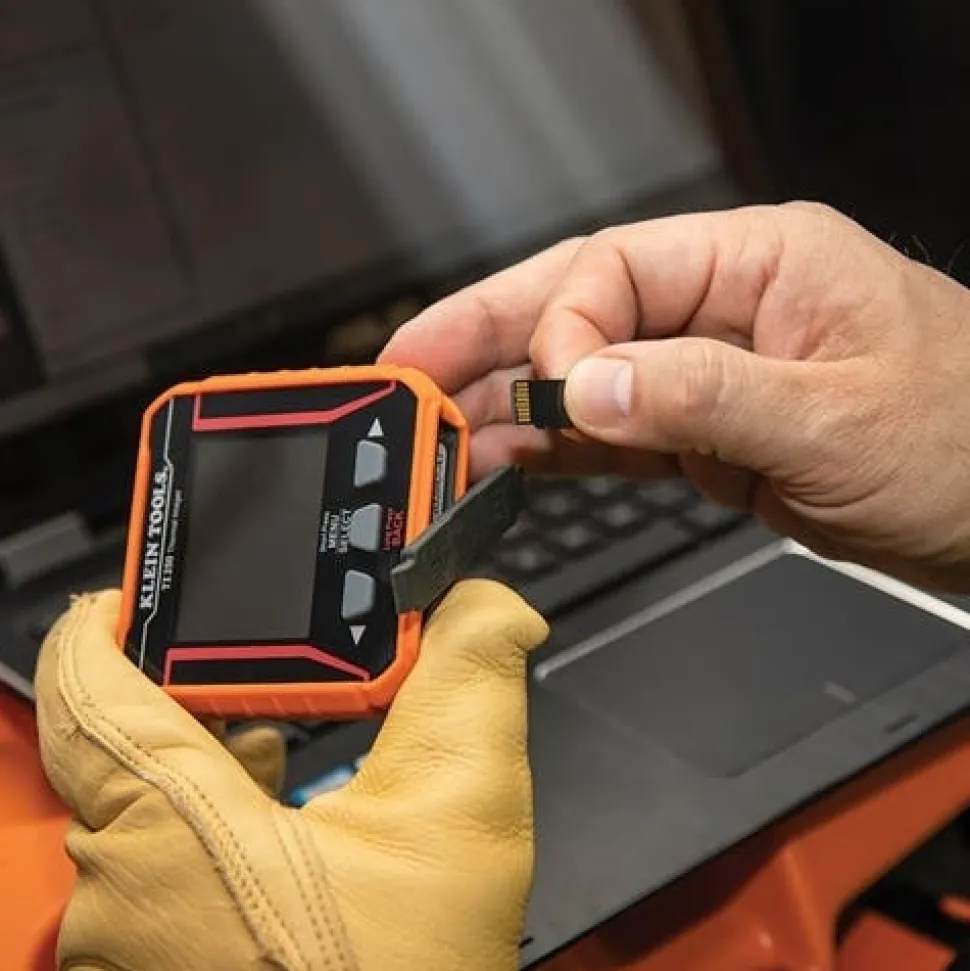

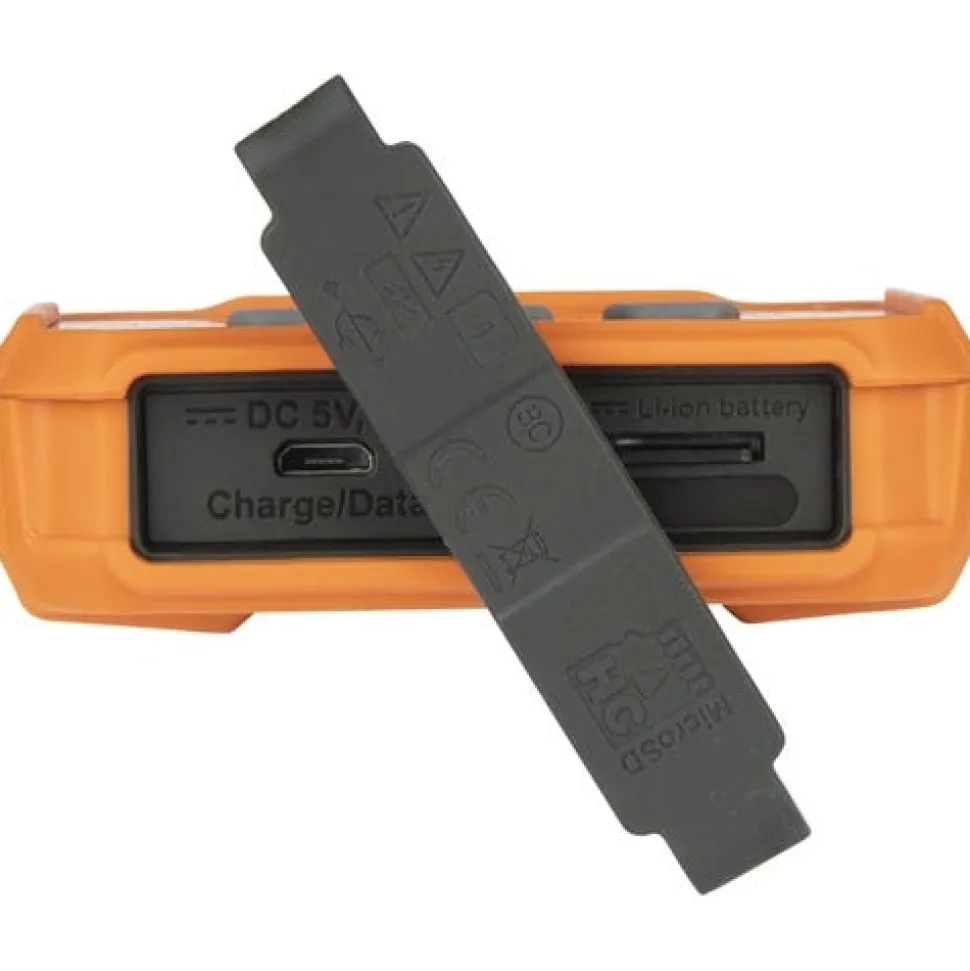

• Store and share images with optional microSD® Card
• User selectable high and low temperature alarms from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius)
• Select color palettes to best capture the event
• Rechargeable lithium-ion battery

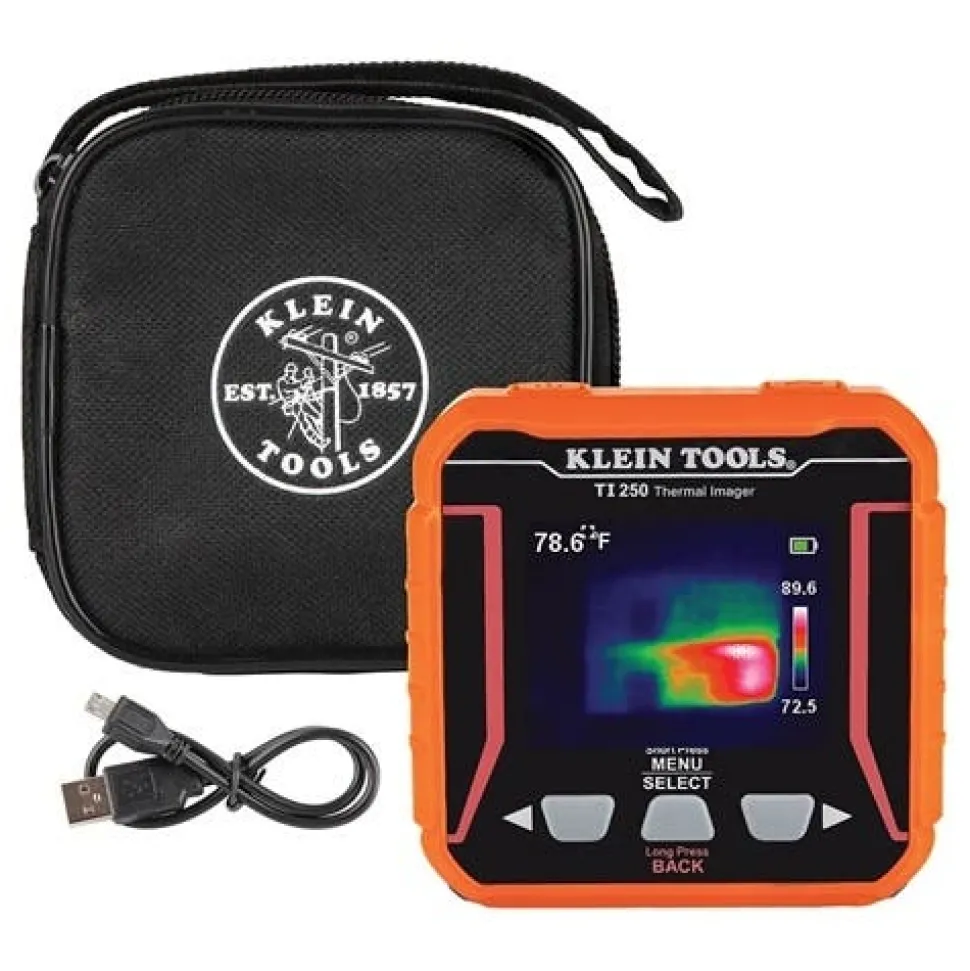

• Includes thermal imager; micro-USB charging cable; carrying case; and instructions

SPECIFICATIONS:

Type:	Thermal Imager
Application:	View Hot and Cold Spots For Instant Troubleshooting
Special Features:	High and Low Temperature Points; Crosshairs to Pinpoint Specific Temperatures; Options for Temperature Alarms; 3 Color Pallets
Display:	2.4” (6.1 cm) TFT LCD
Display Resolution:	10;800 Pixels
Sensor Type:	VOX Micro Bolometer
Sensor Resolution:	10;800 Pixels
Thermal Sensitivity:	Less Than 60mK
Temperature Range:	-4° to 752°F (-20° to 400°C)
Accuracy:	At More Than 212°F (100°C): +/- 2° or 2% (Whichever is Greater); At Less Than 212°F (100°C): +/- 3° or 3% (Whichever is Greater)
Field of View:Horizontal:	50°; Vertical: 50°
Laser Sighting:	Yes
Emissivity:	0.10 to 0.99 Adjustable
Color Pallets:	Ironbow; Rainbow; and Gray
Photo Capture:	Yes
Maximum Frames per Second:	Less Than 9Hz
Memory:	MicroSD® Card (not included)
Batteries:	Lithium-Ion
Included:	Includes Thermal Imager; Micro-USB Charging Cable; Carrying Case; and Instructions
Overall Length:	3.1” (8.0 cm)
Overall Width:	1” (2.5 cm)
Overall Height:	3.1” (8.0 cm)
Material:	ABS/PC; Electronic Components
Standards:	CE and BC
