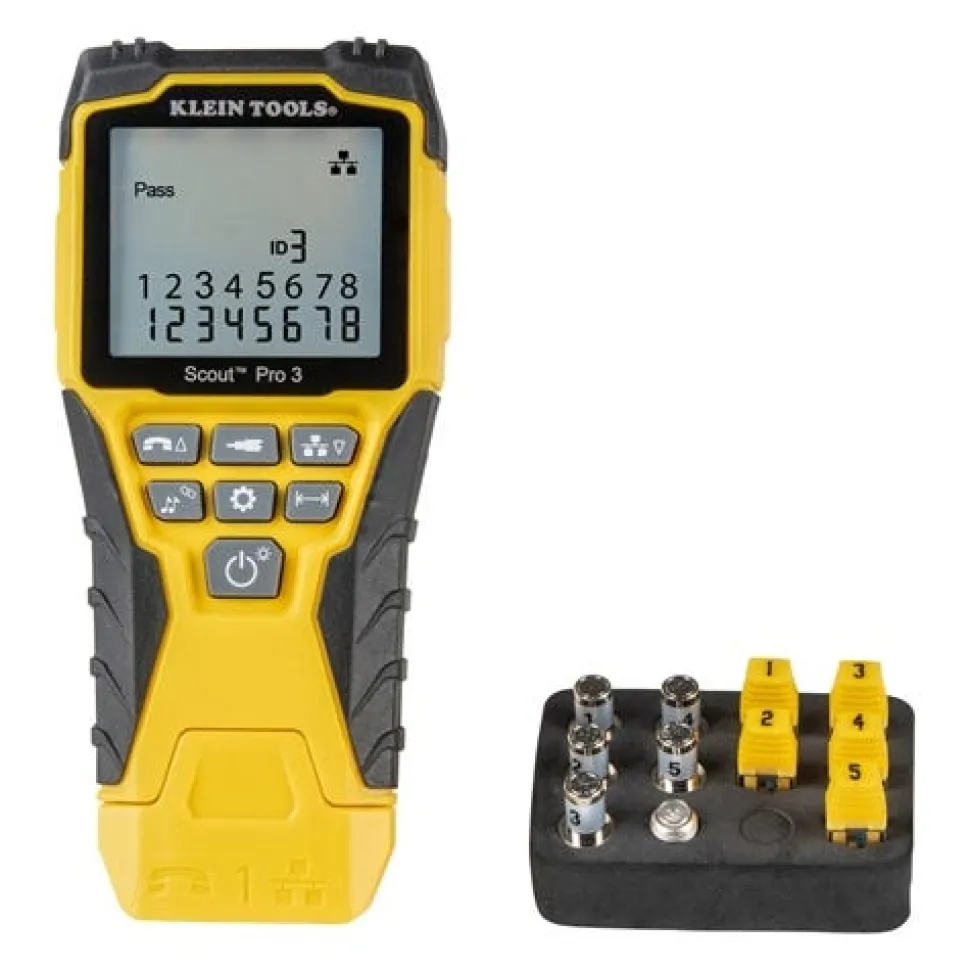

Klein Scout Pro 3 Tester Starter Kit VDV501-851

Klein

Scout Pro 3 Tester Starter Kit VDV501-851

Klein Tools has expanded the Scout Pro 3 line of testers with the addition of a new tester that includes Power over Ethernet (PoE) functionality. This versatile tester is available with remote options to fit users’ needs and designed to make sure professionals have everything they need to test VDV cables.

FEATURES:

• Cable tester tests voice (RJ11/12); data (RJ45) and video (coax F-connector)_ terminated cables with clearly defined results.
• Measure cable length up to 2000 feet (610 m).
• Test for Open; Short; Miswire or Split-Pair faults.
• Backlit LCD screen displays cable length; wiremap; cable ID and test results.
• Trace cables; wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately).
• Hub blink mode to identify port location on a hub or a switch.
• LanMap and CoaxMap Location Remotes (5 each) map and ID multiple cable runs in a single step.
• Includes voltage warning; shield detection; auto power off; low battery indicator and a self-storing remote.
• Auto Power-off feature to conserve battery life (9V included).

SPECIFICATIONS:

Overall Measurements (LxWxH):	7” (17.8 cm) x 1.25” (3.2 cm) x 3” (7.6 cm)
Cable Type:	DATA:; Shielded or Unshielded; CAT3; CAT5E; CAT6; CAT6A; CAT7; COAXIAL: RG59; RG6/6Q
Material:	Plastic and Metal
Batteries:	9V Alkaline
Battery Life:	50 Hours Active
Connection & Adapter Types:	RJ11; RJ12; RJ45; Coax F
Faults Detected:	Open; Short; Miswire

INCLUDES:

• (1) Scout Pro 3 Tester
• (1) Self-storing remote
• (5) LanMap RJ45 locator remotes
• (5) CoaxMap F-connector locator remotes
• (1) Coax F-connector; manual and 9V battery
