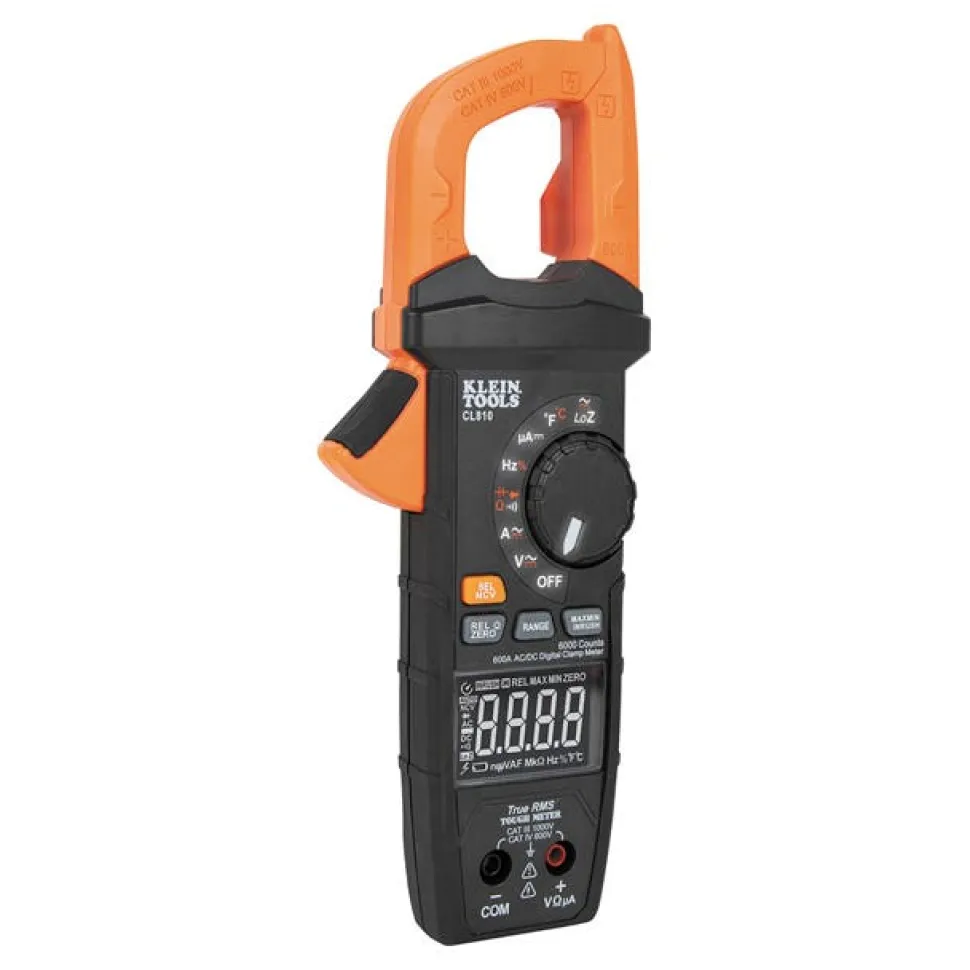

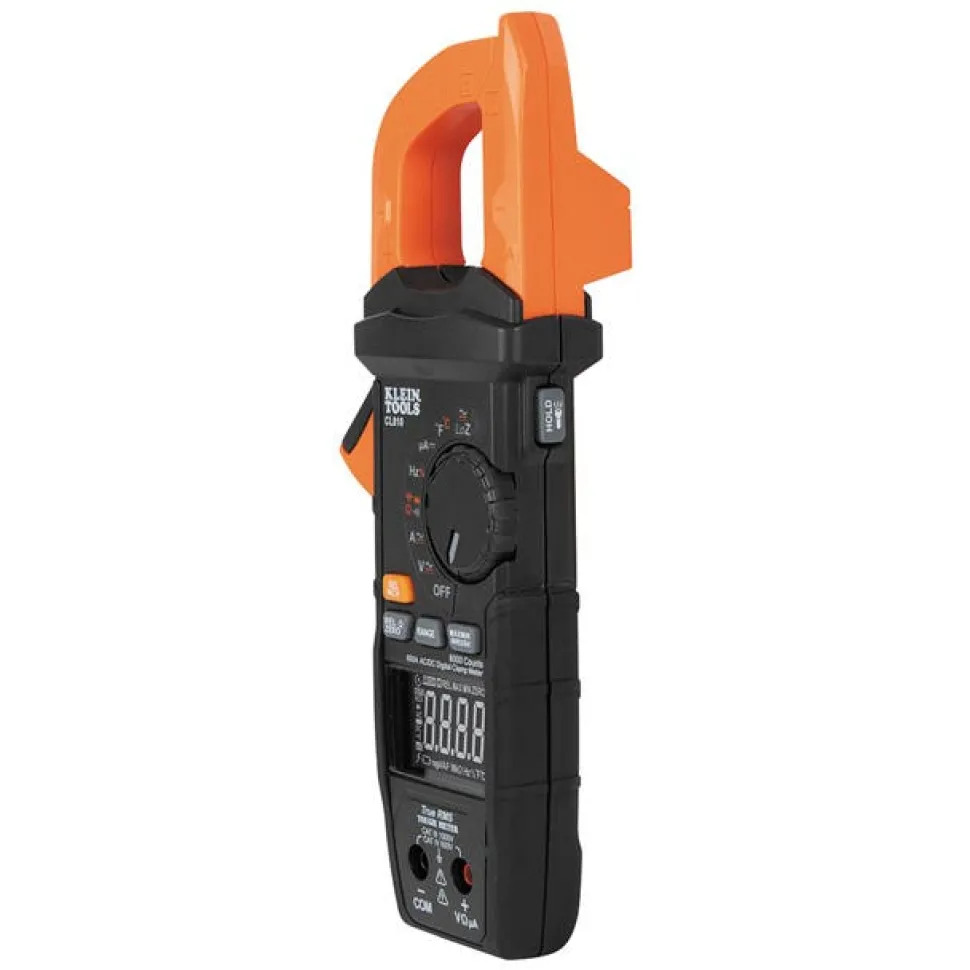

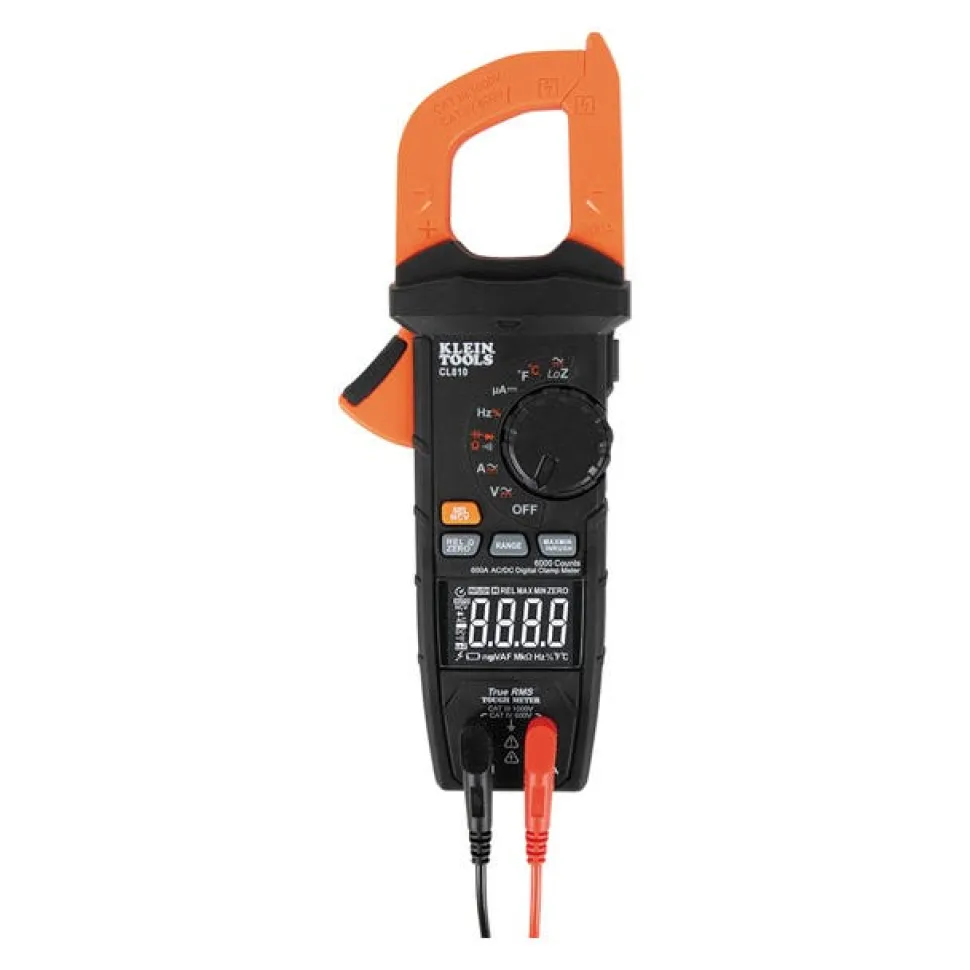

Klein Tools 600A AC/DC Auto-Ranging Digital Pro Clamp Meter with Worklight CL810
$102.99
Additional Details
Klein Tools CL810 Clamp Meter with Flashlight delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, inrush, and capacitance, all with True RMS precision. It features diode testing and LoZ mode to eliminate ghost voltages. Temperature is taken via thermocouple. Features NCV detection with escalating audio-visual alert. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.
Features
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush
- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
- Illuminated dial ensures clear visibility and easy reading, even in low-light environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
- Integrated worklight illuminates the work area for improved visibility in dark or confined spaces
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Rated IP40 for ingress protection, withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

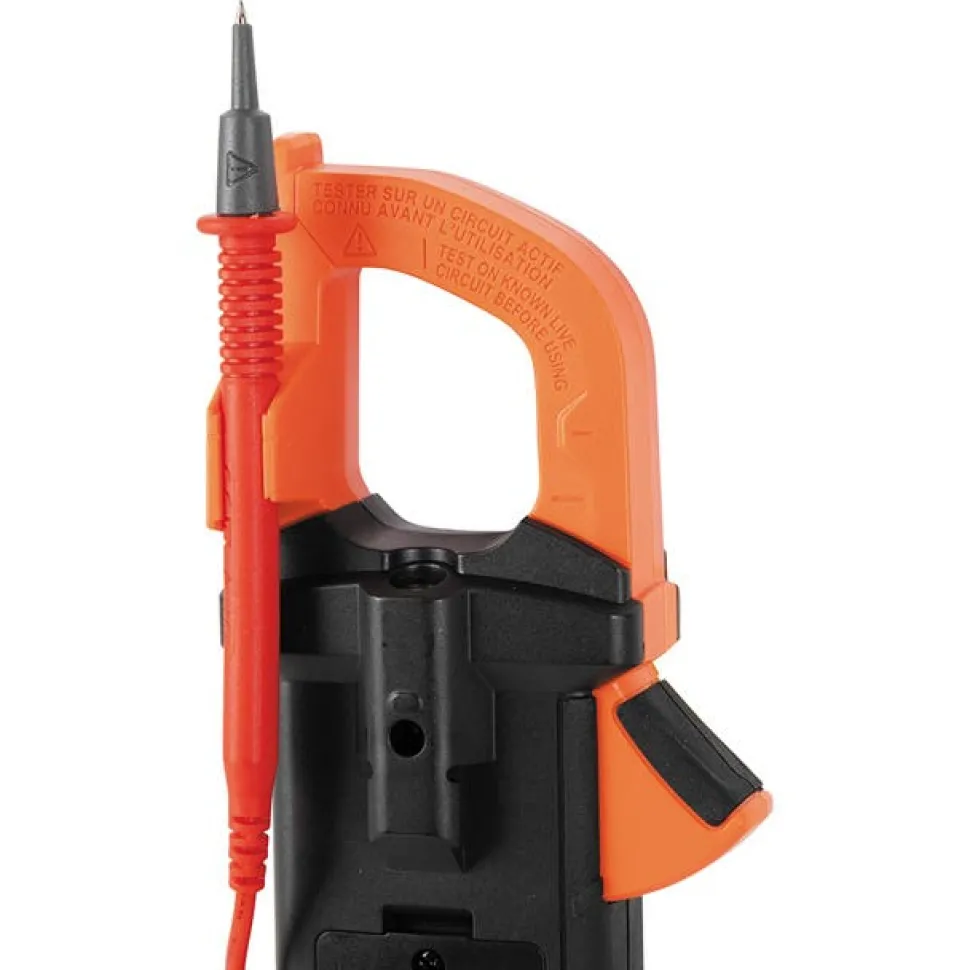

- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Manufacturer Specifications
| Ingress Protection | IP40 |
|---|---|
| AC Voltage | 1000V |
| Auto-Power Off | Yes |
| Special Features | Transflective Reverse-Contract Display; Lighted Dial; Built-in Worklight; Built-in Lead Holder |
| Temperature Range | 40° to 1832° F (-40° to 1000° C) |
| Jaw Size | 1.4″ (3.6 cm) |
| DC Voltage | 1000V |
| DC Micro-Amp | Yes |

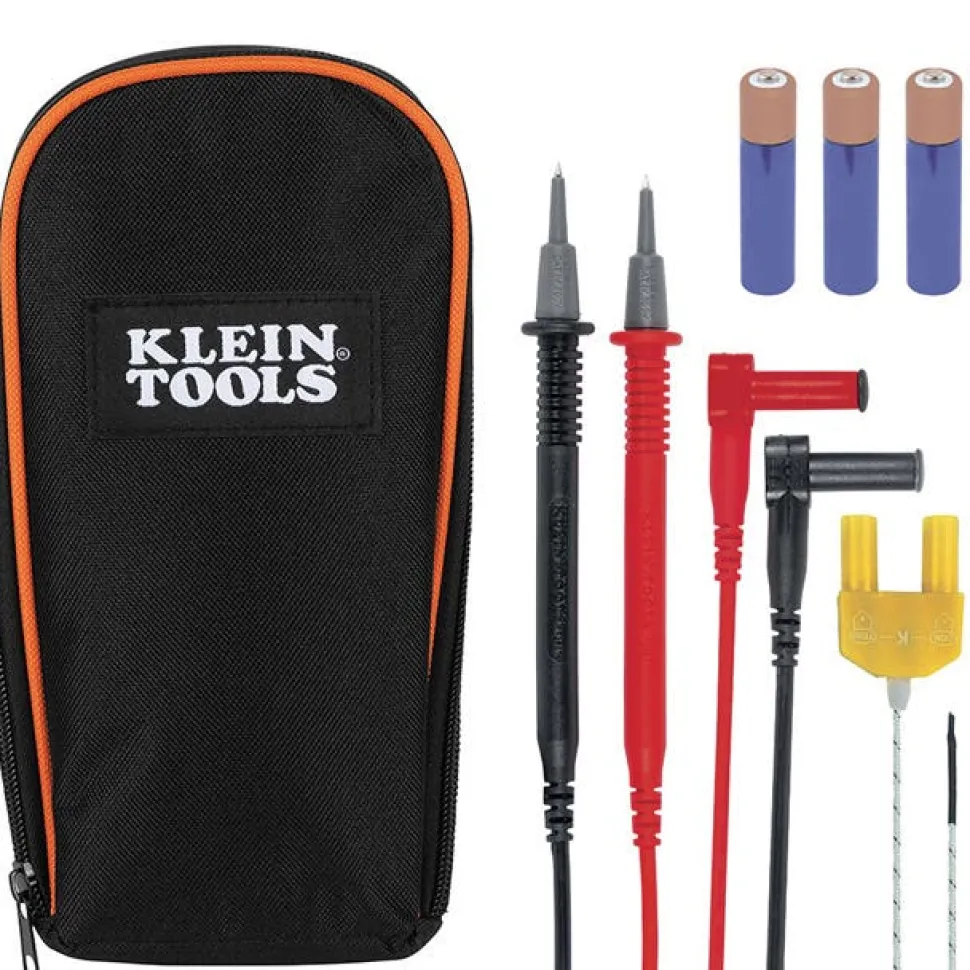

| Included | Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries |
| Application | Variety of Electrical Diagnostic and Troubleshooting Applications |
| DC Polarity Indicator | Yes |
| Material | ABS/Electronics |
| Capacitance | 6000µF |
| Drop Protection | 6.6′ (2 m) |
| Voltage | 1000V AC; 1000V DC |
| Type | Pro Clamp Meter |
| Functions | AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability |
| Ohms (Resistance) | 60MΩ |
| Frequency | 1Hz – 500 KHz |
| Standard | CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA |
Specifications
| OPT SKU | KLN-CL810 |
|---|---|
| MPN | CL810 |
| UPC/GTIN | 092644694486 |
| Product Type | Voltage Testing & Measuring |
| Power Method | Cordless |
| Shipping Weight | 1.00 |
