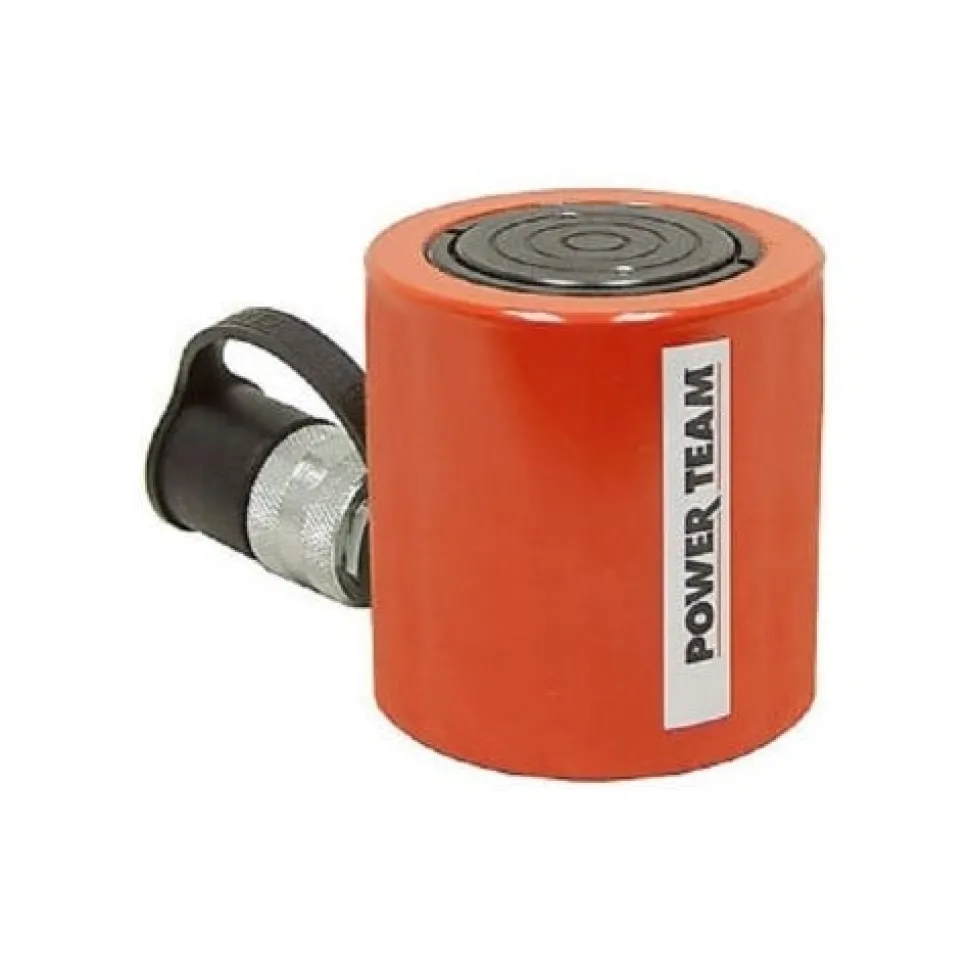

Power Team 10 Ton Hydraulic 1.5" Single Acting Cylinder Spring Return Shorty RSS101

Power Team 10 Ton Hydraulic 1.5″ Single Acting Cylinder Spring Return Shorty RSS101

Original price was: $760.00.Current price is: $134.89.

SKU: SKUE7DCfsnrqI Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
Power Tech plated piston rods and gland nuts resist scoring and corrosion.
Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
Grooved piston top keeps load from sliding.
Cylinders can be dead-ended at full capacity.
Removable carrying handles on 100 ton and 250 ton models.
Order No.: RSS101
Cyl Cap. (tons) : 10
Stroke (in.) : 1 1/2
Oil Cap. (cu. in.) Push: 3.4
Oil Cap. (cu. in.) Return:
Bore Dia. (in.) : 1 11/16
Cylinder Effective Area (sq. in.) Push: 2.24
Internal Press at Cap. (psi) Push: 8;943
Tons at 10000 (psi) Push: 11.2
Weight (lbs.) : 6
Retracted Height (in.) : 3 1/2
Extended Height (in.) : 5
Outside Dia. (in.) : 2 3/4
Base to Port (in.) : 5/8
Piston Rod Dia. (in.) : 1 1/2

Specifications

More Information
OPT SKU	PTRSS101
MPN	RSS101
UPC/GTIN	662536003551
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	1-1/2″
Tonnage	10-Ton
Shipping Weight	10.00
