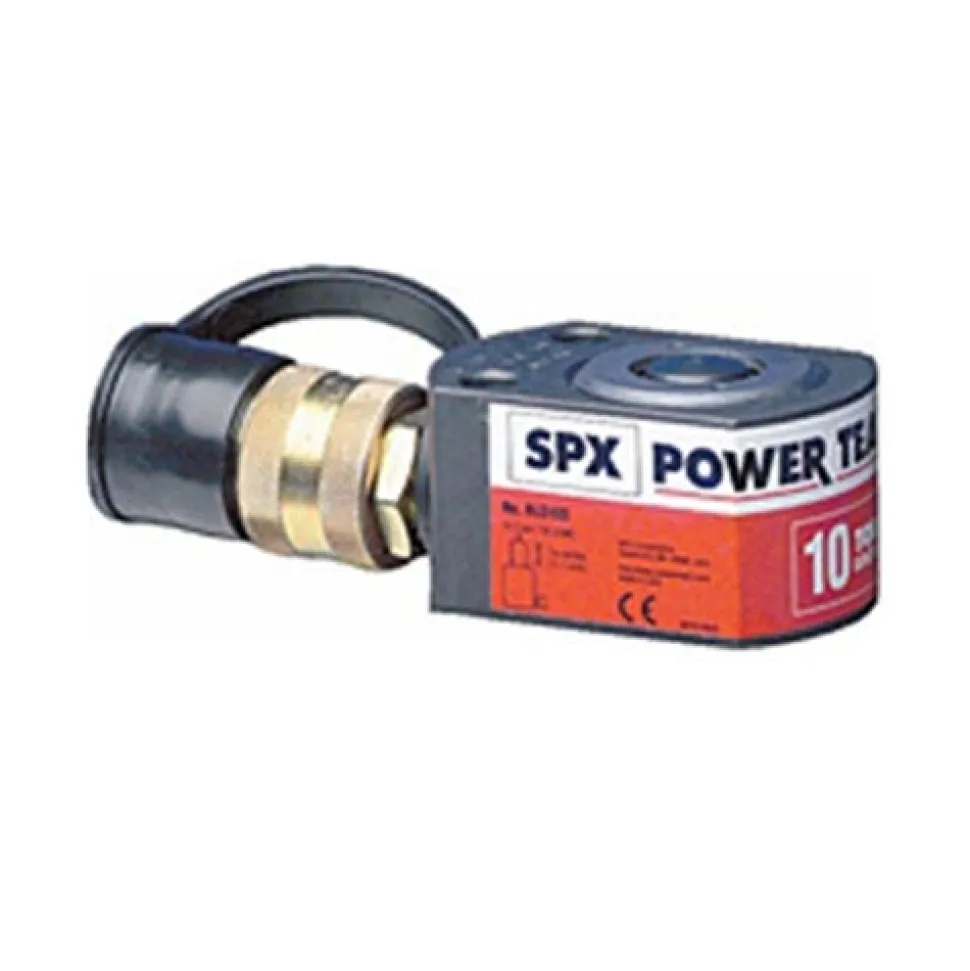

Power Team 10 Ton Hydraulic 7/16″ Low Profile Spring Return Cylinder RLS100

• Power Team
• IDEAL FOR CONFINED AREAS FROM 1 5/8 TO 4″ CLEARANCE.
• Cylinder body; piston and gland nut Power Tech treated for corrosion and abrasion resistance.
• Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of offcenter loading.
• Unique heavy duty spring provides fast piston return.
• A 9796 3/8″ NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8″ coupler which is not angled). Oil ports are 3/8″ NPTF.
• Couplers on all cylinders; except RLS50; are angled upward for extra clearance.

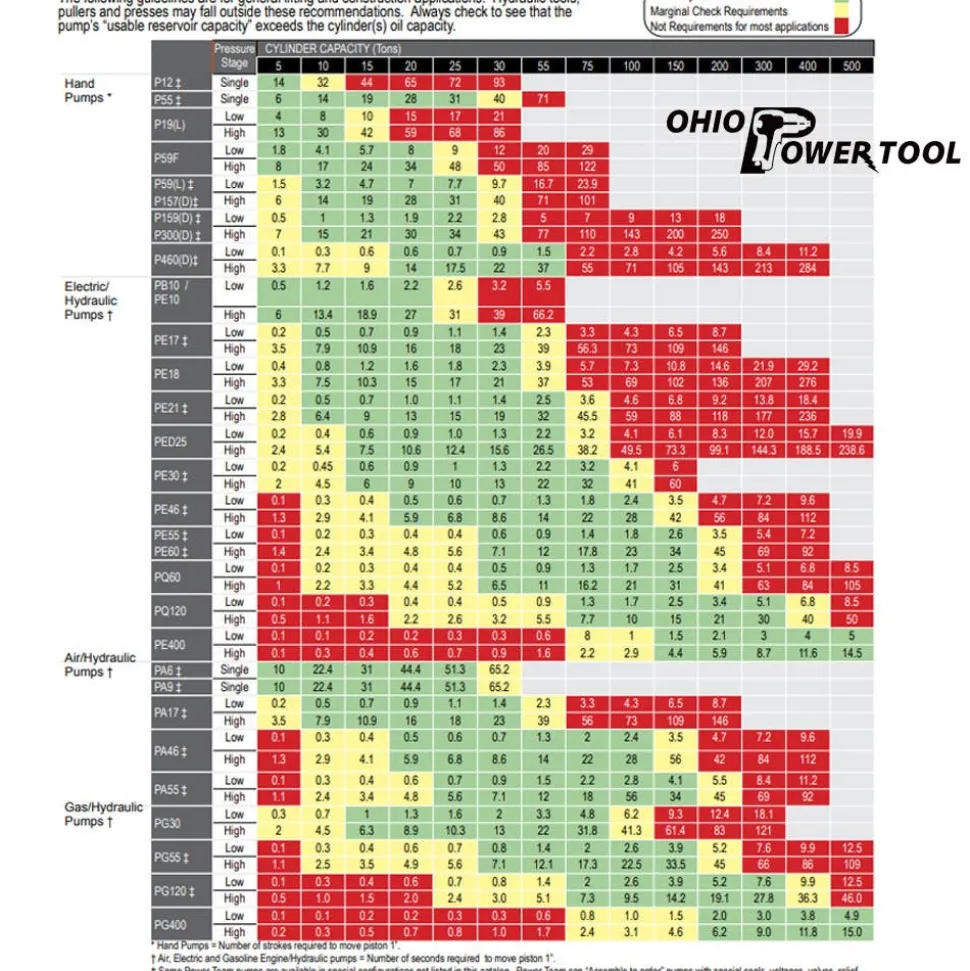

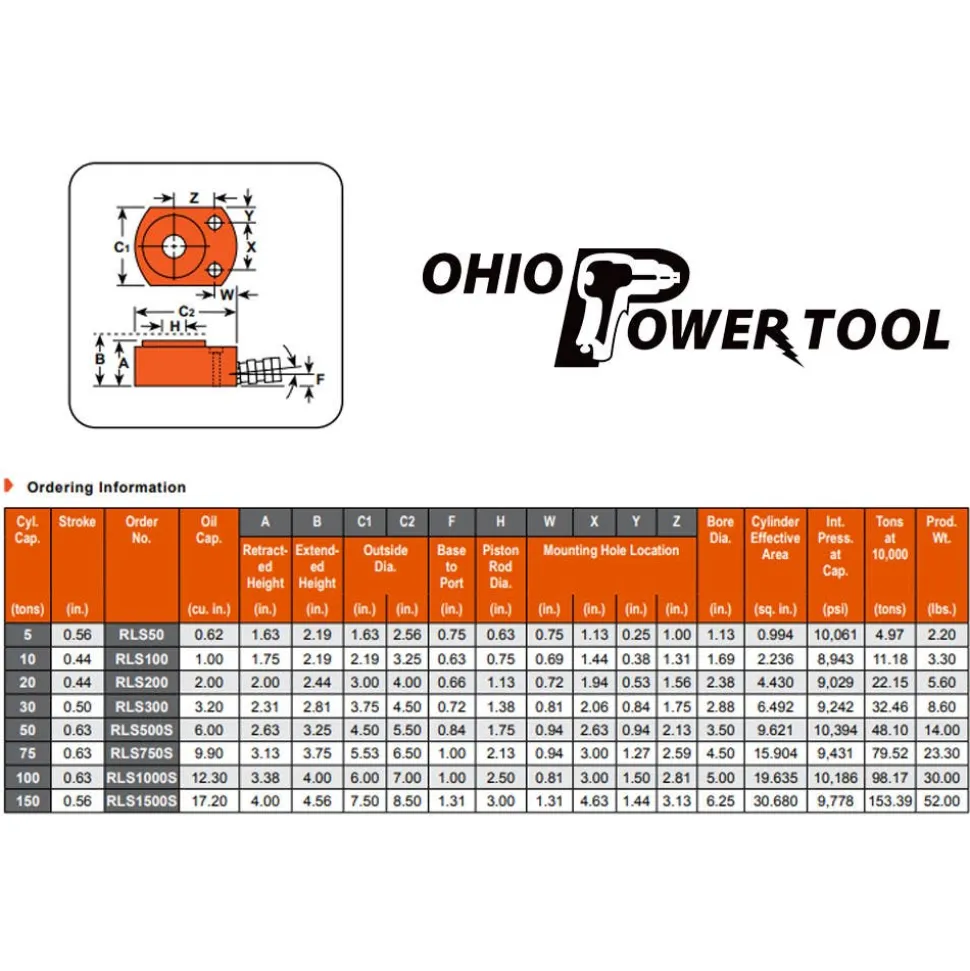

• Order No. : RLS100
• Cyl. Cap. (tons): 10
• Stroke (in.) :    7/16
• Oil Cap. (cu. in.): 1
• Bore Dia. (in.): 1 11/16
• Cyl. Eff. Area (sq. in.): 2.236
• Int. Press at Cap. (psi): 8;943
• Tons at 10000 (psi): 11.18
• Weight (lbs.) : 3.3
• Order No. : RLS100
• Retracted Height : 1 3/4
• Extended Height : 2  3/16
• Outside Dia. : 2 3/16 x 3 1/4
• Base to Port :    5/8
• Piston Rod Prod. Dia.:    3/4

“
