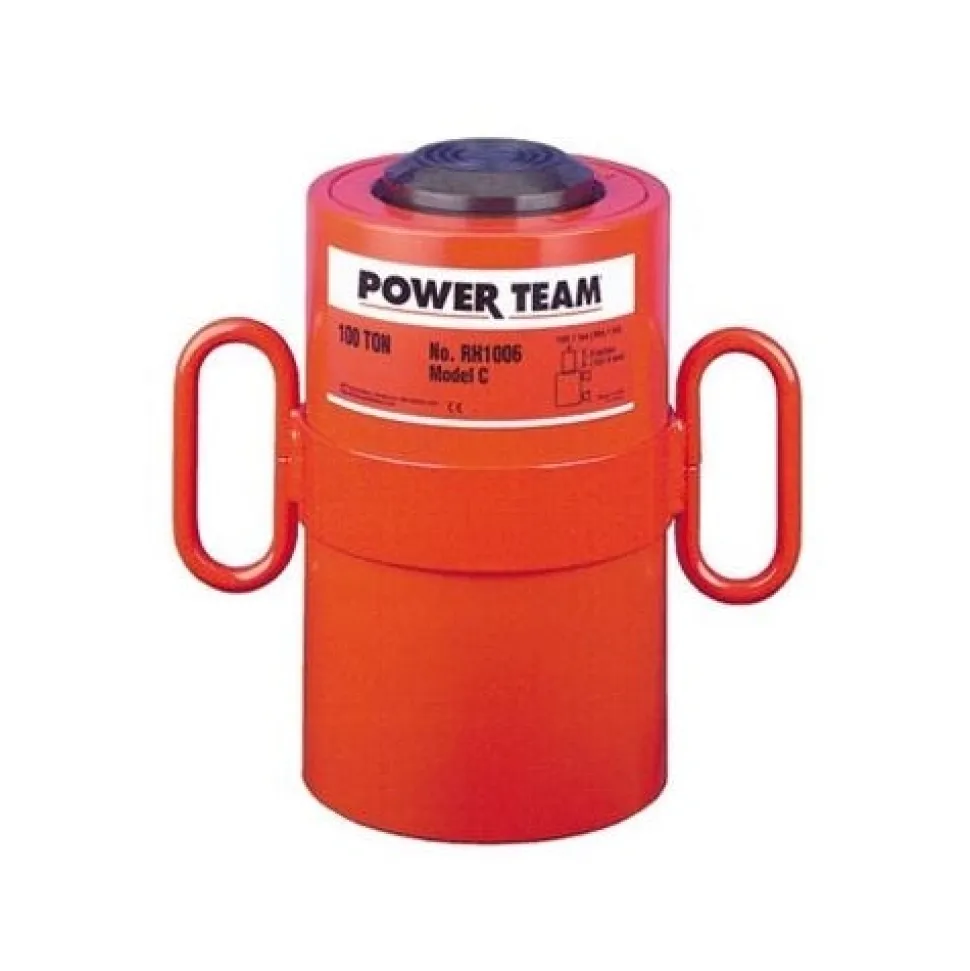

Power Team 100 Ton Hydraulic 1-1/2″ Double Acting Cylinder Center RH1001

Power Team SPX

Power Team 100 ton hydraulic 1-1/2 double acting cylinder center hole RH1001

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers.

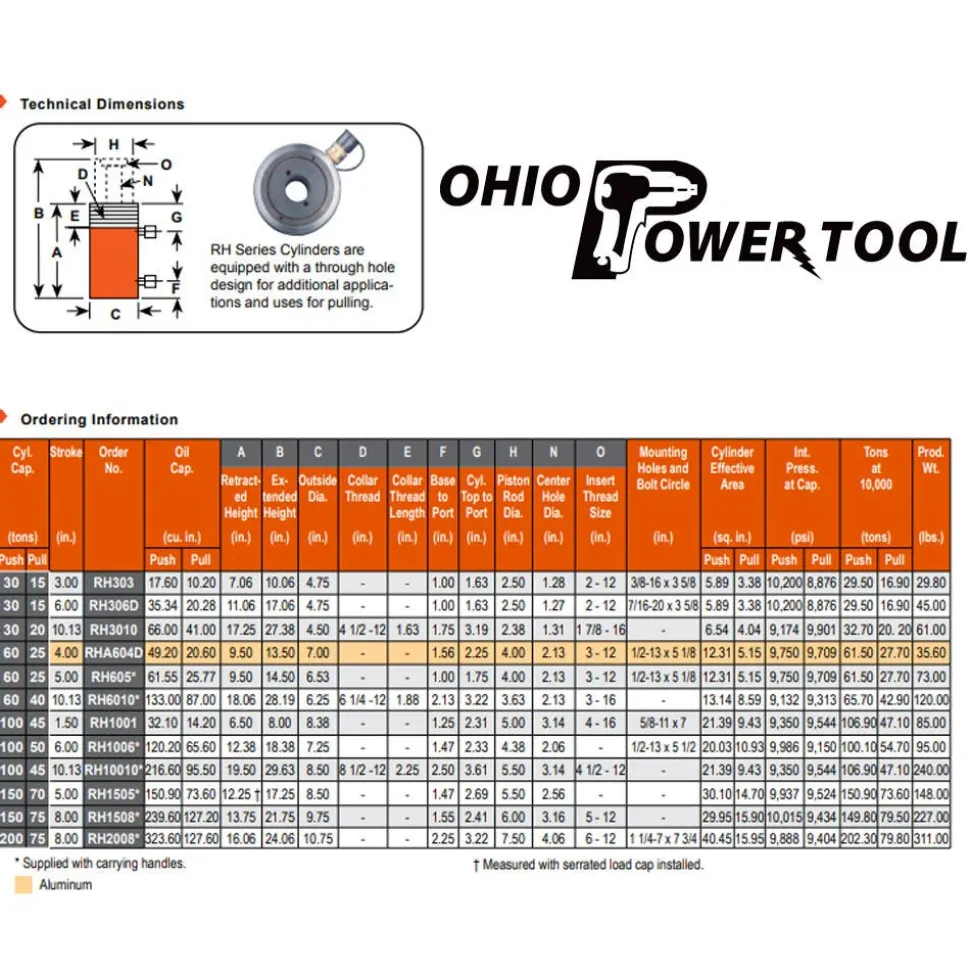

SPECIFICATIONS:

Stroke length:	1.5″
Piston rod diameter:	5.0″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return

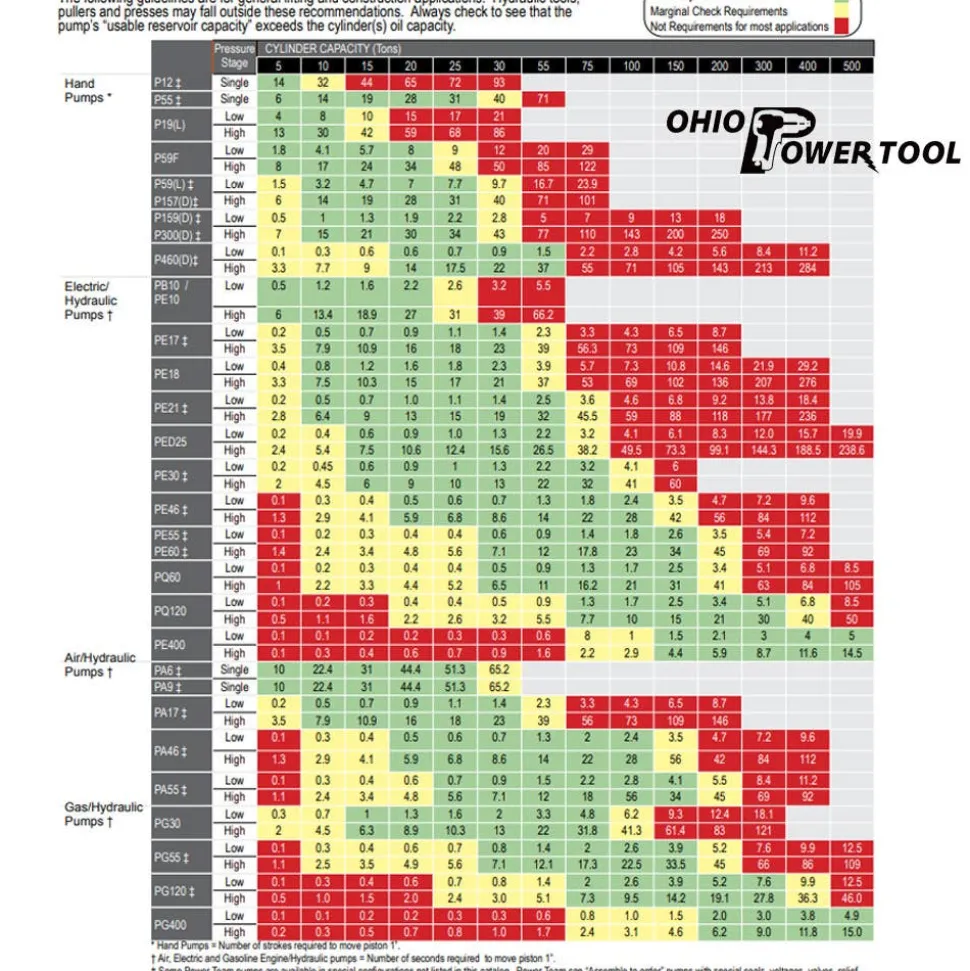

Cylinder capacity:	100 Ton
Pull capacity:	45 Ton
Oil capacity:	32.100″³
Pull/return oil capacity:	14.200³
Retracted height:	6.500″
Extended height:	8.000″
Effective area:	21.390″²
Pull cylindrical effective area:	9.430″²
Tons at 10;000 PSI:	106.90 Ton
Pull tons at 10;000 PSI:	47.10 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;544 PSI
Bore size:	5.220″
Base to port:	1.250″
Outside diamter:	8.375″
Center hole diameter:	3.141″
Mounting holes and bolt circle:	5/8-11×7
Insert thread size:	4-16
Cylinder top to diameter:	1.563″
Weight:	85.00 lbs

“
