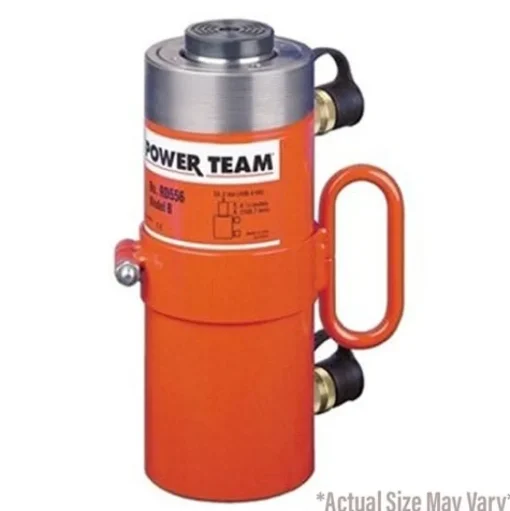

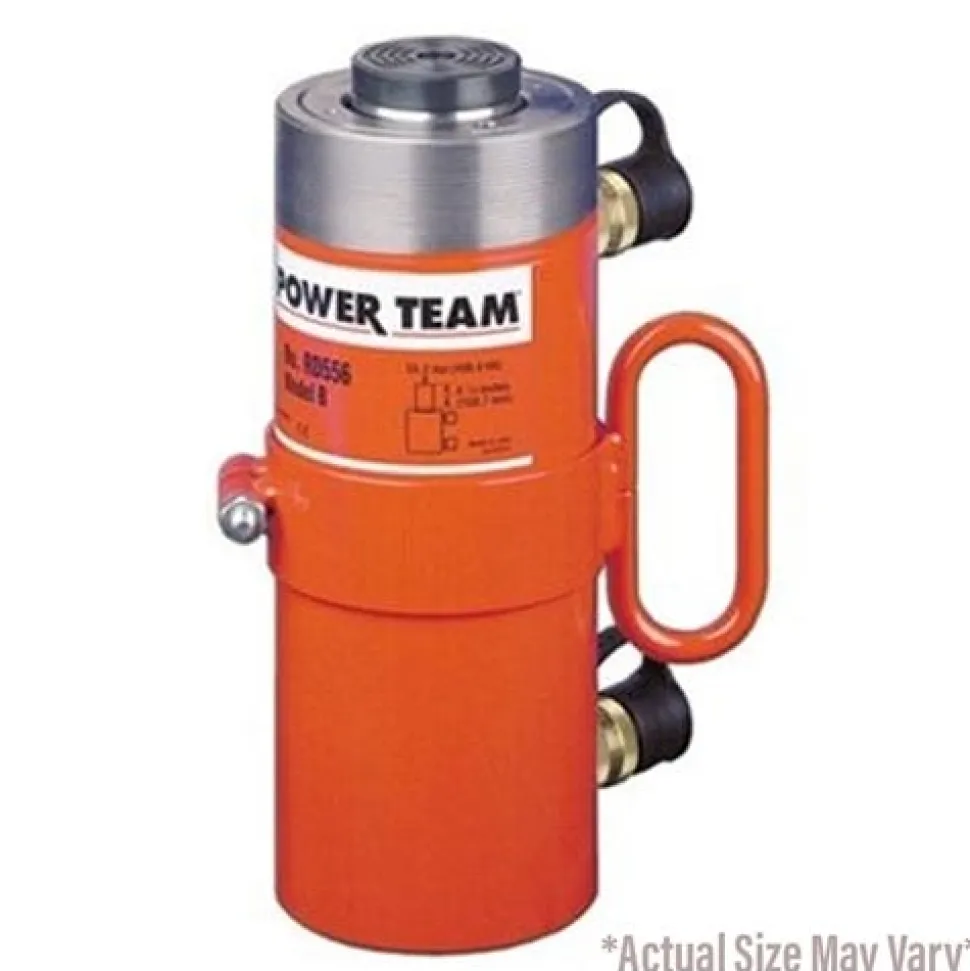

Power Team 100 Ton Hydraulic 13-1/8" Double Acting Cylinder RD10013

Power Team 100 Ton Hydraulic 13-1/8″ Double Acting Cylinder RD10013

$126.89

SKU: SKUyq8eAH9MZp Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance.

Features

Interchangeable piston head inserts provide versatility of application
Aluminum bronze overlay bearings provide long life
Chrome plated piston rod resists corrosion
Built-in safety relief valve prevents over-pressurization of the retract circuit
Load cap snaps out to expose internal piston rod threads for pulling applications, threads withstand full tonnage
Grooved ring pattern in load cap helps guard against load slippage
Each cylinder has two 9796 3/8″ NPTF female half couplers
Feature mounting holes and collar threads

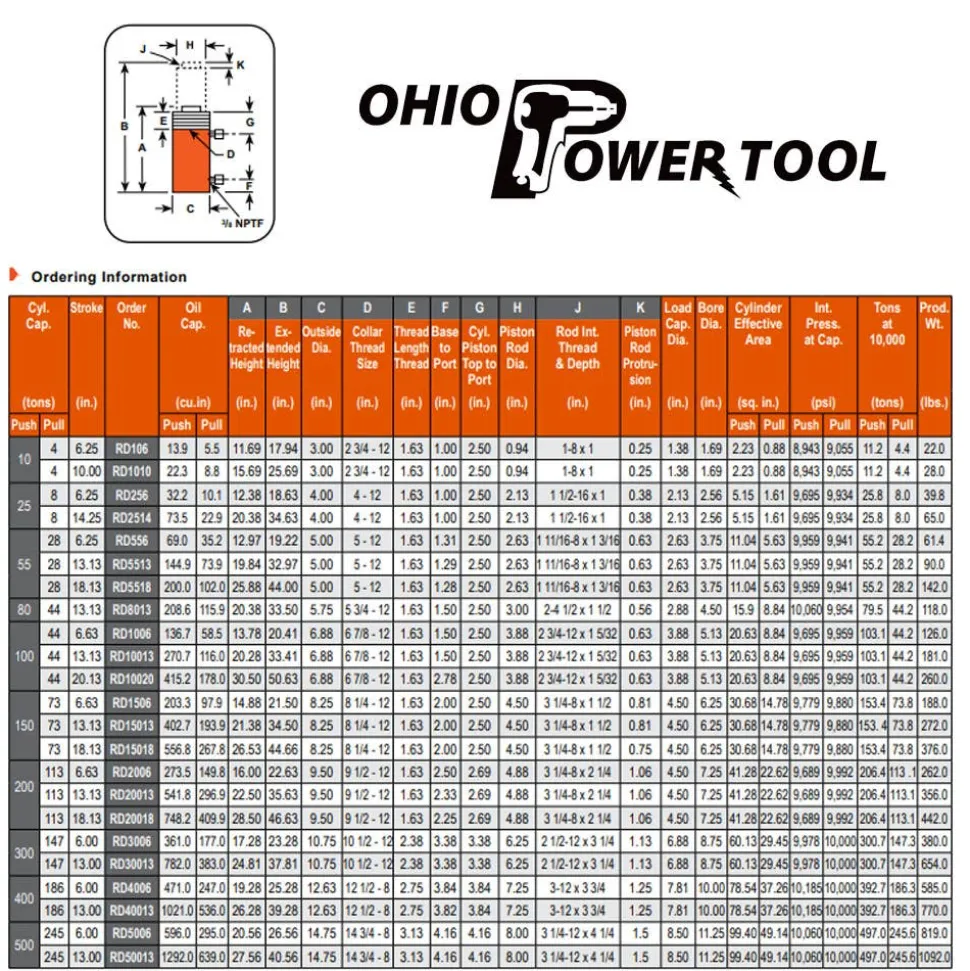

Manufacturer Specifications

Tons at 10,000 – Push	103.1 tons
Tons at 10,000 – Pull	44.2 tons
Internal Pressure at Capacity – Push	9,695 PSI
Internal Pressure at Capacity – Pull	9,959 PSI
Oil Capacity – Push	270.7 cu. in.
Oil Capacity – Pull	116 cu. in.
Effective Area – Push	20.63 sq. in.
Effective Area – Pull	8.84 sq. in.

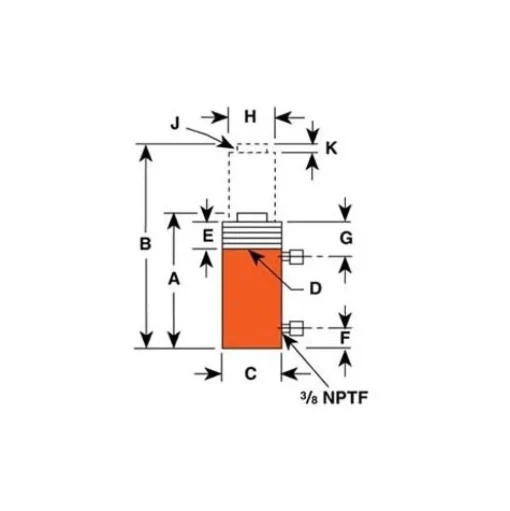

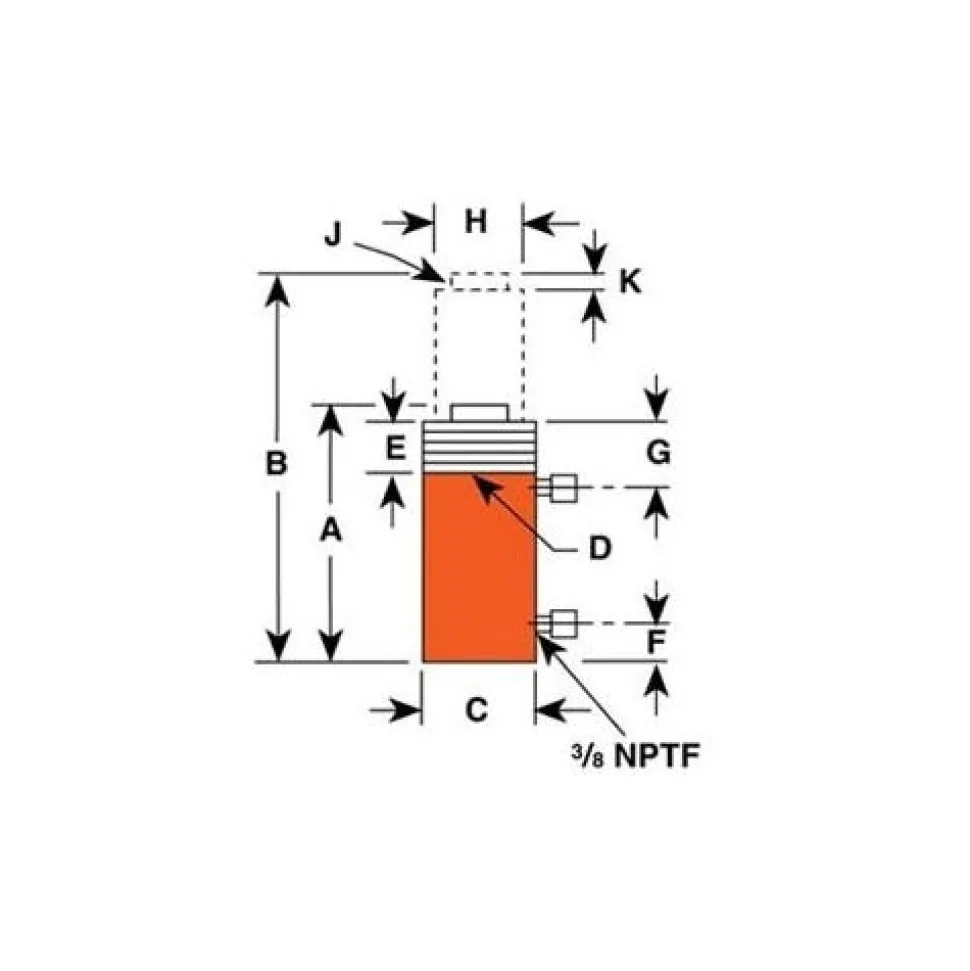

Bore Diameter	5.13 in.
Outside Diameter	6.88 in.
Retracted Height	20.28 in.
Extended Height	33.41 in.

Specifications

More Information
OPT SKU	PTRD10013
MPN	RD10013
UPC/GTIN	662536002745
Product Type	Cylinder Rams Double Acting
Google Category	Business & Industrial > Material Handling
Stroke	13-1/4″
Tonnage	100-Ton
Shipping Weight	191.00
