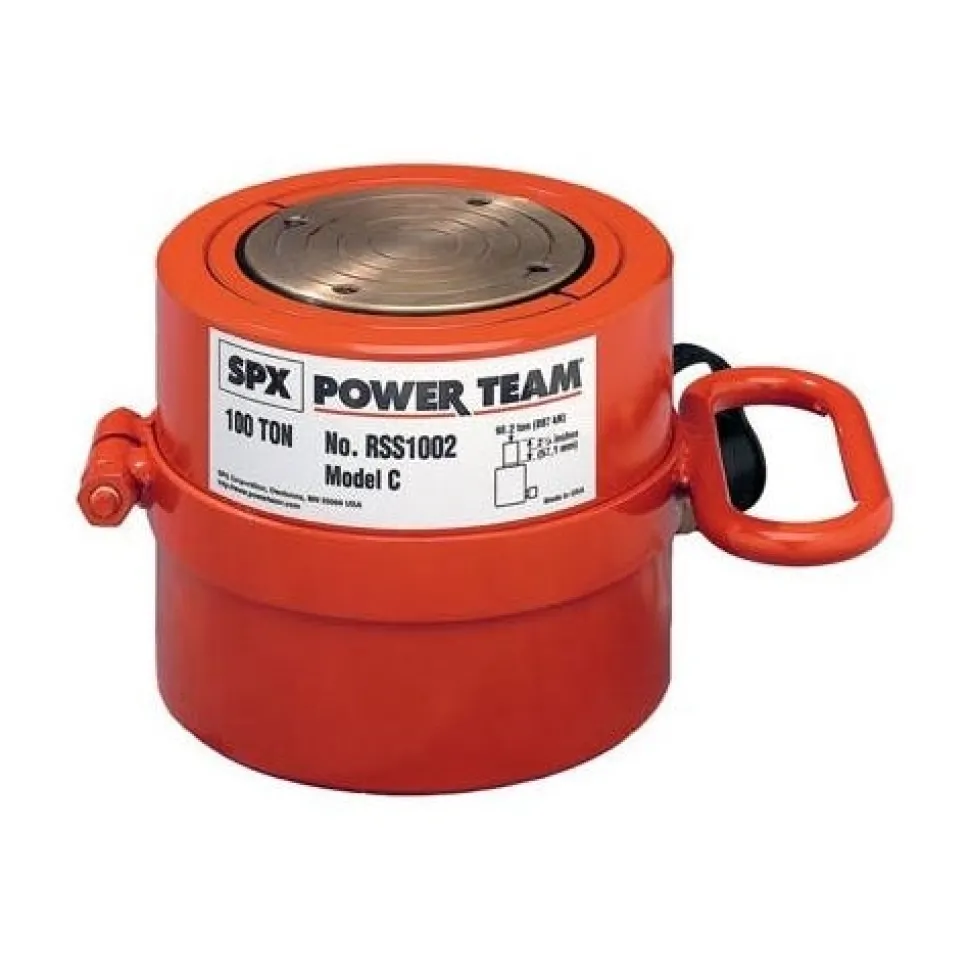

Power Team 100 Ton Hydraulic 2-1/4" Single Acting Cylinder Spring Return Shorty RSS1002

Power Team 100 Ton Hydraulic 2-1/4″ Single Acting Cylinder Spring Return Shorty RSS1002

Original price was: $2,277.00.Current price is: $138.99.

SKU: SKU8ytM8gbP5j Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
Power Tech plated piston rods and gland nuts resist scoring and corrosion.
Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
Grooved piston top keeps load from sliding.
Cylinders can be dead-ended at full capacity.
Removable carrying handles on 100 ton and 250 ton models.
Order No.: RSS1002
Cyl Cap. (tons) : 100
Stroke (in.) : 2 1/4
Oil Cap. (cu. in.) Push: 44.2
Oil Cap. (cu. in.) Return:
Bore Dia. (in.) : 5
Cylinder Effective Area (sq. in.) Push: 19.
Internal Press at Cap. (psi) Push: 10;186
Tons at 10000 (psi) Push: 98.2
Weight (lbs.) : 47.3

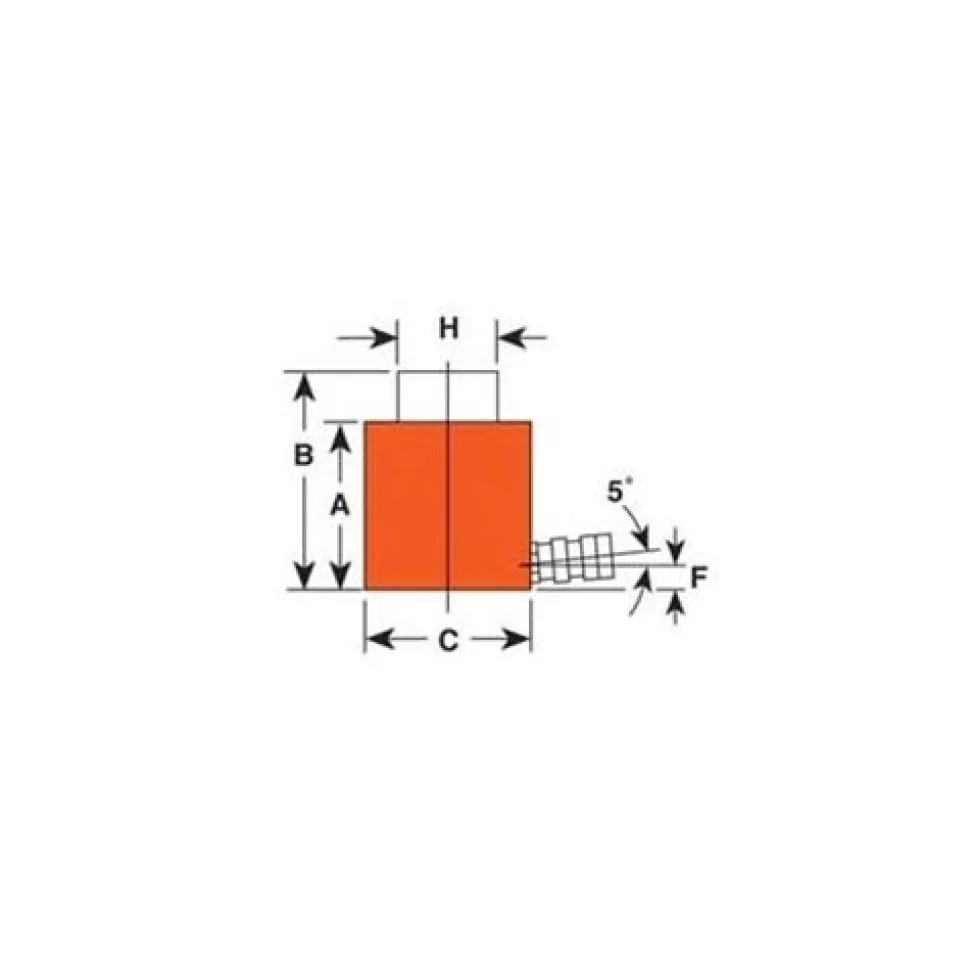

Retracted Height (in.) : 5 1/2
Extended Height (in.) : 7 3/4
Outside Dia. (in.) : 6 5/8
Base to Port (in.) : 15/16
Piston Rod Dia. (in.) : 4 3/8

Specifications

More Information
OPT SKU	PTRSS1002
MPN	RSS1002
UPC/GTIN	662536003537
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	2-1/4″
Tonnage	100-Ton
Shipping Weight	52.00
