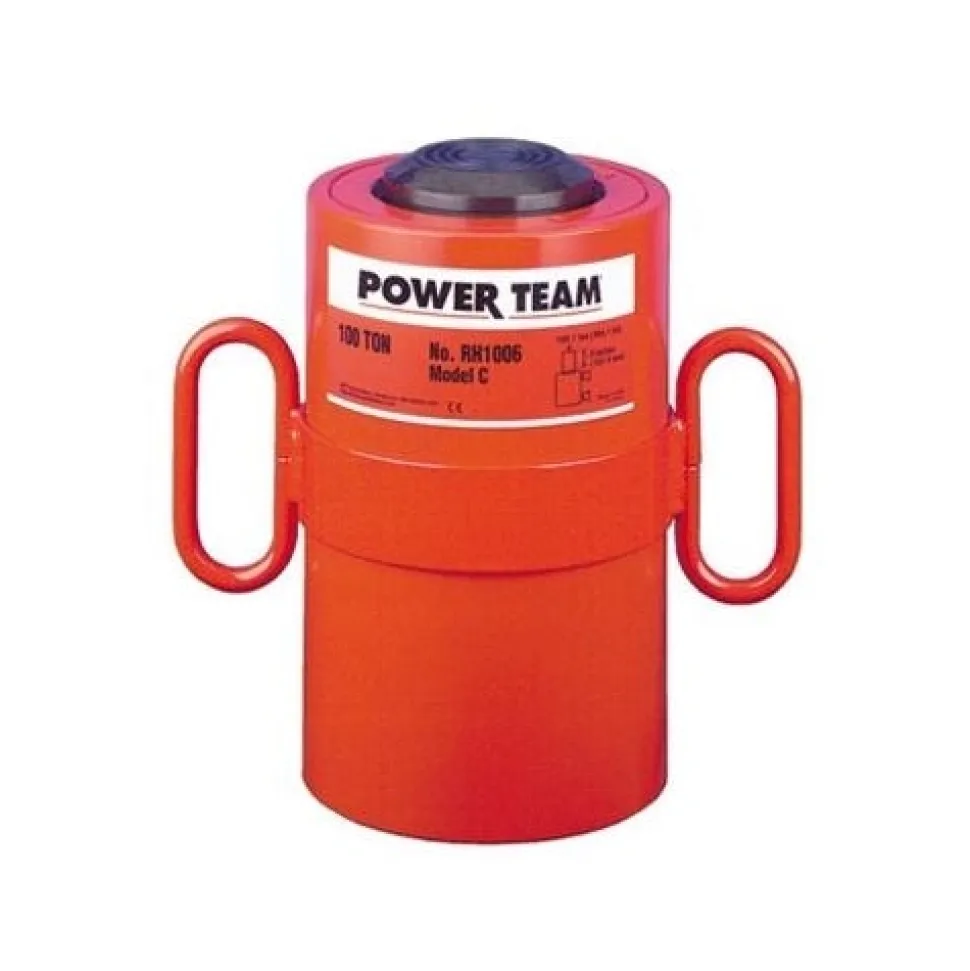

Power Team 100 Ton Hydraulic 6″ Double Acting Cylinder Center Hole RH1006

Power Team SPX

Power Team 100 ton hydraulic 6 double acting cylinder center hole RH1006

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers. The 60 ton thru 200 ton steel models are equipped with removable carrying handles.

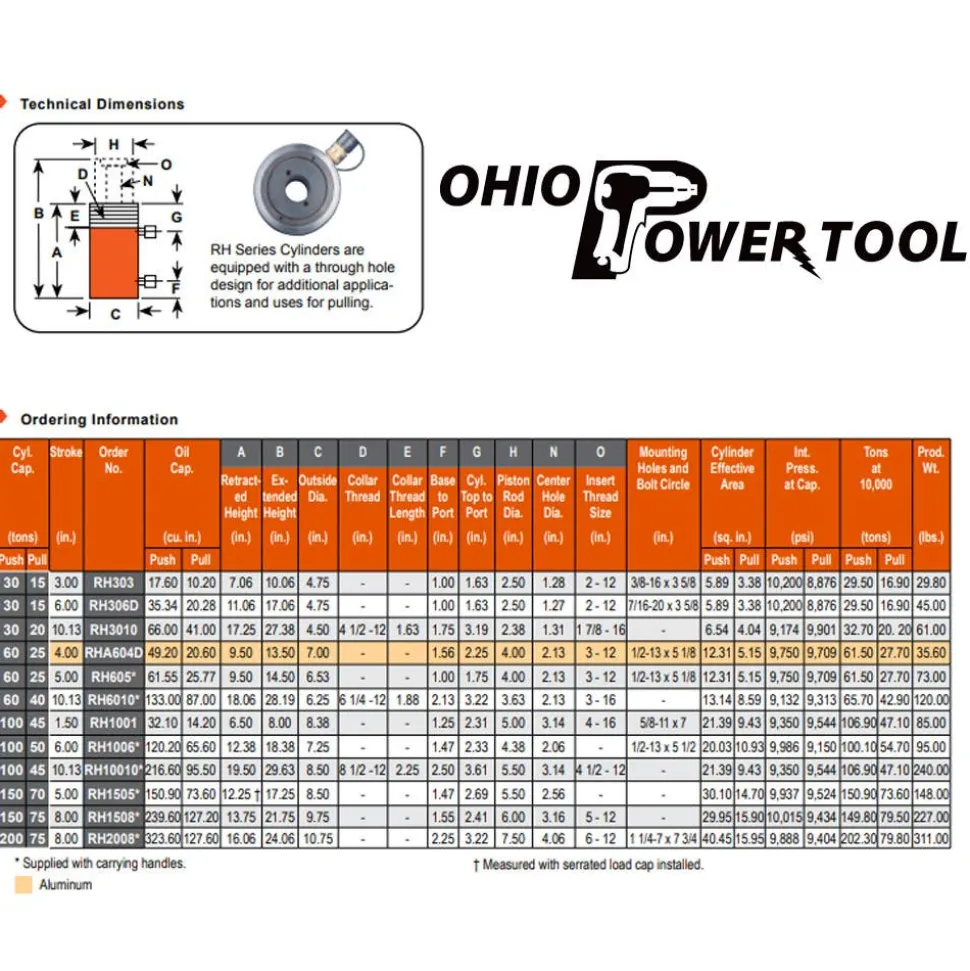

SPECIFICATIONS:

Stroke length:	6.000″
Piston rod diameter:	4.375″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	100 Ton
Pull capacity:	50 Ton
Oil capacity:	120.200″³
Pull/return oil capacity:	65.600³
Retracted height:	12.375″
Extended height:	18.375″
Effective area:	20.030″²
Pull cylindrical effective area:	10.930″²
Tons at 10;000 PSI:	100.10 Ton
Pull tons at 10;000 PSI:	54.70 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;150 PSI
Bore size:	5.051″
Base to port:	1.156″
Outside diameter:	7.250″
Center hole diameter:	2.063″
Mounting holes and bolt circle:	1/2-13×5-1/2
Cylinder top to diameter:	2.328″
Material:	Steel
Weight:	95.00lbs

“
