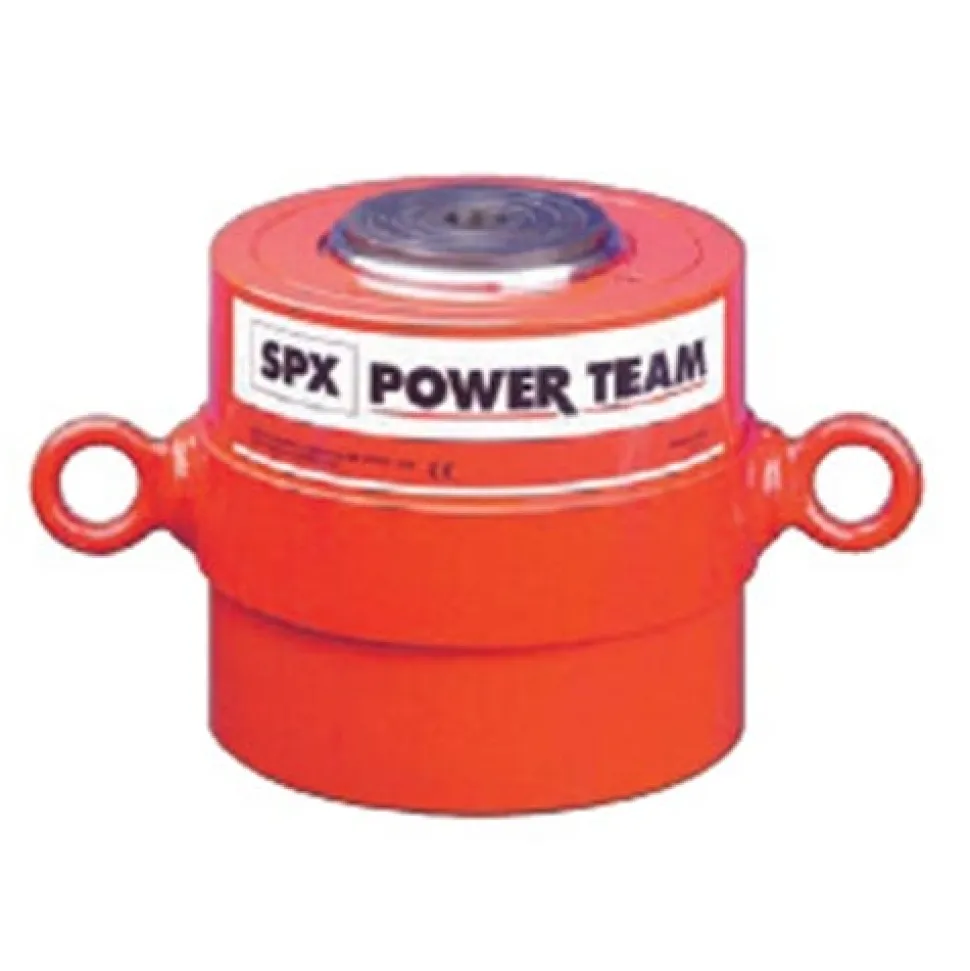

Power Team 150 Ton 6″ Stroke Hydraulic Return Cylinder R1506D

• Power Team
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8 NPTF female half couplers.

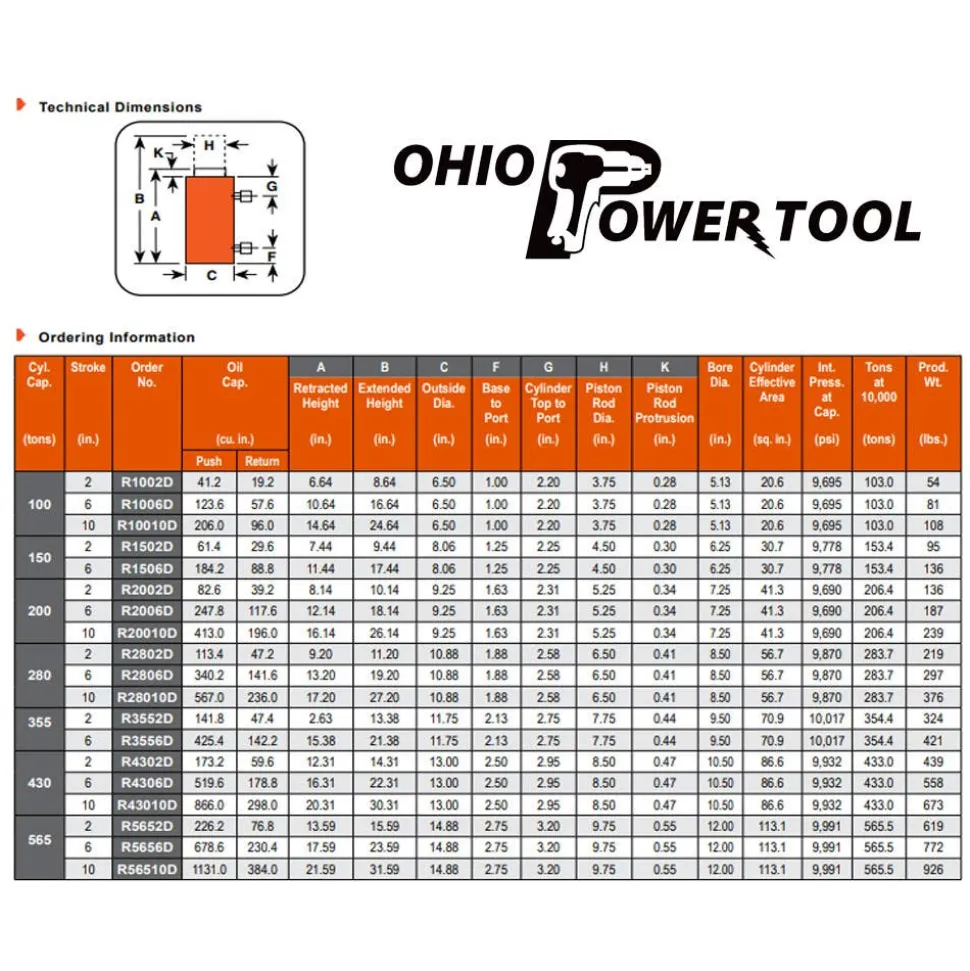

• Order No.    : R1506D
• Cyl. Cap. (tons)  : 150
• Stroke (in.)   : 6
• Oil Capacity/Height (cu. in.)  Push: 184.2
• Oil Capacity/Height (cu. in.)  Return: 88.8
• Bore Area (in.)   : 6 1/4
• Cylinder Effective Press. (sq. in.) Push: 30.7
• Internal Tons 10000 at Cap. (psi) Push: 9;778
• Tons at Wt. (psi)  Push: 153.4
• Weight (lbs.)   : 136
• Retracted Height (in.)  : 11  7/16
• Extended Height (in.)  : 17  7/16
• Outside Port (in.)  : 8  1/16
• Base to Port (in.)  : 1 1/4
• Cylinder Top to Dia. (in.) : 2 1/4
• Piston Rod Dia. (in.) : 4 1/2
• Piston Rod Protrusion (in.) : 19/64

“
