Power Team 150 Ton Hydraulic 5″ Double Acting Cylinder Center Hole RH1505

Power Team SPX

Power Team 100 ton hydraulic 6 double acting cylinder center hole RH1505

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers. The 60 ton thru 200 ton steel models are equipped with removable carrying handles.

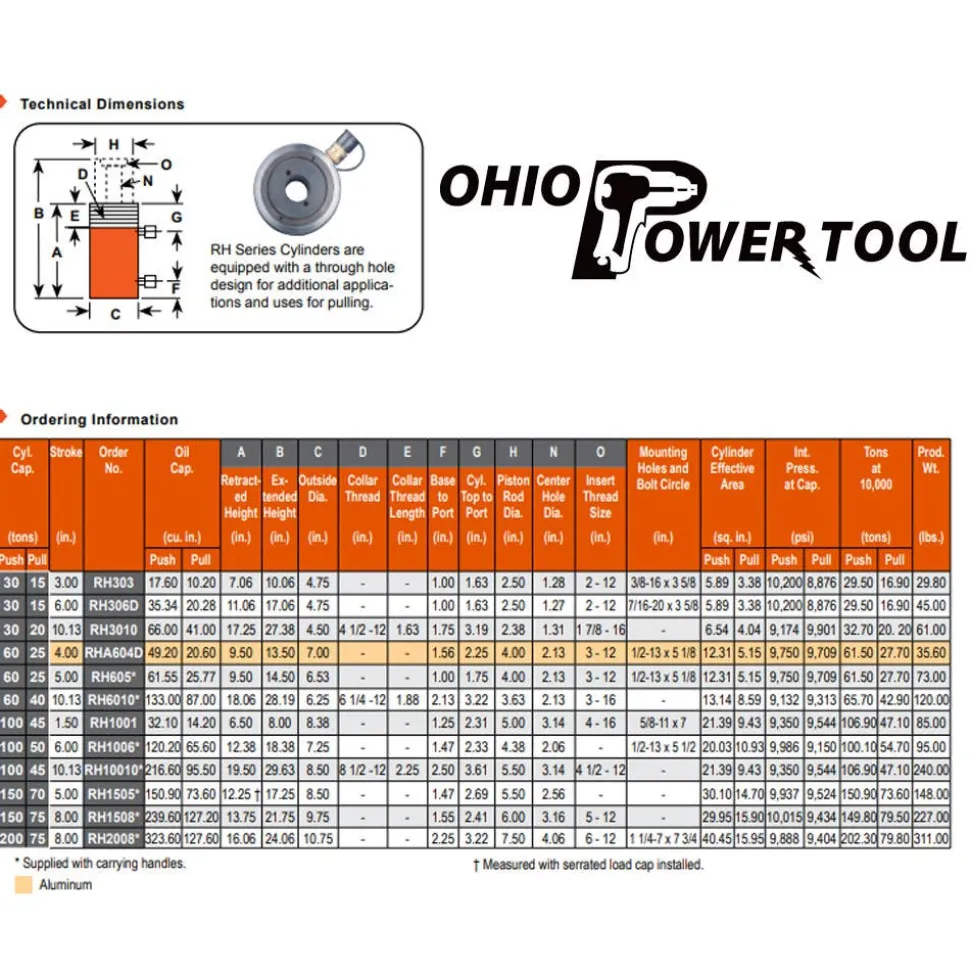

SPECIFICATIONS:

Stroke length:	5.000″
Piston rod diameter:	5.500″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	150 Ton
Pull capacity:	70 Ton
Oil capacity:	150.900″³
Pull/return oil capacity:	73.600³
Retracted height:	12.250″
Extended height:	17.250″
Effective area:	30.100″²
Pull cylindrical effective area:	14.700²
Tons at 10;000 PSI:	150.90 Ton
Pull tons at 10;000 PSI:	73.60 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;525 PSI
Bore size:	6.192″
Base to port:	1.156″
Outside diameter:	8.500″
Center hole diameter:	2.563″
Cylinder material:	Steel
Cylinder top to diameter:	2.688″
Weight:	148.00lbs

“
