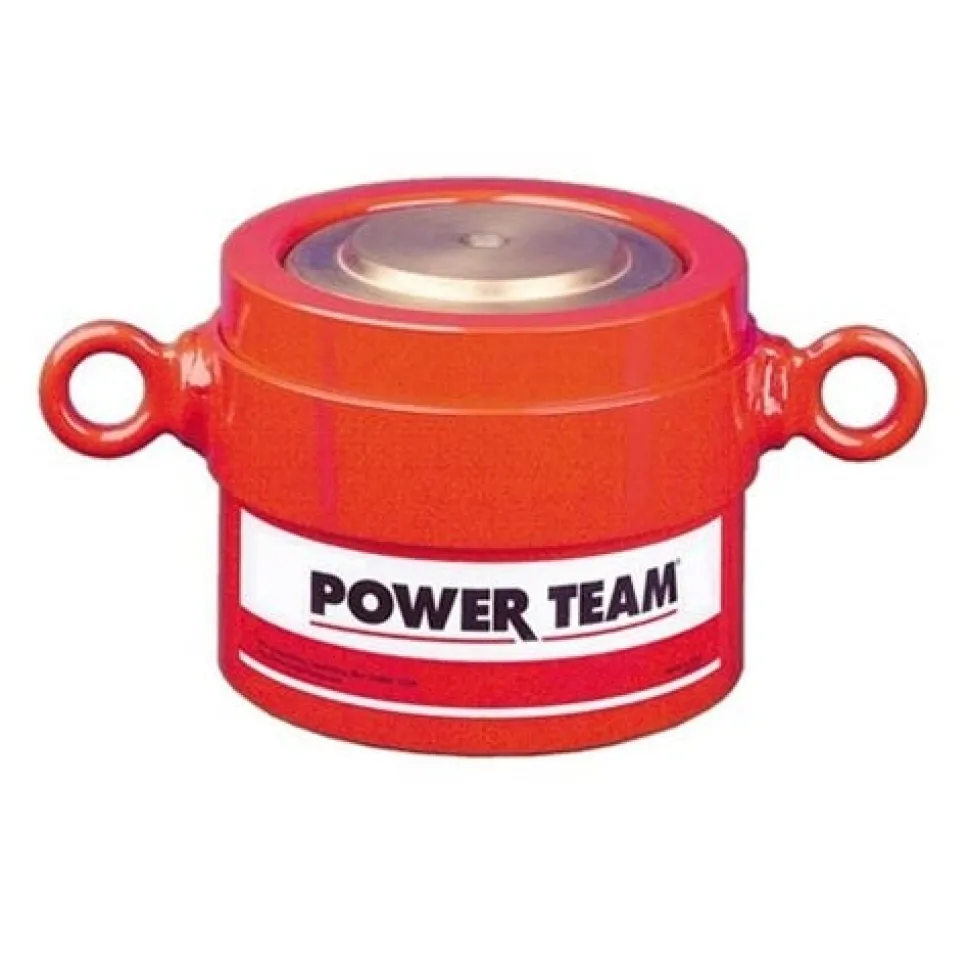

Power Team 150 Ton Hydraulic 6″ Single Acting Load Return Cylinder R1506C
$122.89
- Power Team
- HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
- Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
- Alloy heat treated piston and body for reliability and strength.
- Plated piston rod increases corrosion resistance and gives superior bearing support.

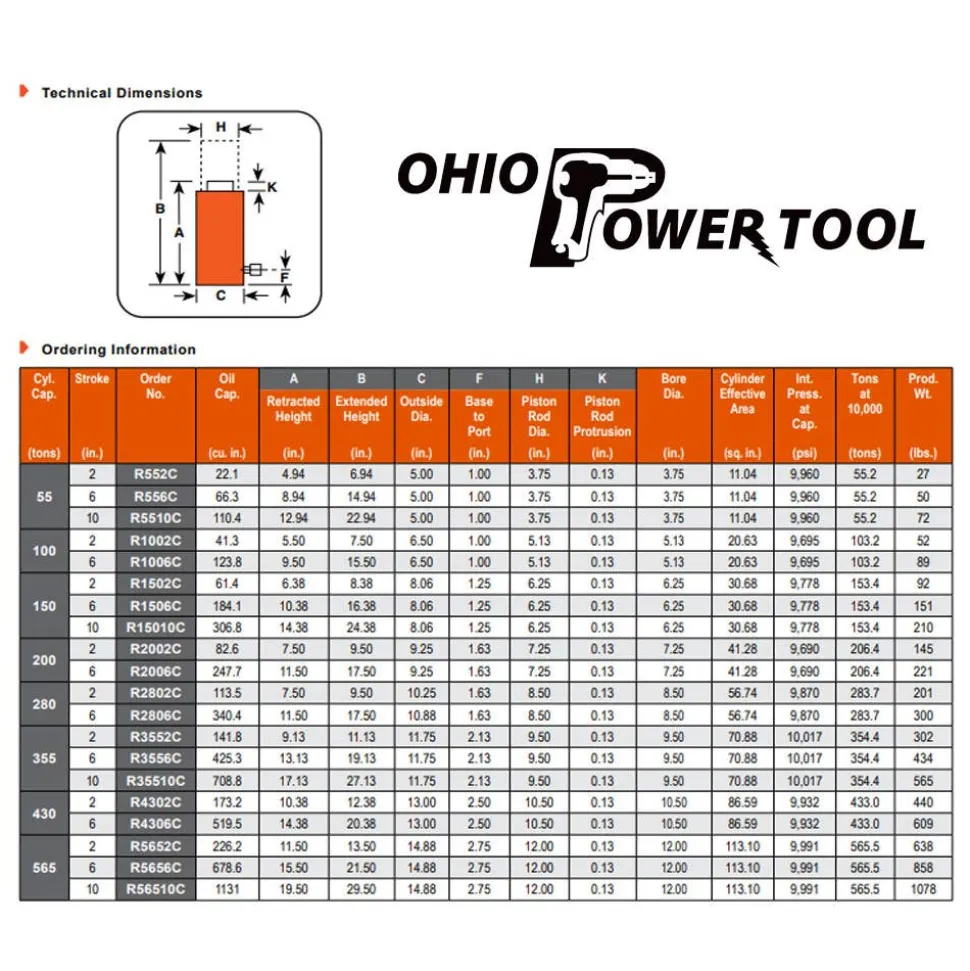

- Order No. : R1506C
- Cyl. Cap. (tons) : 150
- Stroke (in.) : 6
- Oil Cap. (cu. in.): 184.1
- Bore Dia. (in.): 6 1/4
- Cylinder Effective Area (sq. in.) 30.68
- Internal Pressure at Cap. (psi) 9;778
- Tons at 10000 (psi): 153.4
- Weight (lbs.) : 151

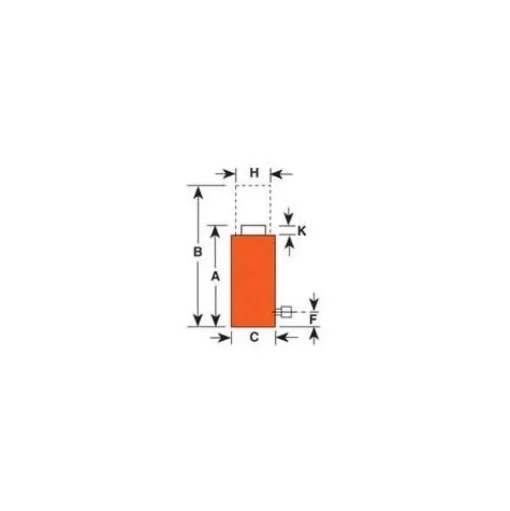

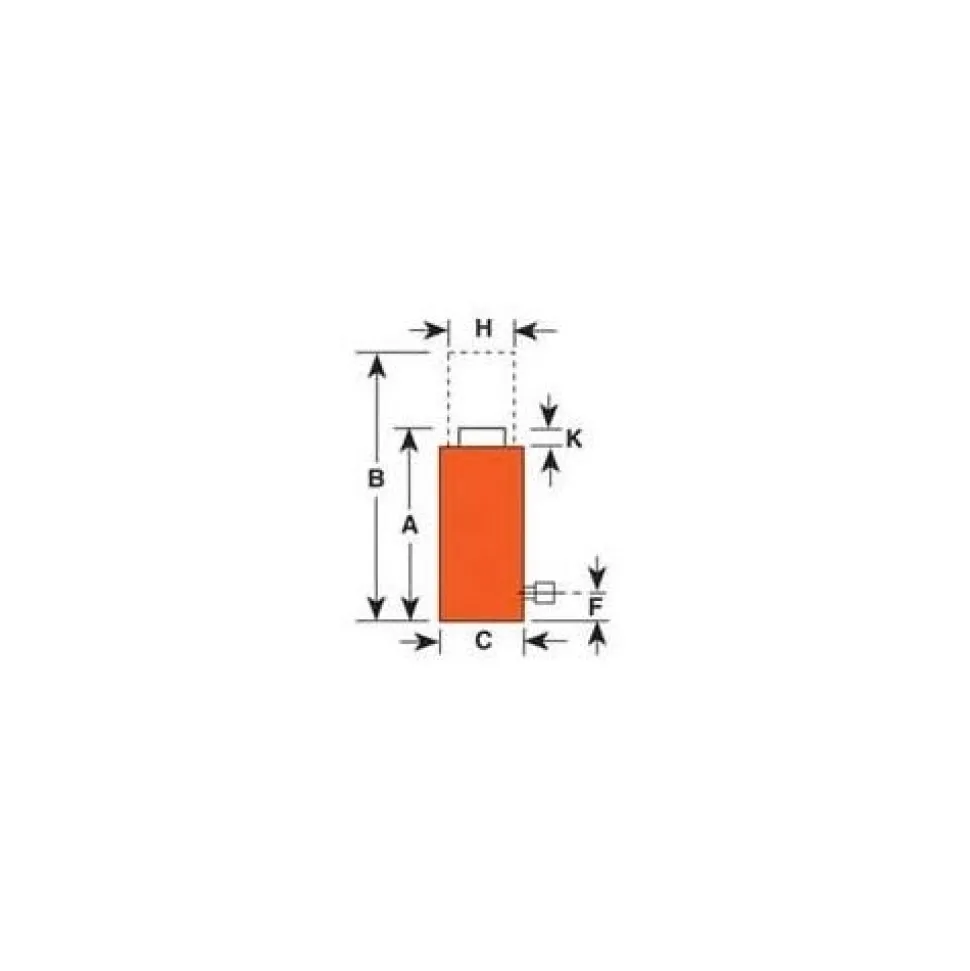

- Retracted Height (in.): 10 3/8
- Extended Height (in.): 16 3/8
- Outside Dia. (in.): 8 1/16
- Base to Port (in.): 1 1/4
- Piston Rod Dia (in.): 6 1/4
- Piston Rod Protrusion (in.): 1/8
| OPT SKU | PTR1506C |
|---|---|
| MPN | R1506C |
| UPC/GTIN | 662536282215 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6″ |
| Tonnage | 150-Ton |
| Shipping Weight | 160.00 |
