- Power Team
- Power Tech plated piston rods and gland nuts resist scoring and corrosion.
- Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
- Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
- Grooved piston top keeps load from sliding.
- Cylinders can be dead-ended at full capacity.

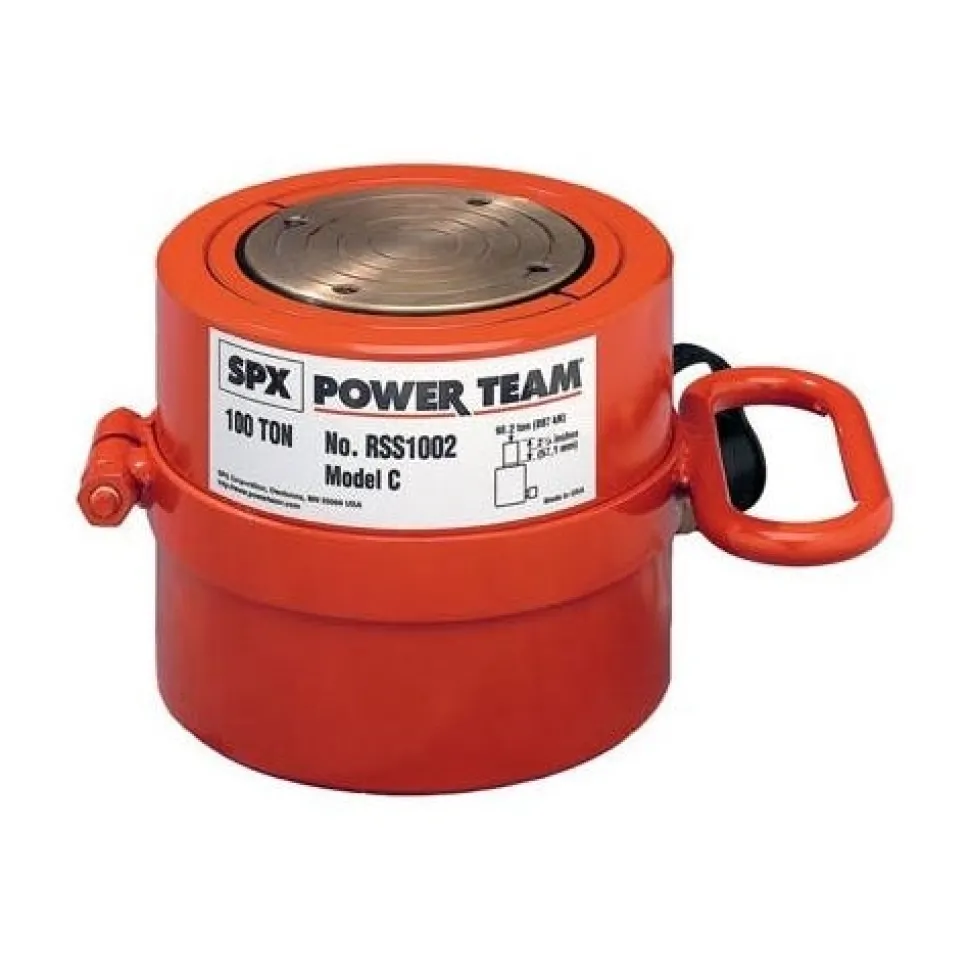

- Removable carrying handles on 100 ton and 250 ton models.
- Order No.: RSS202
- Cyl Cap. (tons)Â : 20
- Stroke (in.)Â Â : 1 3/4
- Oil Cap. (cu. in.)Â Push: 7.7
- Oil Cap. (cu. in.)Â Return:
- Bore Dia. (in.)Â : 2 3/8
- Cylinder Effective Area (sq. in.) Push: 4.43
- Internal Press at Cap. (psi) Push: 9;029
- Tons at 10000 (psi)Â Push: 22.1
- Weight (lbs.)Â Â : 9.9

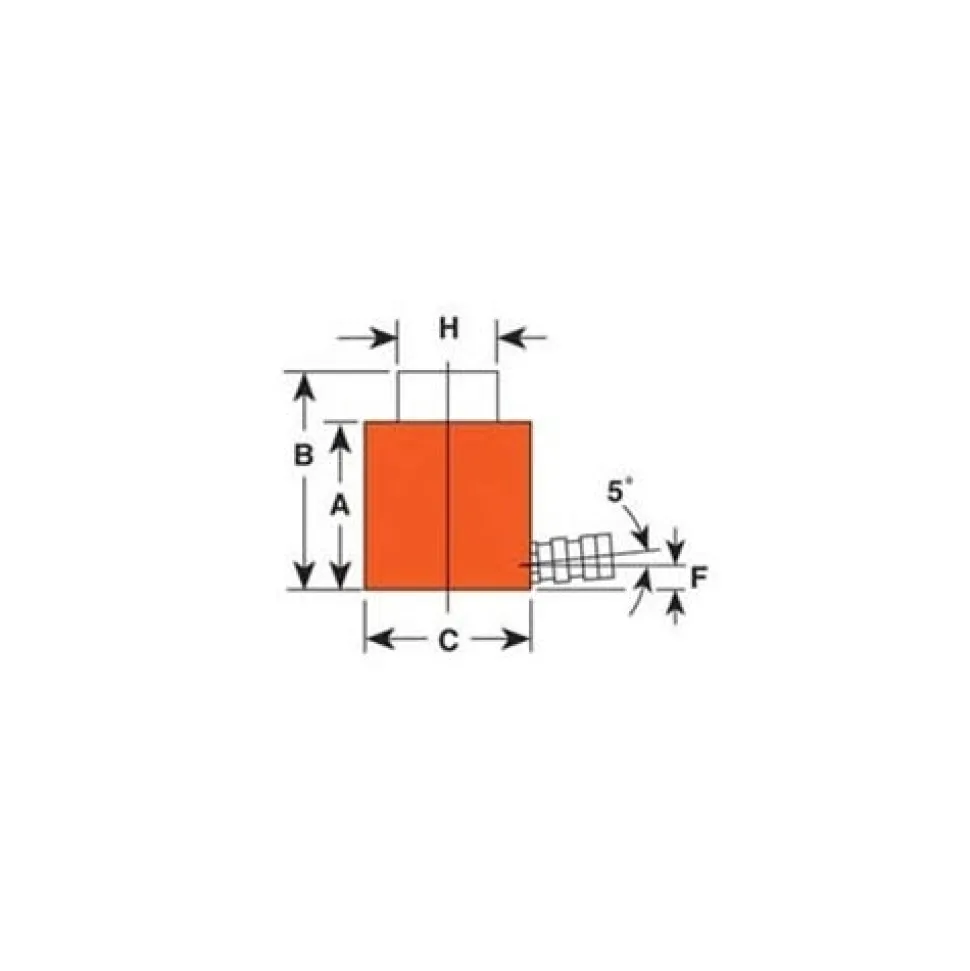

- Retracted Height (in.)Â : 3 3/4
- Extended Height (in.)Â : 5 1/2
- Outside Dia. (in.)Â : 3Â 9/16
- Base to Port (in.)Â :Â Â Â 5/8 Â
- Piston Rod Dia. (in.) : 2Â 5/32
| OPT SKU | PTRSS202 |
|---|---|
| MPN | RSS202 |
| UPC/GTIN | 662536003568 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 1-3/4″ |
| Tonnage | 20-Ton |
| Shipping Weight | 14.00 |
