Power Team 20 Ton Hydraulic 3″ Single Acting Cylinder Center Hole RH203

Power Team SPX

Power Team 20 ton hydraulic 3 single acting cylinder center hole RH203

Center hole cylinder ideal for pulling and tensioning cables; anchor bolts with interchangeable piston head inserts

FEATURES:

• Basic head can be changed from a tapped hole to plain hole by simply changing insert
• 12; 20; 30; 50; 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full “dead-end” loads
• Corrosion resistant standpipe has “Power Tech” treatment
• All cylinders except RH120 are furnished with a 9796 3/8″ NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

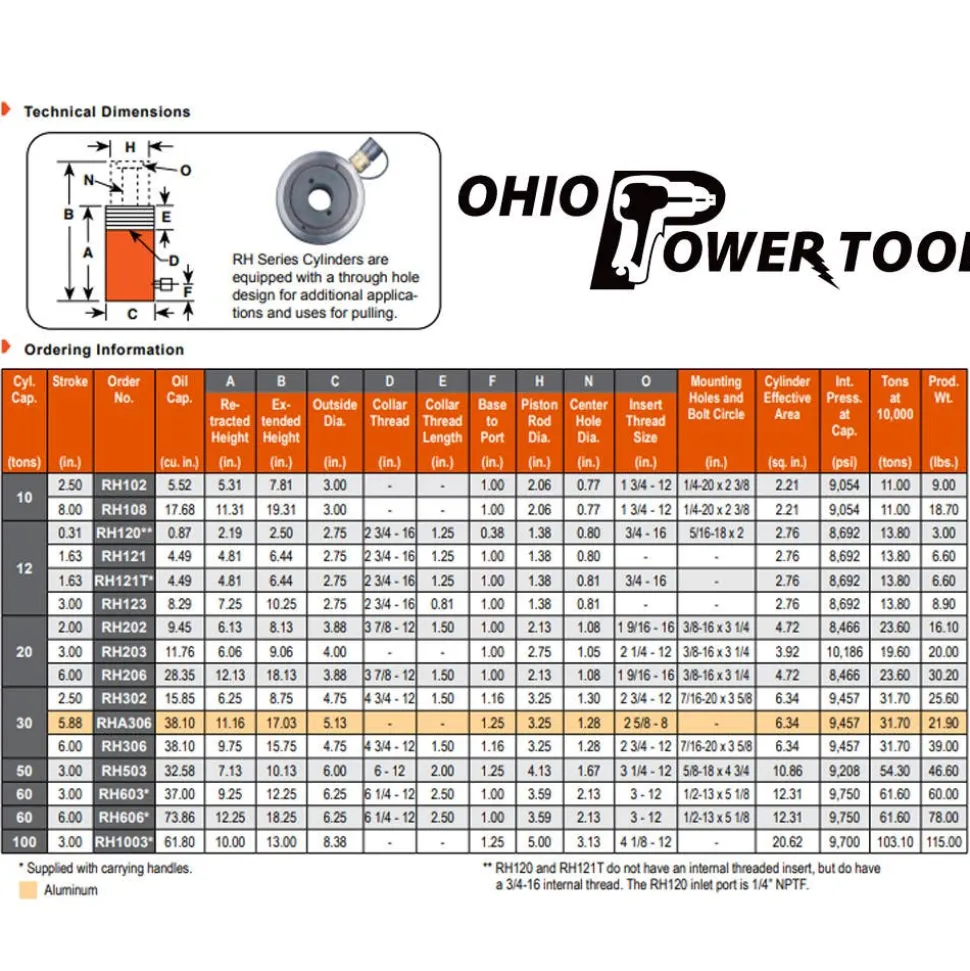

SPECIFICATIONS:

Stroke length:	3.000″
Piston rod diameter:	2.750″
Series/type:	RT-Series/Center hole
Actuation/return:	Single acting/Spring return
Cylinder capacity:	20 Ton
Oil capacity:	11.760″³
Retracted height:	6.063″
Extended height:	9.063″
Effective area:	3.920″²
Tons at 10;000 PSI:	19.60 Ton
Max pressure:	10;000 PSI
Bore size:	2.234″
Base to port:	1.000″
Outside diameter:	4.000″
Center hole diameter:	1.047″
Mounting holes and bolt circle:	3/8-16×3-1/4″
Insert thread size:	2-1/4-12
Material:	Aluminum
Weight:	20.00lbs

“
