Power Team 20 Ton Hydraulic 7/16″ Low Profile Spring Return Cylinder RLS200

• Power Team
• IDEAL FOR CONFINED AREAS FROM 1 5/8 TO 4″ CLEARANCE.
• Cylinder body; piston and gland nut Power Tech treated for corrosion and abrasion resistance.
• Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of offcenter loading.
• Unique heavy duty spring provides fast piston return.
• A 9796 3/8″ NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8″ coupler which is not angled). Oil ports are 3/8″ NPTF.
• Couplers on all cylinders; except RLS50; are angled upward for extra clearance.

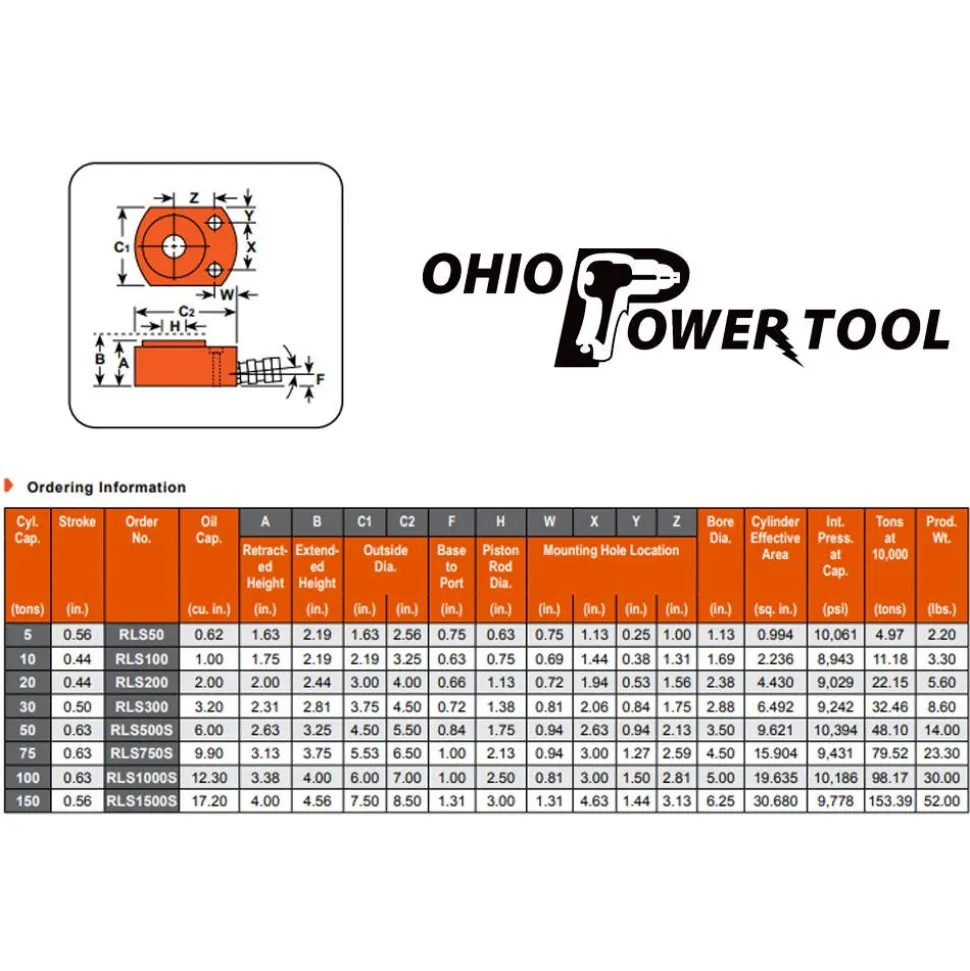

• Order No. : RLS200
• Cyl. Cap. (tons): 20
• Stroke (in.) :    7/16
• Oil Cap. (cu. in.): 2
• Bore Dia. (in.): 2 3/8
• Cyl. Eff. Area (sq. in.): 4.43
• Int. Press at Cap. (psi): 9;029
• Tons at 10000 (psi): 22.15
• Weight (lbs.) : 5.6
• Order No. : RLS200
• Retracted Height : 2
• Extended Height : 2  7/16
• Outside Dia. : 3 x 4
• Base to Port : 21/32
• Piston Rod Prod. Dia.: 1 1/8

“
