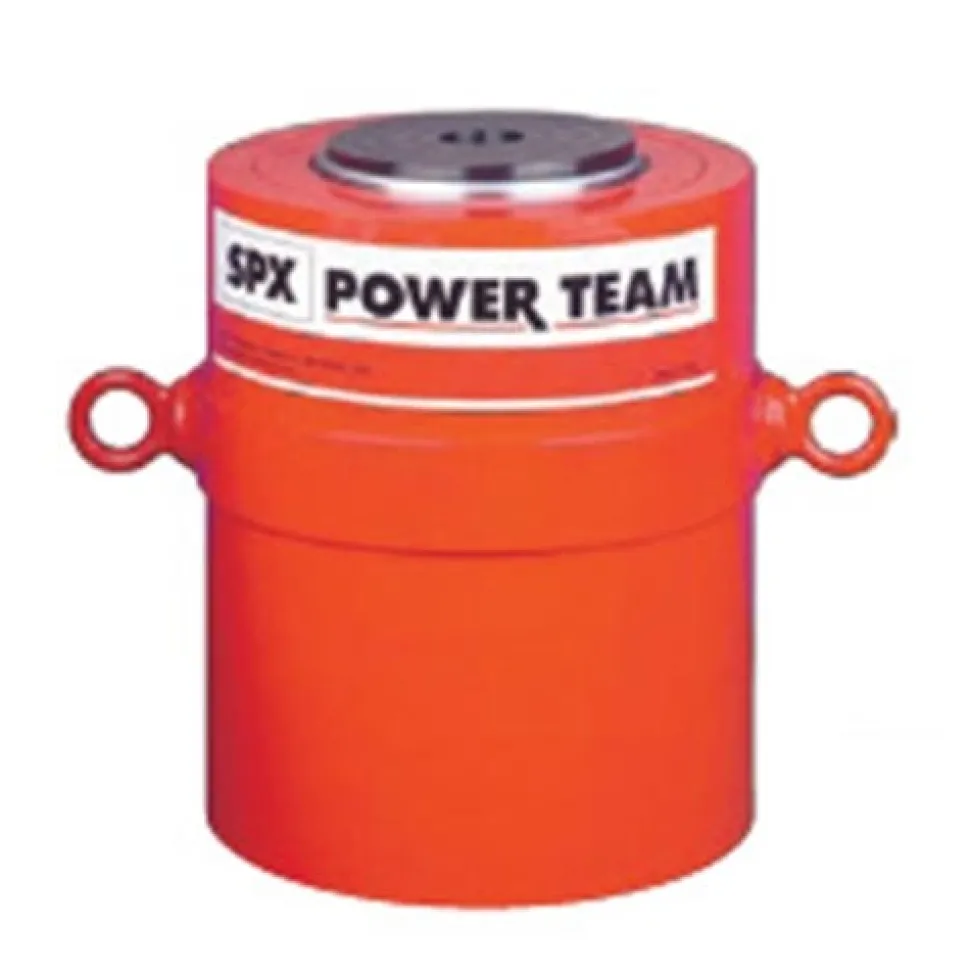

Power Team 200 Ton 6" Stroke Hydraulic Return Cylinder R2006D

Power Team 200 Ton 6″ Stroke Hydraulic Return Cylinder R2006D

Original price was: $6,884.00.Current price is: $120.99.

SKU: SKURXShmcqKL0 Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Cylinders come standard with swivel caps to reduce the effects of off-center loading, with built-in safety relief valve preventing over-pressurization of the retract circuit.

Features

Hard chrome plated, heat treated piston rod reduces wear on piston and gland nut
Built-in safety relief valve prevents over-pressurization of the retract circuit
Each cylinder has two 9796 3/8″ NPTF female half couplers

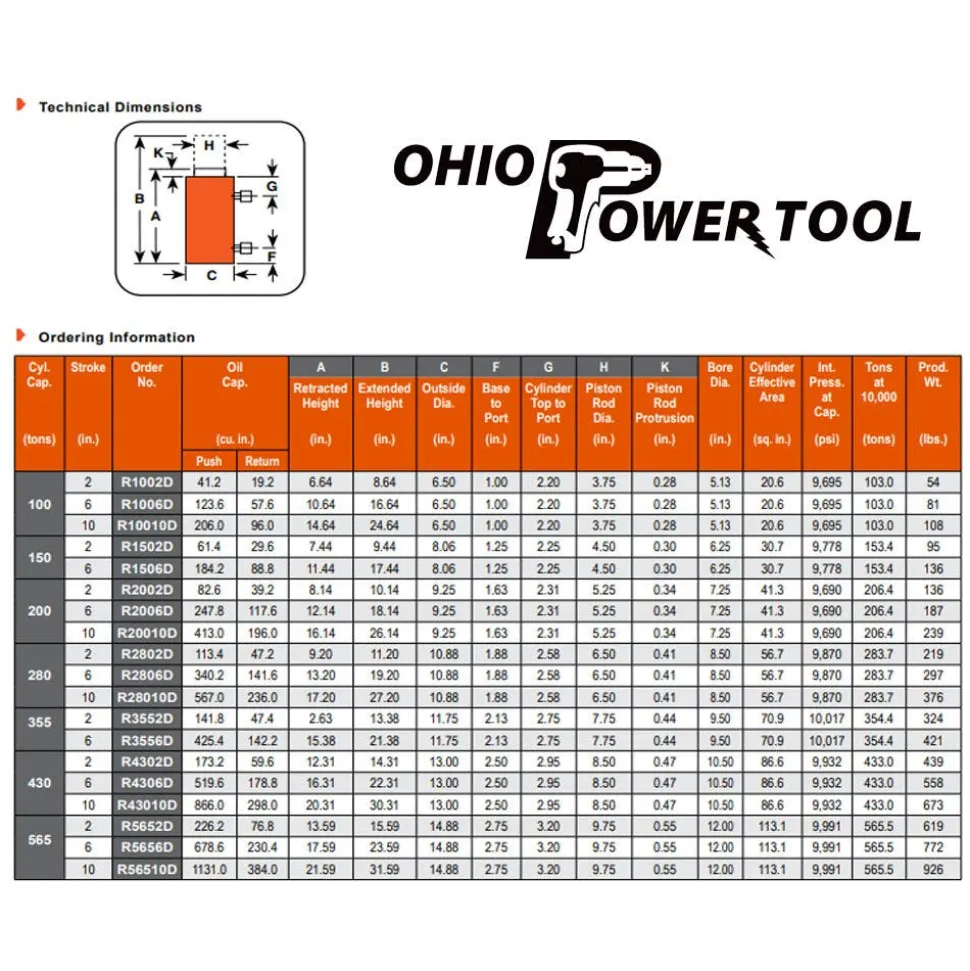

Manufacturer Specifications

Tons at 10,000	206.4 tons
Internal Pressure at Capacity	9,690 PSI
Oil Capacity – Push	247.8 cu. in.
Oil Capacity – Return	117.6 cu. in.
Effective Area	41.3 sq. in.
Bore Diameter	7.25 in.
Outside Diameter	9.25 in.
Retracted Height	12.14 in.
Extended Height	18.14 in.

Specifications

More Information
OPT SKU	PTR2006D
MPN	R2006D
UPC/GTIN	662536328579
Product Type	Cylinder Rams Double Acting
Google Category	Business & Industrial > Material Handling
Stroke	6″
Tonnage	200-Ton
Shipping Weight	224.00
