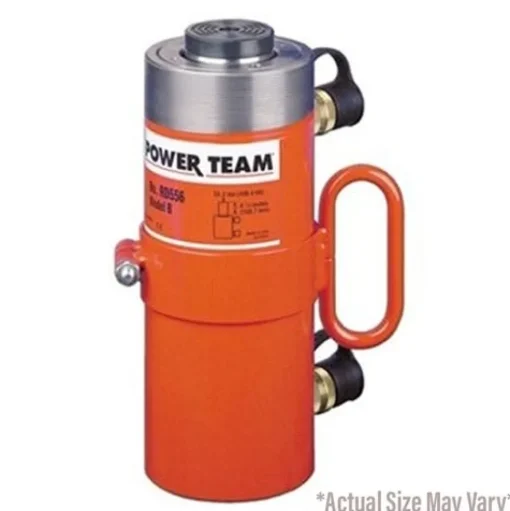

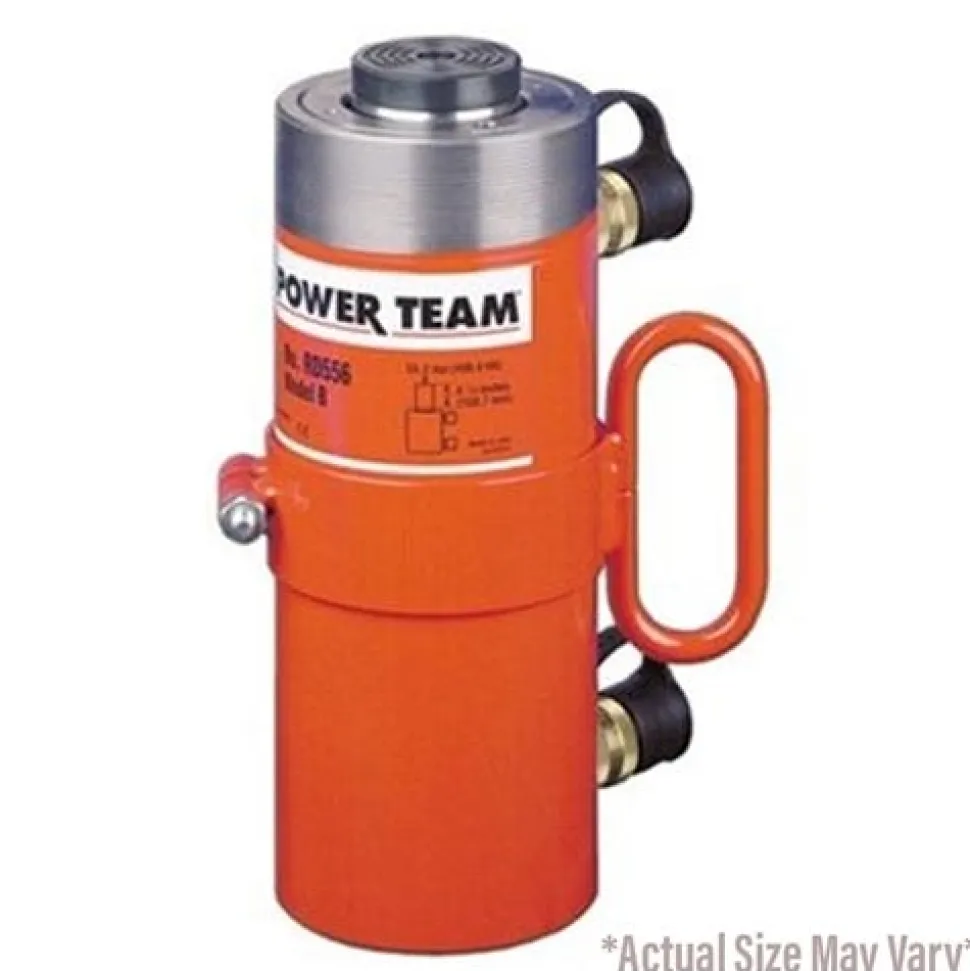

Power Team 200 Ton Hydraulic 18″ Double Acting Cylinder RD20018

• Power Team
• Financing is available – Click here for details
• HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
• Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
• Grooved ring pattern in load cap helps guard against load slippage.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.

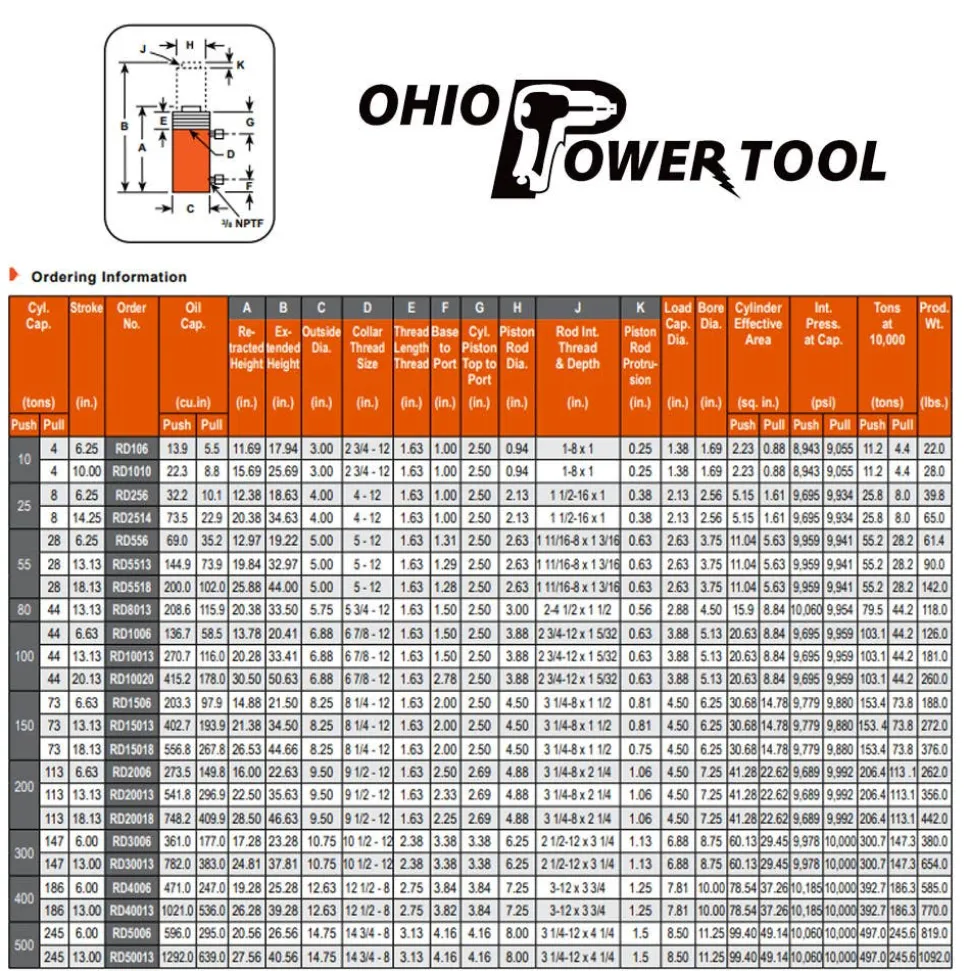

• Order No.  : RD20018
• Cyl. Cap. (tons) Push: 200
• Cyl. Cap. (tons) Pull: 113
• Stroke (in.)  : 18 1/8
• Oil Capacity (cu.in) Push: 748.2
• Oil Capacity (cu.in) Pull: 409.9
• Load Cap Dia. (in.) : 4 1/2
• Bore Dia. (in.)  : 7 1/4
• Cyl. Eff. Area (sq.in.) Push: 41.28
• Cyl. Eff. Area (sq.in.) Pull: 22.62
• Int. Press. at Cap. (psi) Push: 9;689
• Int. Press. at Cap. (psi) Pull: 9;992
• Tons at 10;000 psi  Push: 206.4
• Tons at 10;000 psi  Pull: 113.1
• Weight (lbs.)  : 442

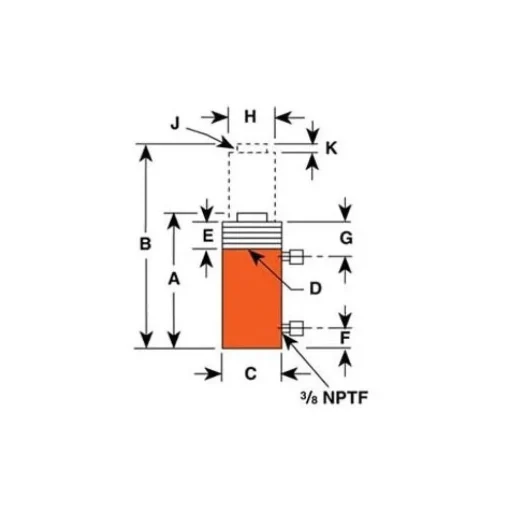

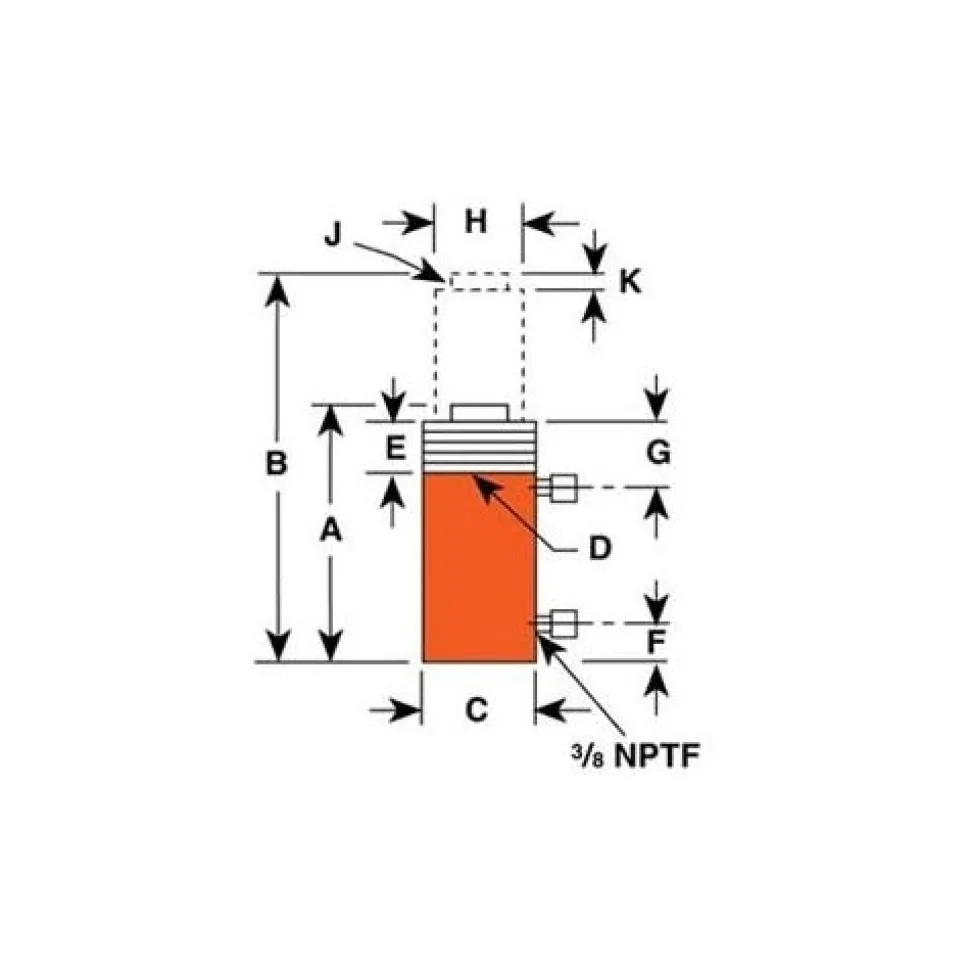

• Ret. Height (in.) : 28 1/2
• Ext. Height (in.) : 46 5/8
• Outside Dia. (in.) : 9 1/2
• Collar Thread Size (in.) : 9 1/2-12
• Thread Length Thread (in.) : 1 5/8
• Base to Port trusion (in.) : 2 1/4
• Cylinder Piston Top to Port (in.): 2 11/16
• Piston Rod Dia. Depth (in.) : 4 7/8
• Rod Int. and (in.) : 3 1/4-8×2 1/4
• Piston Rod Protrusion (in.)  : 1 1/16

“
