Power Team 200 Ton Hydraulic 8″ Double Acting Cylinder Center Hole RH2008

Power Team SPX

Power Team 200 ton hydraulic 8 double acting cylinder center hole RH2008

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers.

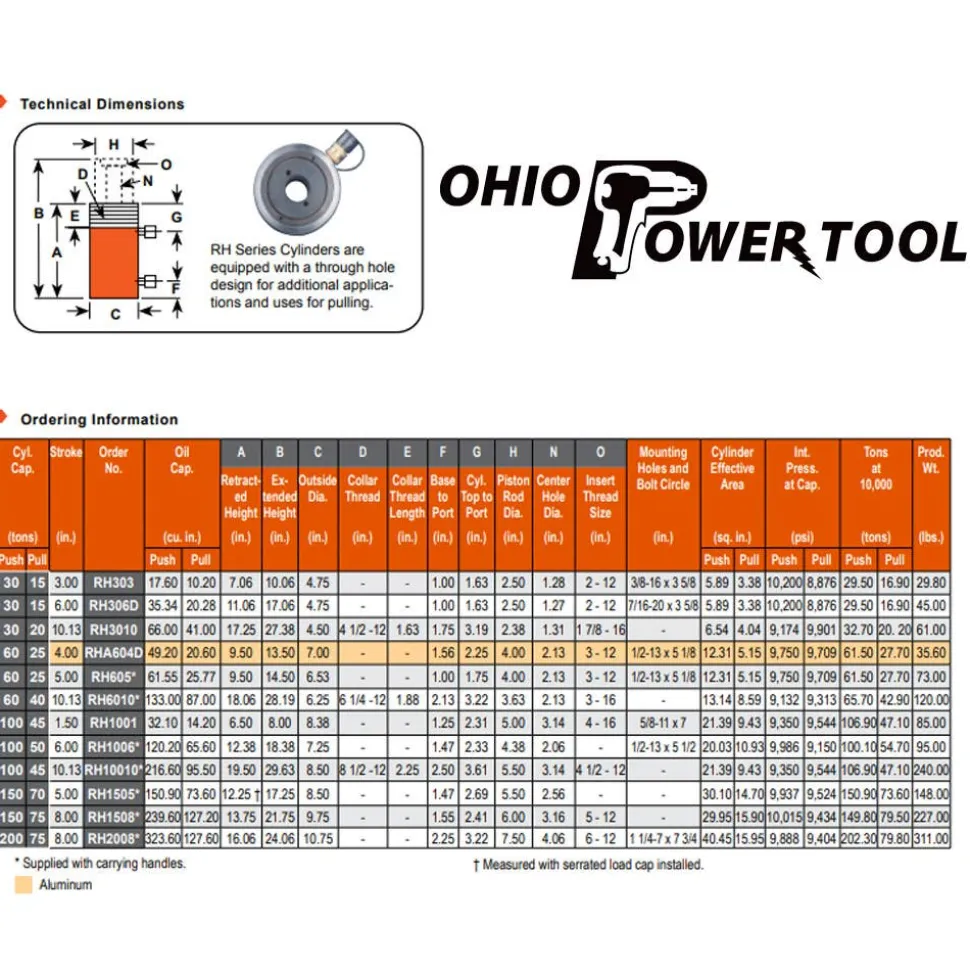

SPECIFICATIONS:

Stroke length:	8″
Piston rod diameter:	7.5″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	200 Ton
Pull capacity:	75 Ton
Oil capacity:	323.600″³
Pull/return oil capacity:	127.6000″³
Retracted height:	16.063″
Extended height:	24.063″
Effective area:	40.450″²
Pull cylindrical effective area:	15.950″²
Tons at 10;000 PSI:	202.30 Ton
Pull tons at 10;000 PSI:	79.80 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;404 PSI
Bore size:	7.178″
Base to port:	2.250″
Outside diameter:	10.750″
Center hole diameter:	4.063″
Insert thread size:	6-12
Cylinder top to diameter:	3.219″
Cylinder material:	Steel
Weight:	311lbs

“
