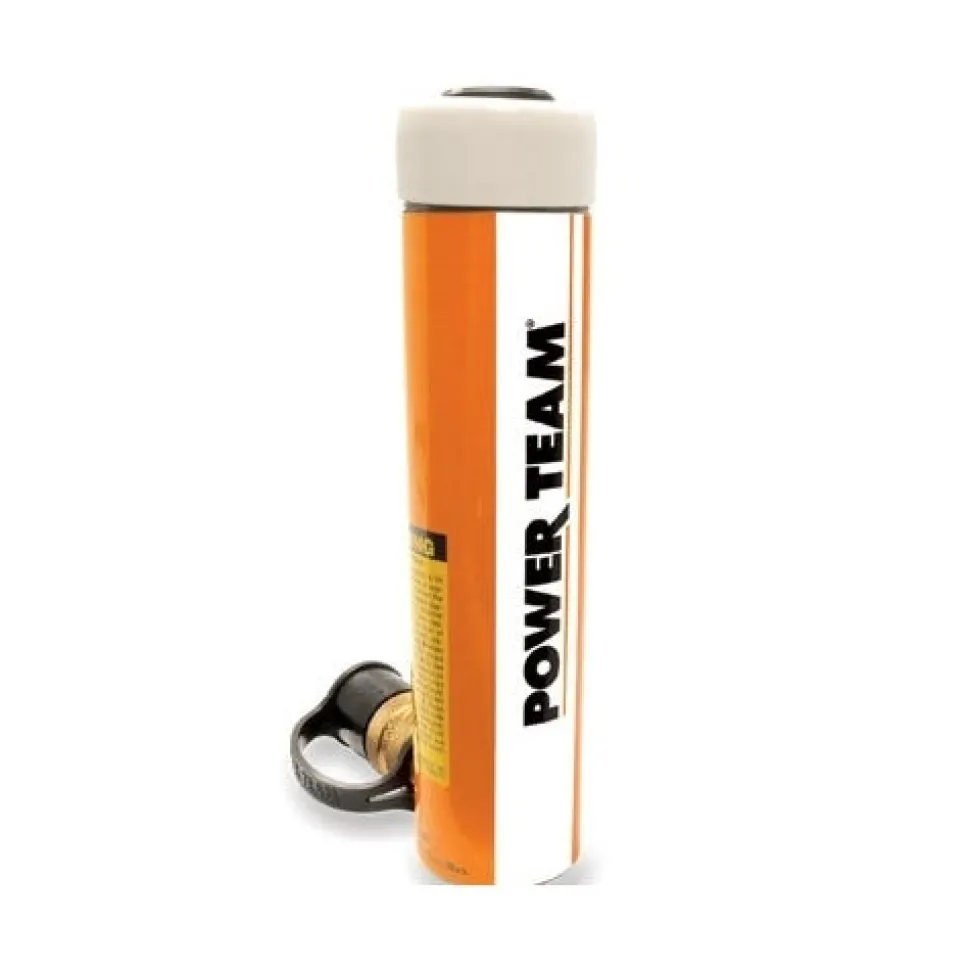

Power Team 25 Ton Hydraulic 14″ Single Acting Cylinder Spring Return C2514C

• Power Team
• RUGGED; HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING
• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8 NPTF female half coupler is standard.
• Order No.: C2512C
• Cylinder Capacity (Tons): 25
• Stroke (in.): 12 1/4
• Oil Cap. (cu. In.): .2
• Bore Diameter (in.): 2 4/7
• Cylinder Effective Area (sq. in): 5.15
• Internal Pressure at Cap. (psi): 9699
• Tons at 10;000 psi (psi): 25.8
• Weight (lbs.): 33.1
• Retracted Height (in.): 16 3/4
• Extended Height (in.): 29
• Outiside Diameter (in.): 3 3/8
• Collar Thread (in.): 3 5/16-12
• Piston Collar Thread Length (in.): 2
• Base to Port (in.): 1
• Piston Rod Diameter (in.): 2 1/4
• Piston Internal Thread and Depth (in.): 1 1/2-16 x 7/8
• Rod Protrusion (in.):  3/8

“
