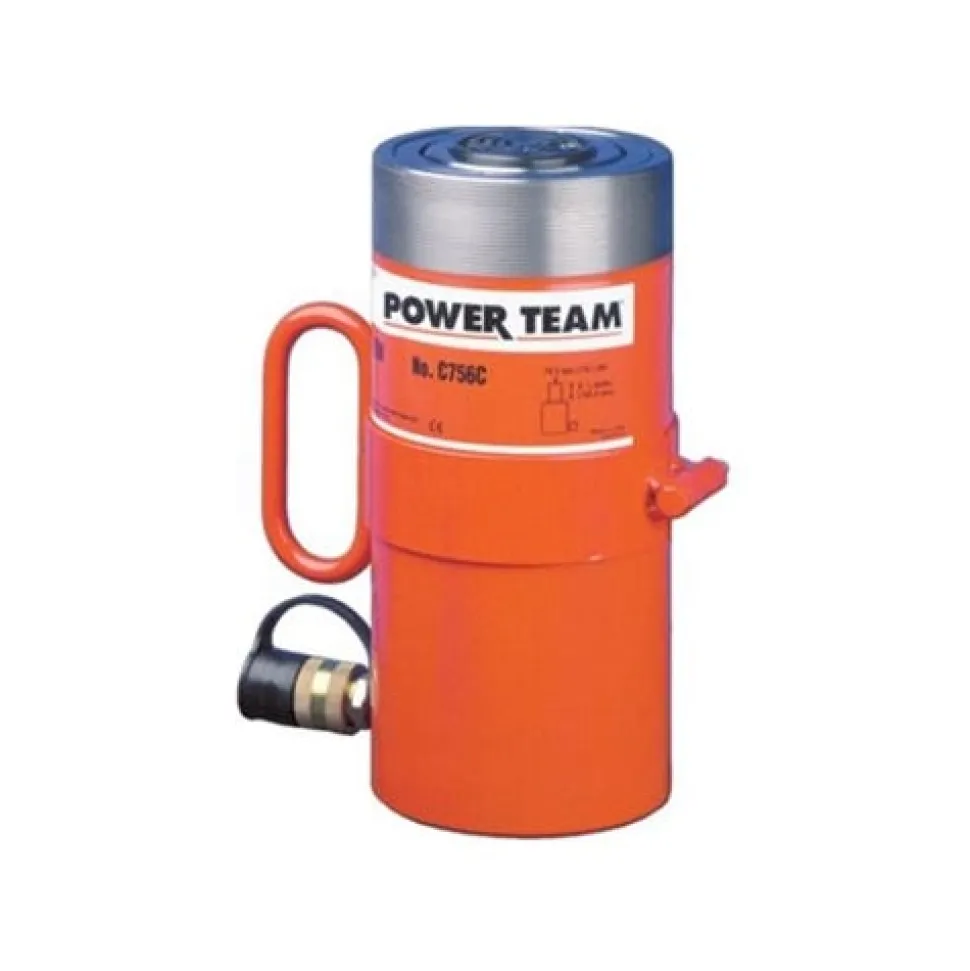

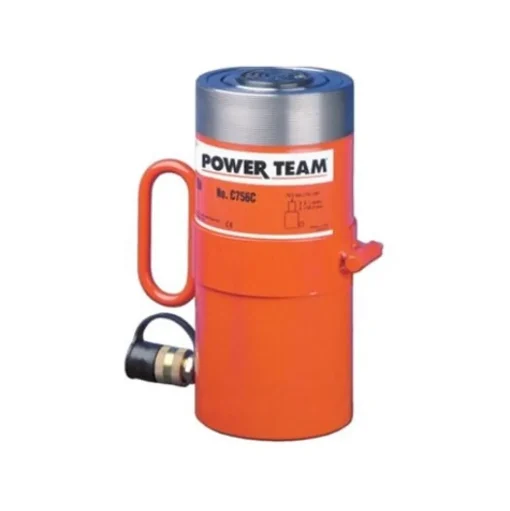

Power Team 25 Ton Hydraulic 2″ Single Acting Cylinder Spring Return C252C

Power Team

25 Ton Hydraulic 2 Single Acting Cylinder Spring Return C252C

The 25 Ton Hydraulic 2″ Single Acting Cylinder Spring Return is a Rugged; High Quality Cylinder Used For Lifting and Pressing.

FEATURES:

• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8″ NPTF female half coupler is standard.

SPECIFICATIONS:

Cylinder Capacity (Tons)	25
Stroke (in.)	2
Oil Cap. (cu. In.)	10.3
Bore Diameter (in.)	2 4/7
Cylinder Effective Area (sq. in)	5.15
Internal Pressure at Cap. (psi)	9699
Tons at 10;000 psi (psi)	25.8
Weight (lbs.)	13.9
Retracted Height (in.)	6 1/2
Extended Height (in.)	8 1/2
Outiside Diameter (in.)	3 3/8
Collar Thread (in.)	3 5/16-12
Piston Collar Thread Length (in.)	2
Base to Port (in.)	1
Piston Rod Diameter (in.)	2 1/4
Piston Internal Thread and Depth (in.)	1 1/2-16 x 7/8
Rod Protrusion (in.)	3/8

“
