Power Team 25 Ton Hydraulic 8″ Single Acting Cylinder Spring Return C258C

• Power Team
• 25 Ton 8 Stroke Single Acting Cylinder C258C
• Rugged; high quality cylinder used for fittings and pressing
• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8 Inch NPTF female half coupler is standard.
• Cylinder Capacity    25 tons
• Stroke    8.25 inches
• Oil Capacity    42.5 cu. inch
• Retracted Height – A    12 3/4 inches
• Extended Height – B    21 inches
• Outside Diameter – C    3 3/8 inches
• Collar Thread – D    3 5/16 – 12 inches
• Piston Collar Thread Length – E    1 15/16 inches
• Base to Port – F    1 inches
• Piston Rod Diameter – H    2 1/4 inches
• Piston Rod Int. Thread and Depth – J    1 1/2″- 16 x 7/8 inches
• Piston Rod Protrusion – K    3/8 inches
• Bore Diameter    2 9/16 inches
• Cylinder Effective Area    5;15 sq. inch
• Internal Pressure at Cap.    9699 psi
• Tons at 10000 psi    25.8
• Product Weight    25.6 lbs.
• Ship Weight    26.6 lbs.
• Standard Pack Qty    1

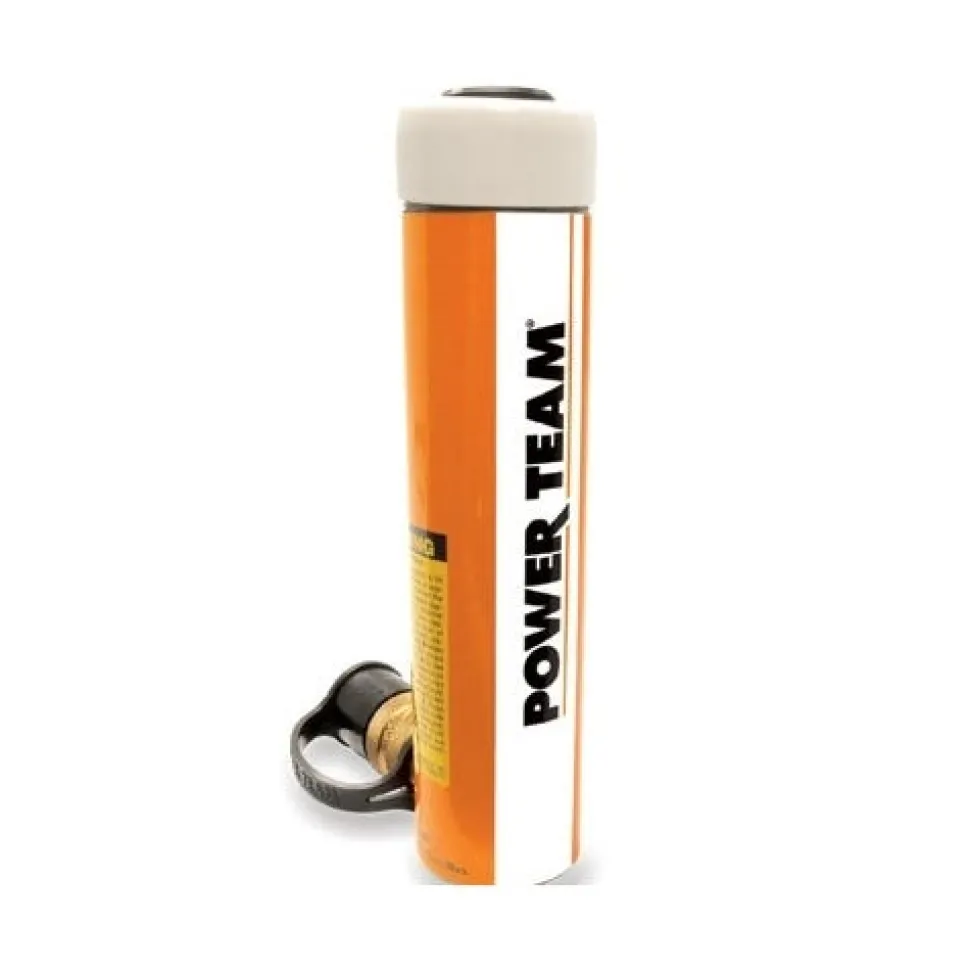

• ** Not Exact Picture

“
