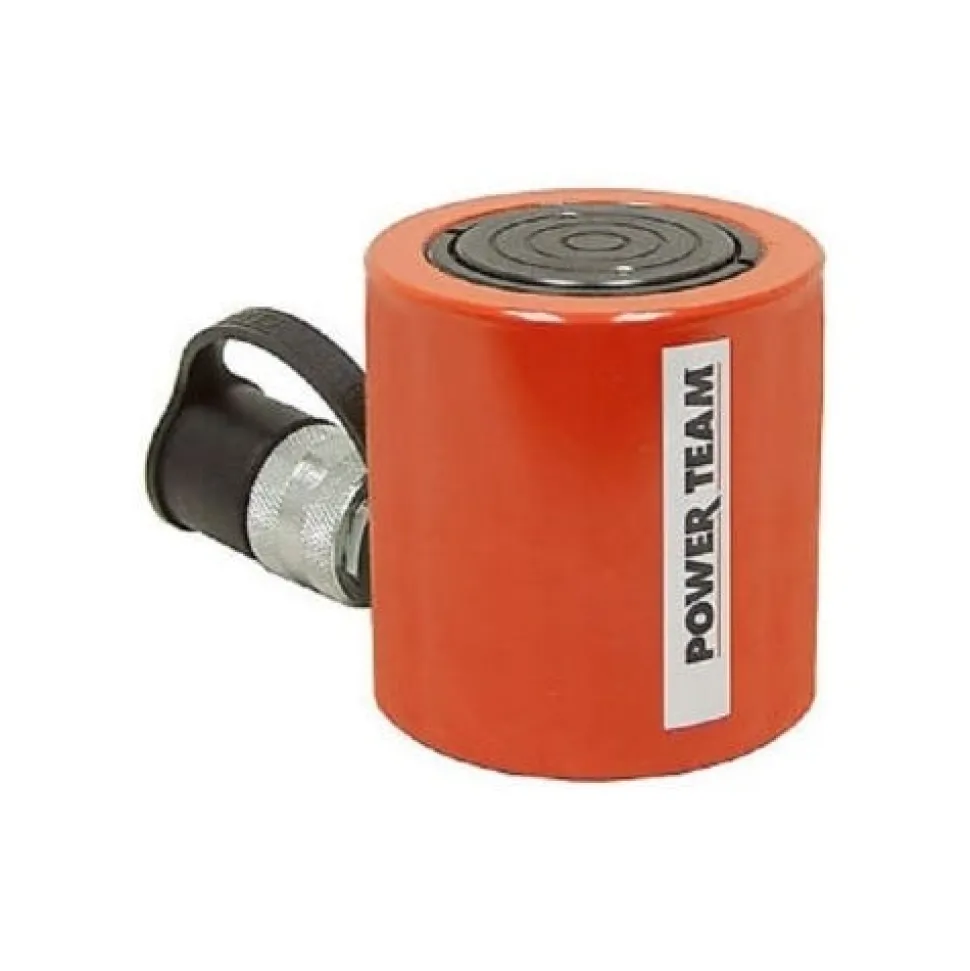

Power Team 250 Ton Hydraulic 13" Single Acting Cylinder Spring Return Shorty RSS2503

Power Team 250 Ton Hydraulic 13″ Single Acting Cylinder Spring Return Shorty RSS2503

Original price was: $8,985.00.Current price is: $132.89.

SKU: SKUCMzaYeTqMe Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
Power Tech plated piston rods and gland nuts resist scoring and corrosion.
Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
Grooved piston top keeps load from sliding.
Cylinders can be dead-ended at full capacity.
Removable carrying handles on 100 ton and 250 ton models.
Order No. : RLS750S
Cyl. Cap. (tons) : 250
Stroke (in.) : 3
Oil Cap. (cu. in.) : 150.6
Bore Dia. (in.) : 8
Cylinder Effective Area (sq. in.): 50.22
Internal Pressure at Cap. (psi): 9956
Tons at 10000 (psi) : 251.1
Weight (lbs.) : 220

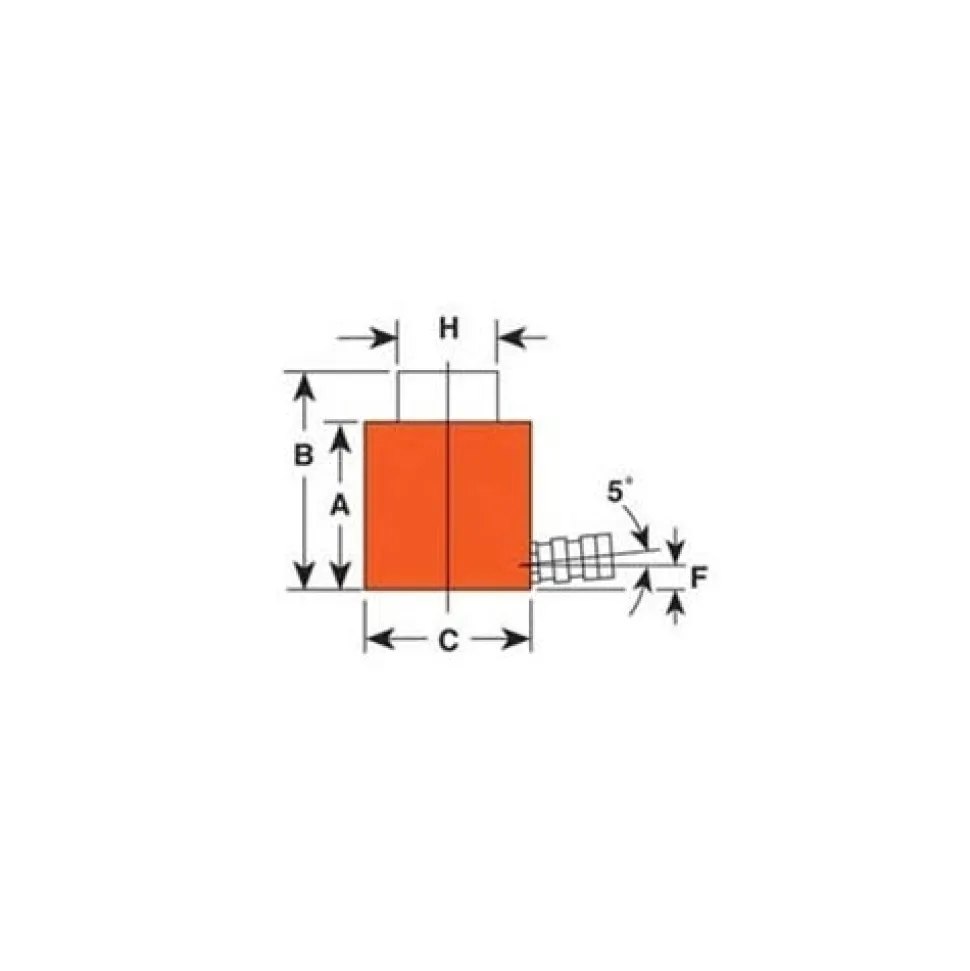

Retracted Ht. (in.) : 11 7/16
Extended Height (in.) : 14 7/16
Outside Dia. (in.) : 9 7/8
Base to Port (in.): 1 13/16
Piston Rod Prod Dia. (in.): 5 1/2

Specifications

More Information
OPT SKU	PTRSS2503
MPN	RSS2503
UPC/GTIN	662536003575
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	3″
Tonnage	250-Ton
Shipping Weight	240.00
