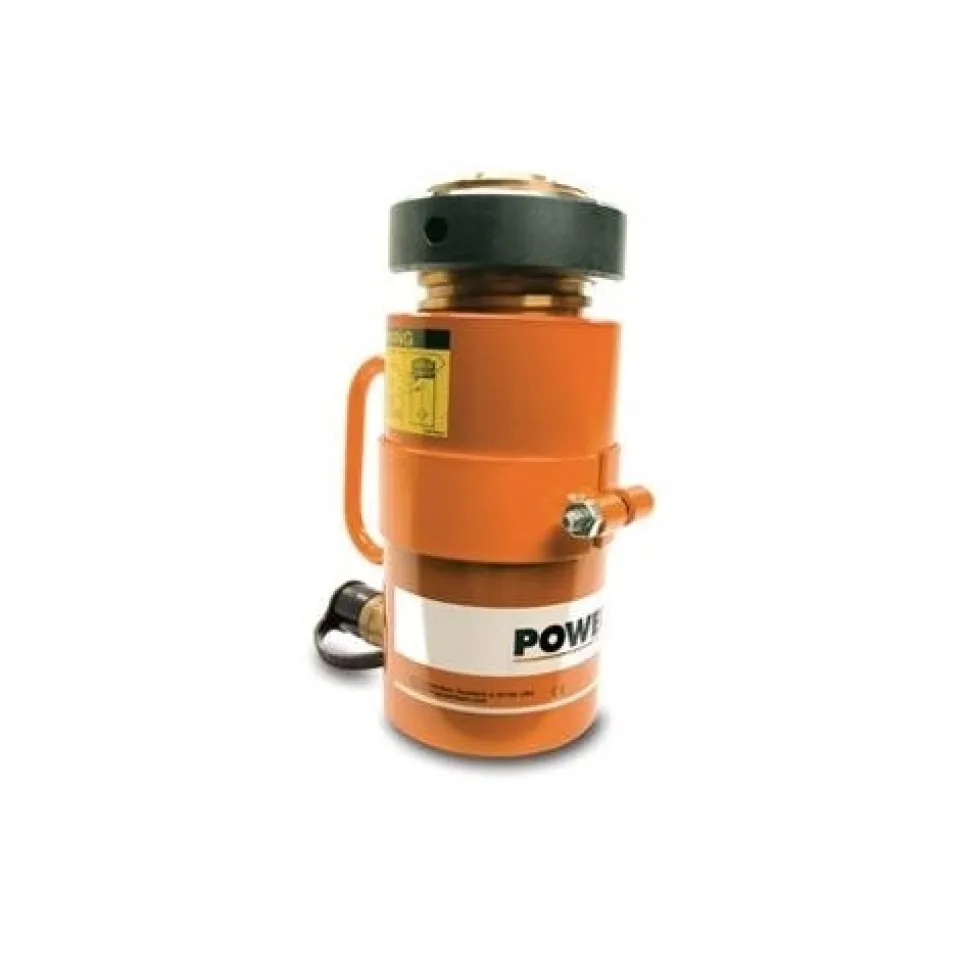

POSITIVE MECHANICAL LOCK TO SUPPORT LOAD.
Supports lifted load for extended periods of time with hydraulic pressure released.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
All cylinders feature coated pistons to resist corrosion and abrasion.

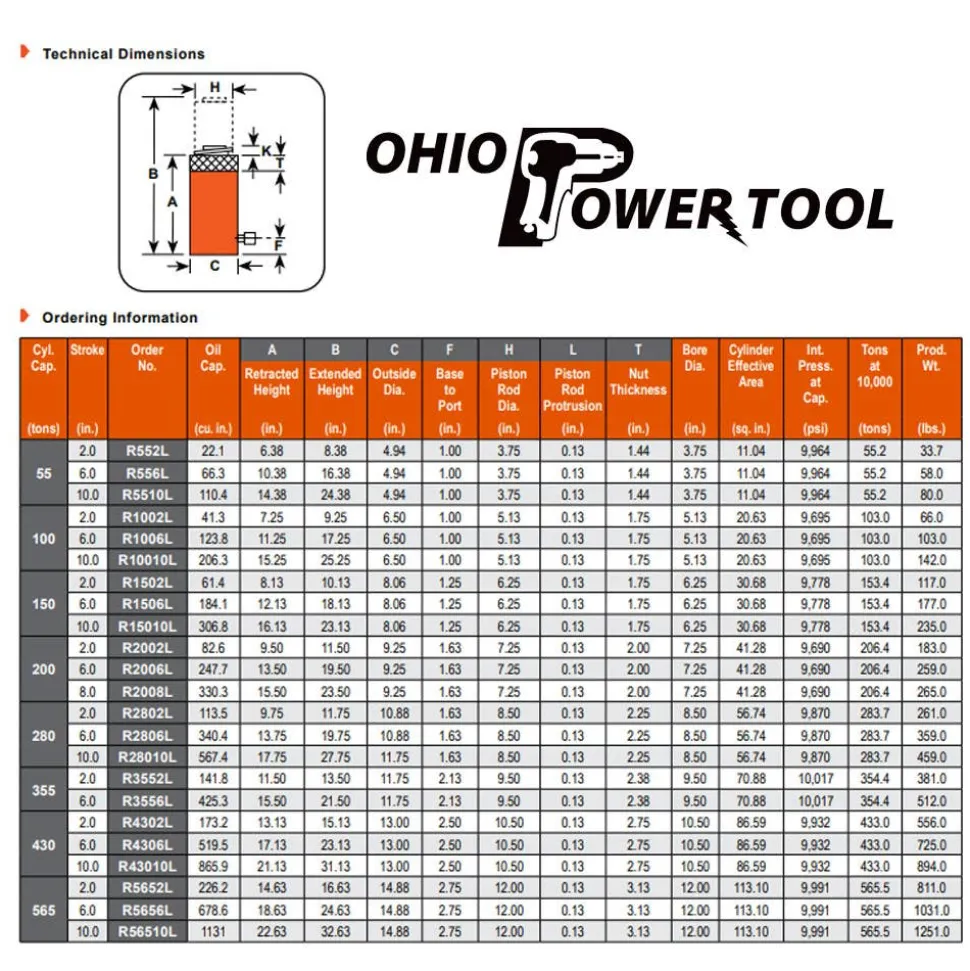

Order No. : R2802L
Cyl. Cap. (tons.): 280
Stroke (in.) : 2
Oil Cap. (cu. in.): 113.5
Bore Dia. (in.): 8 1/2
Cylinder Effective Area (sq. in.) 56.74
Internal Pressure at Cap. (psi) 9;870
Tons at 10000 (psi): 283.7
Weight (lbs.) : 261
Retracted Ht. (in.): 9 3/4
Extended Ht. (in.): 11 3/4
Outside Dia. (in.): 10 7/8
Base to Port (in.): 1 5/8
Piston Rod Dia. (in.) 8 1/2
Piston Rod Protrusion (in.): 1/8
Nut Thickness (in.): 2 1/4
| OPT SKU | PTR2802L |
|---|---|
| MPN | R2802L |
| UPC/GTIN | 662536313728 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 2″ |
| Tonnage | 280-Ton |
| Shipping Weight | 275.00 |
