Power Team 30 Ton Hydraulic 1/2″ Low Profile Spring Return Cylinder RLS300

• Power Team
• IDEAL FOR CONFINED AREAS FROM 1 5/8 TO 4″ CLEARANCE.
• Cylinder body; piston and gland nut Power Tech treated for corrosion and abrasion resistance.
• Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of offcenter loading.
• Unique heavy duty spring provides fast piston return.
• A 9796 3/8″ NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8″ coupler which is not angled). Oil ports are 3/8″ NPTF.
• Couplers on all cylinders; except RLS50; are angled upward for extra clearance.

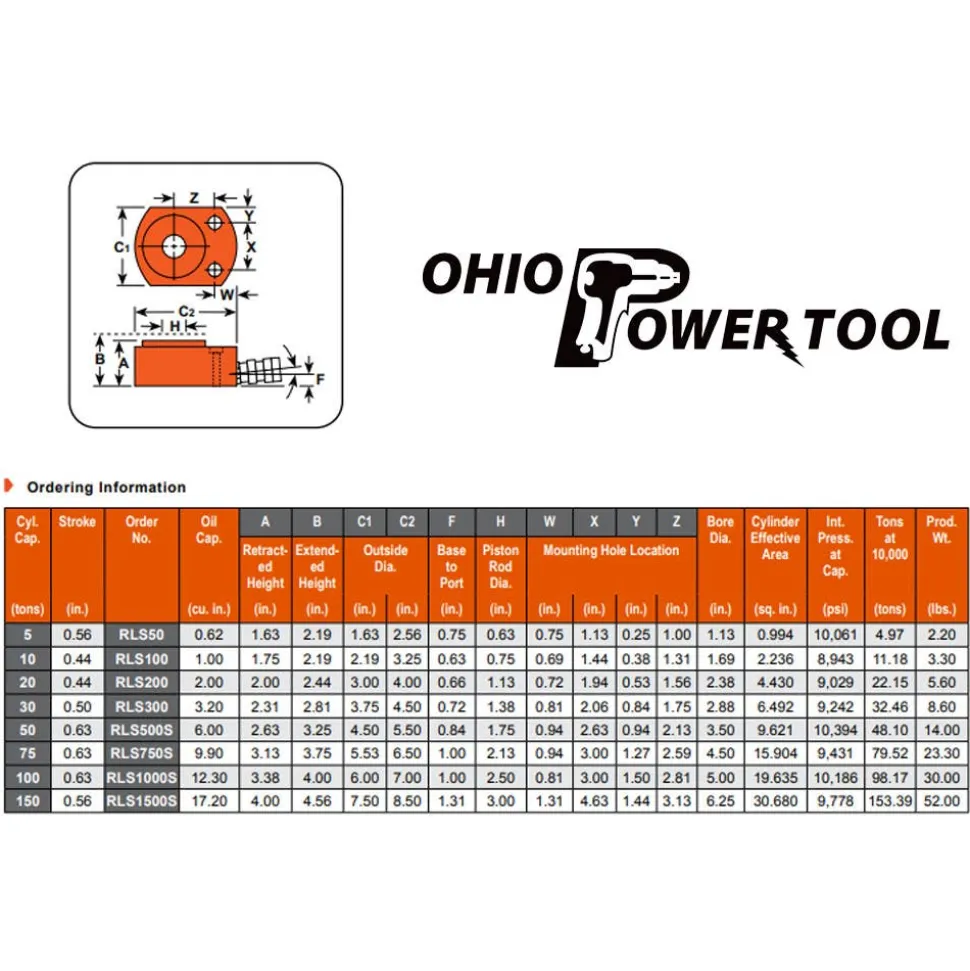

• Order No. : RLS300
• Cyl. Cap. (tons): 30
• Stroke (in.) :    1/2
• Oil Cap. (cu. in.): 3.2
• Bore Dia. (in.): 2 7/8
• Cyl. Eff. Area (sq. in.): 6.492
• Int. Press at Cap. (psi): 9;242
• Tons at 10000 (psi): 32.46
• Weight (lbs.) : 8.6
• Order No. : RLS300
• Retracted Height : 2  5/16
• Extended Height : 2 13/16
• Outside Dia. : 3 3/4 x 4 1/2
• Base to Port : 23/32
• Piston Rod Prod. Dia.: 1 3/8

“
