Power Team 30 Ton Hydraulic 2-1/2″ Single Acting Cylinder Center Hole RH302

Power Team SPX

Power Team 30 ton hydraulic 2-1/2 single acting cylinder center hole RH302

Center hole cylinder ideal for pulling and tensioning cables; anchor bolts with interchangeable piston head inserts

FEATURES:

• Basic head can be changed from a tapped hole to plain hole by simply changing insert
• 12; 20; 30; 50; 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full “dead-end” loads
• Corrosion resistant standpipe has “Power Tech” treatment
• All cylinders except RH120 are furnished with a 9796 3/8″ NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

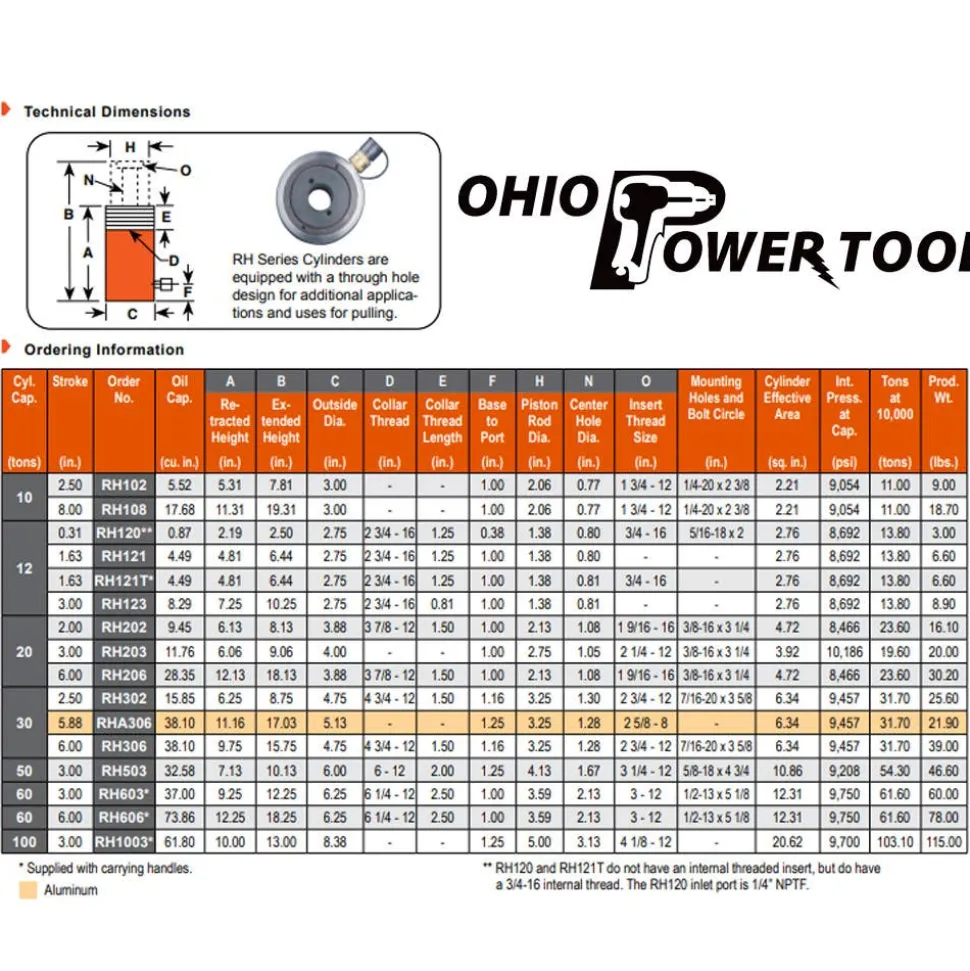

SPECIFICATIONS:

Stroke length:	2.500″
Piston rod diameter:	3.250″
Series/type:	RT-Series/Center hole
Actuation/return:	Single acting/Spring return
Cylinder capacity:	30 Ton
Oil capacity:	15.850″³
Retracted height:	6.250″
Extended height:	8.750″
Effective area:	6.340″²
Tons at 10;000 PSI:	31.70 Ton
Max pressure:	10;000 PSI
Bore size:	2.841″
Base to port:	1.156″
Outside diameter:	4.750″
Center hole diameter:	1.297″
Collar thread:	4-3/4-12
Collar thread length:	1.500″
Insert thread size:	2-3/4-12
Material:	Aluminum
Weight:	25.60lbs

“
