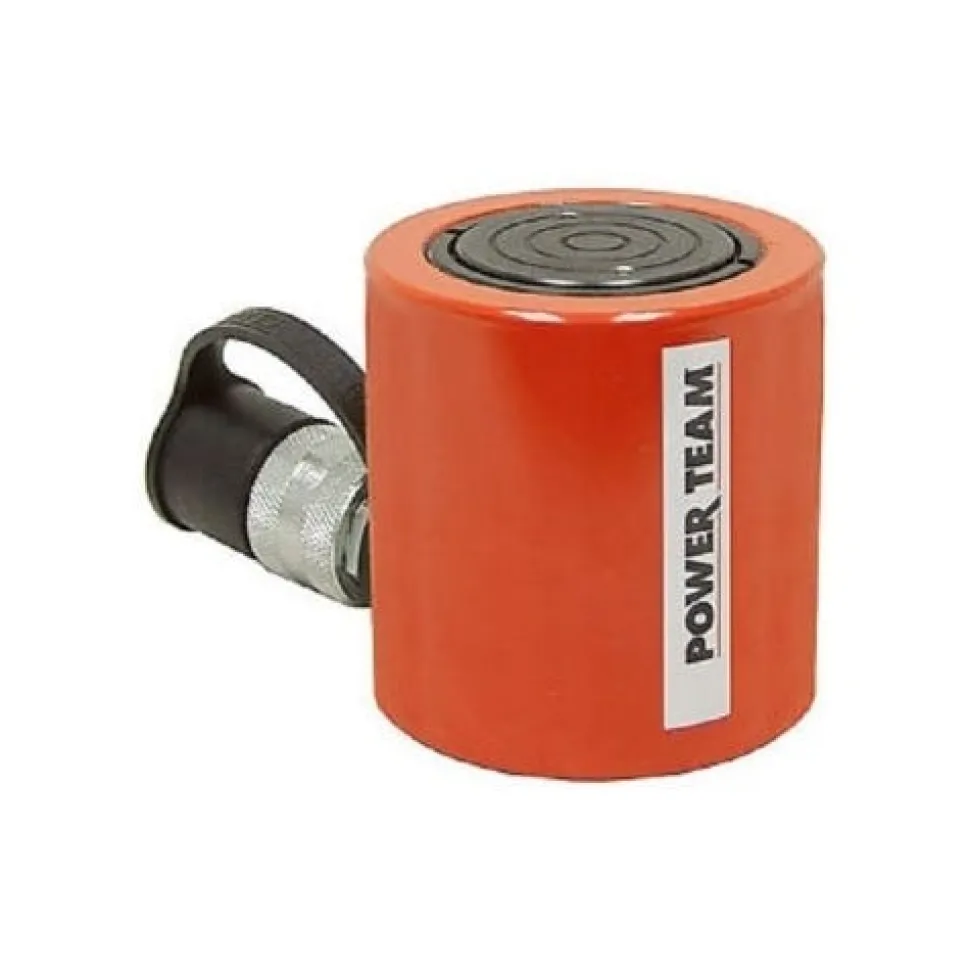

Power Team 30 Ton Hydraulic 2-7/16" Single Acting Cylinder Spring Return Shorty RSS302

Power Team 30 Ton Hydraulic 2-7/16″ Single Acting Cylinder Spring Return Shorty RSS302

Original price was: $1,266.00.Current price is: $136.89.

SKU: SKUfDKaRxTOwq Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
Power Tech plated piston rods and gland nuts resist scoring and corrosion.
Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
Grooved piston top keeps load from sliding.
Cylinders can be dead-ended at full capacity.
Removable carrying handles on 100 ton and 250 ton models.
Order No.: RSS302
Cyl Cap. (tons) : 30
Stroke (in.) : 2 7/16
Oil Cap. (cu. in.) Push: 15.8
Oil Cap. (cu. in.) Return:
Bore Dia. (in.) : 2 7/8
Cylinder Effective Area (sq. in.) Push: 6.49
Internal Press at Cap. (psi) Push: 9;243
Tons at 10000 (psi) Push: 32.5
Weight (lbs.) : 14.7

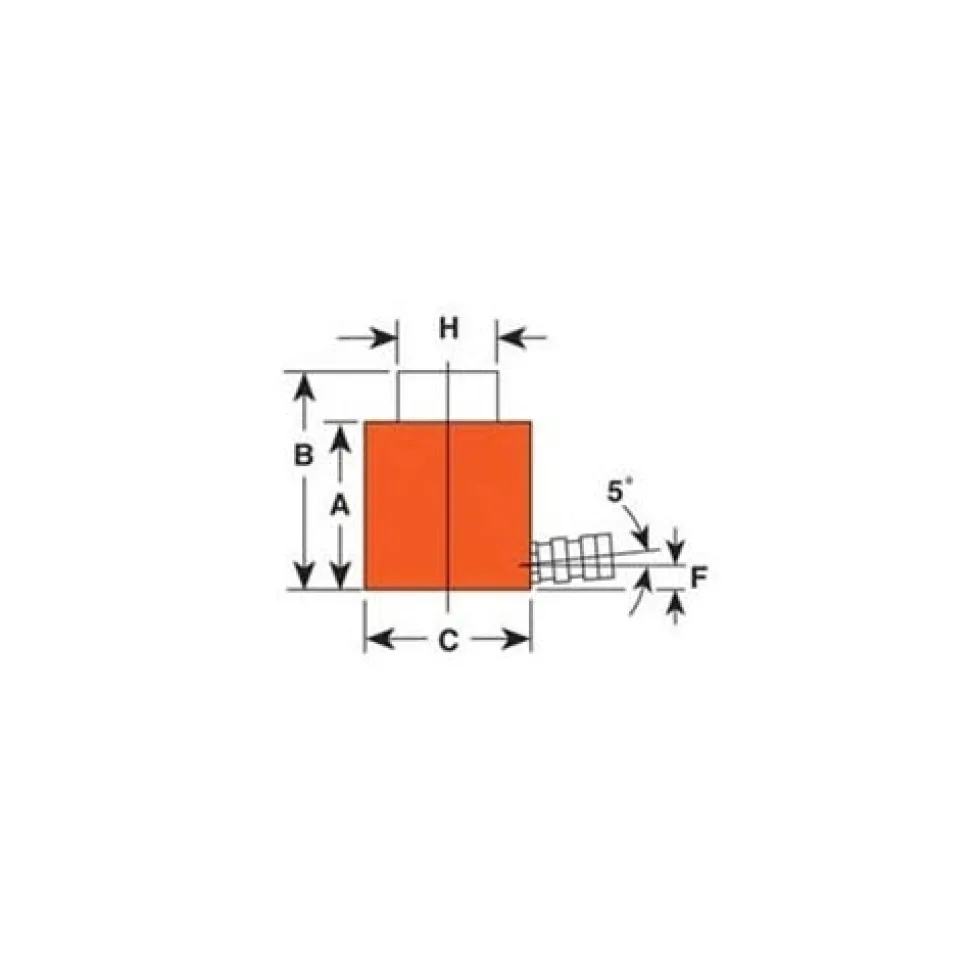

Retracted Height (in.) : 4 5/8
Extended Height (in.) : 7 1/16
Outside Dia. (in.) : 4
Base to Port (in.) : 5/8
Piston Rod Dia. (in.) : 2 1/2

Specifications

More Information
OPT SKU	PTRSS302
MPN	RSS302
UPC/GTIN	662536003582
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	2-1/2″
Tonnage	30-Ton
Shipping Weight	19.00
