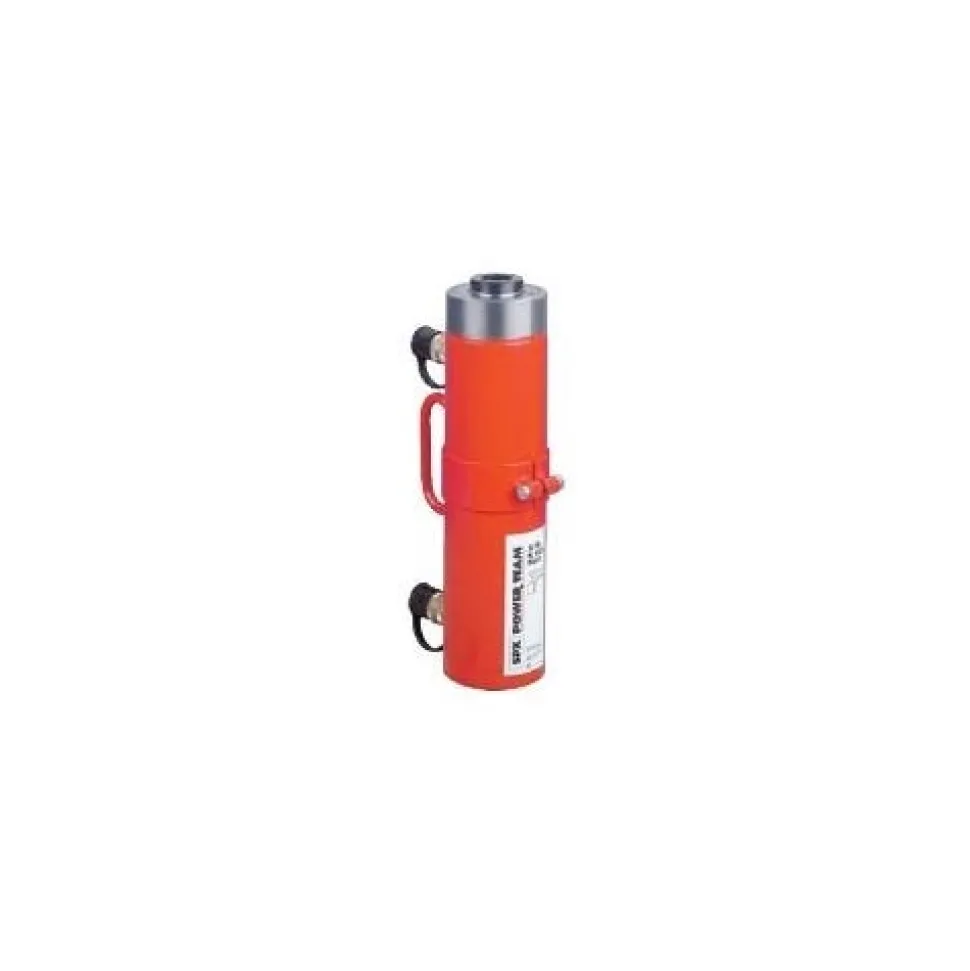

Power Team 30 Ton Hydraulic 3″ Double Acting Cylinder Center RH303

Power Team SPX

Power Team 30 ton hydraulic 3 double acting cylinder center hole RH303

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers.

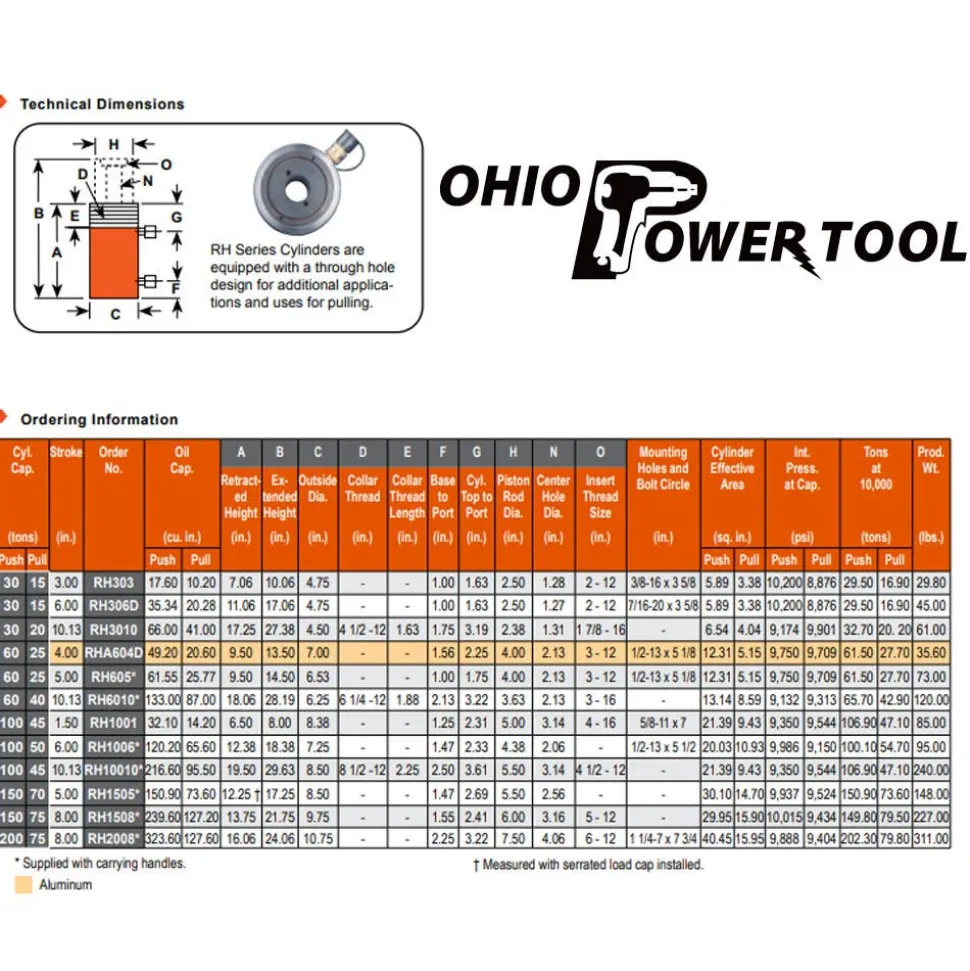

SPECIFICATIONS:

Stroke length:	3.000″
Piston rod diameter:	2.500″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	30 Ton
Pull capacity:	15 Ton
Oil capacity:	17.600″³
Pull/return oil capacity:	10.200³
Retracted height:	7.063″
Extended height:	10.063″
Effective area:	5.890″²
Pull cylindrical effective area:	3.380″²
Tons at 10;000 PSI:	29.50 Ton
Pull tons at 10;000 PSI:	16.90 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	8;876 PSI
Bore size:	2.739″
Base to port:	1.000″
Outside diameter:	4.750″
Center hole diameter:	1.281″
Insert thread size:	2-12
Cylinder material:	Steel
Cylinder top to diameter:	1.625″
Weight:	29.80lbs

“
