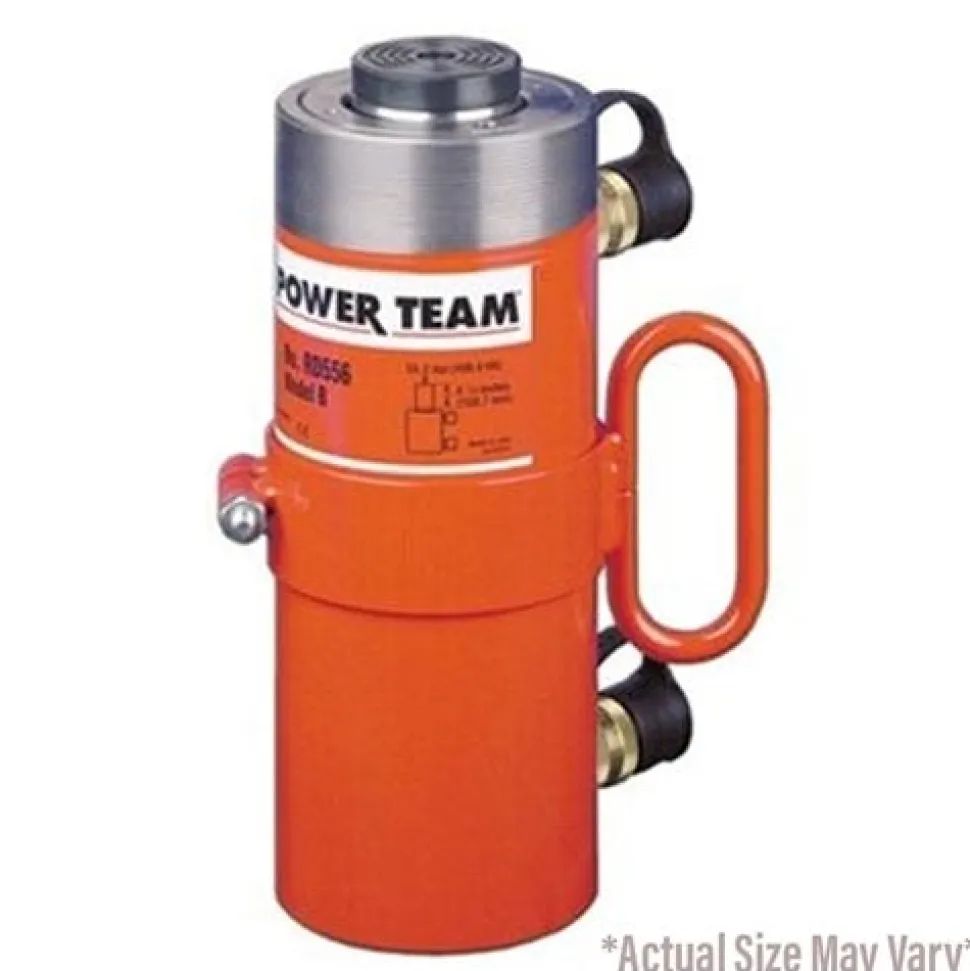

Power Team 300 Ton Hydraulic 6″ Double Acting Cylinder RD3006

• Power Team
• Financing is available – Click here for details
• HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
• Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
• Grooved ring pattern in load cap helps guard against load slippage.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.

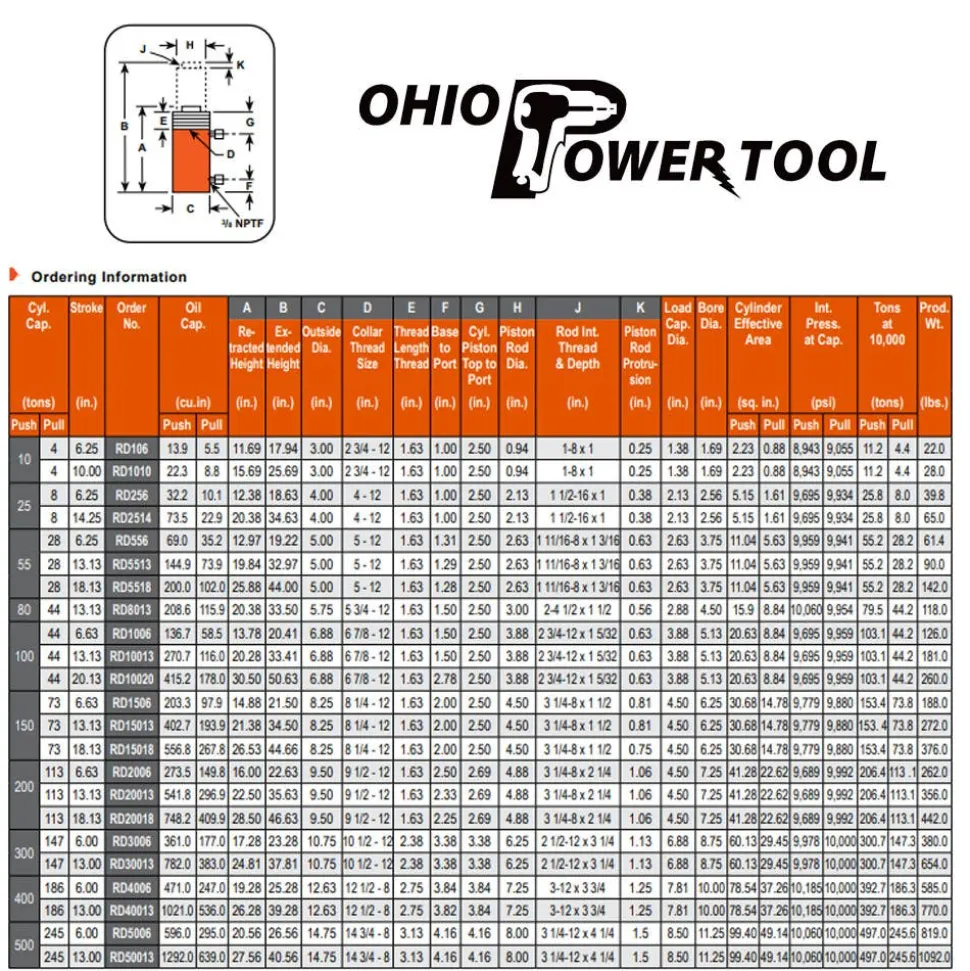

• Order No.  : RD3006
• Cyl. Cap. (tons) Push: 300
• Cyl. Cap. (tons) Pull: 147
• Stroke (in.)  : 6
• Oil Capacity (cu.in) Push: 361
• Oil Capacity (cu.in) Pull: 177

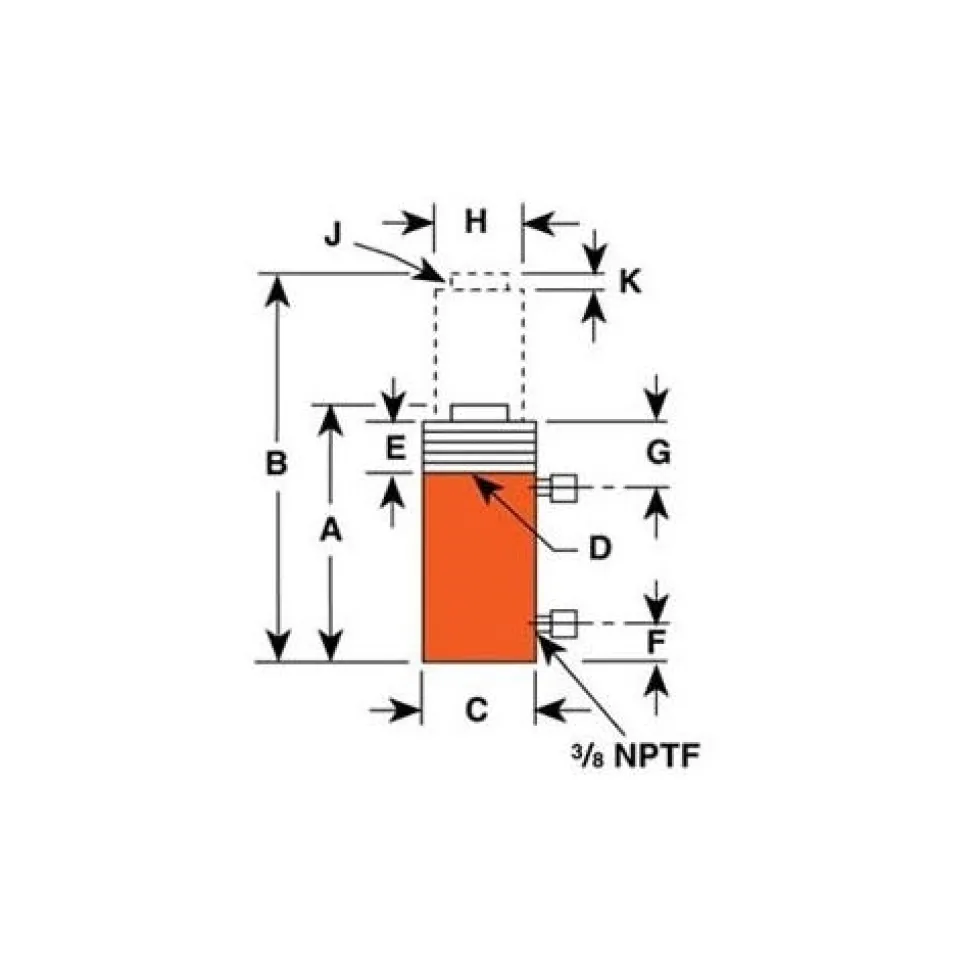

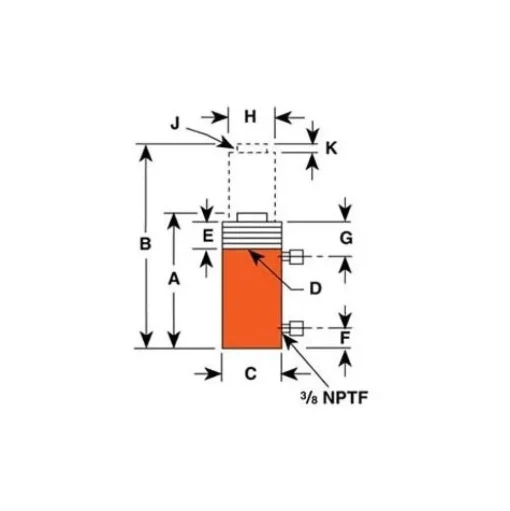

• Load Cap Dia. (in.) : 6 7/8
• Bore Dia. (in.)  : 8 3/4
• Cyl. Eff. Area (sq.in.) Push: 60.13
• Cyl. Eff. Area (sq.in.) Pull: 29.45
• Int. Press. at Cap. (psi) Push: 9;978
• Int. Press. at Cap. (psi) Pull: 10;000
• Tons at 10;000 psi  Push: 300.7
• Tons at 10;000 psi  Pull: 147.3
• Weight (lbs.)  : 380
• Ret. Height (in.) : 17  9/32
• Ext. Height (in.) : 23  9/32
• Outside Dia. (in.) : 10 3/4
• Collar Thread Size (in.) : 10 1/2-12
• Thread Length Thread (in.) : 2 3/8
• Base to Port trusion (in.) : 3 3/8
• Cylinder Piston Top to Port (in.): 3 3/8
• Piston Rod Dia. Depth (in.) : 6 1/4
• Rod Int. and (in.) : 2 1/2-12×3 1/4
• Piston Rod Protrusion (in.)  : 1 1/8

“
