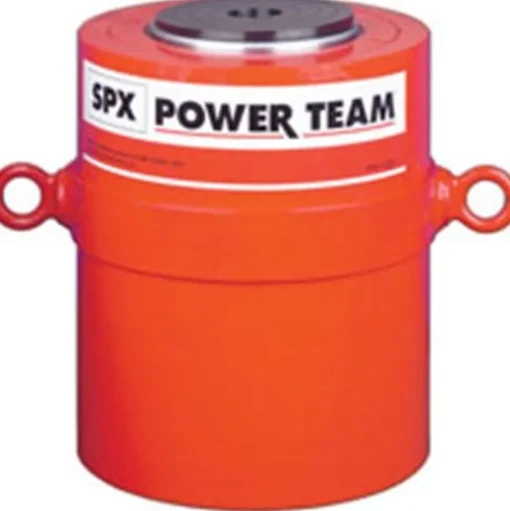

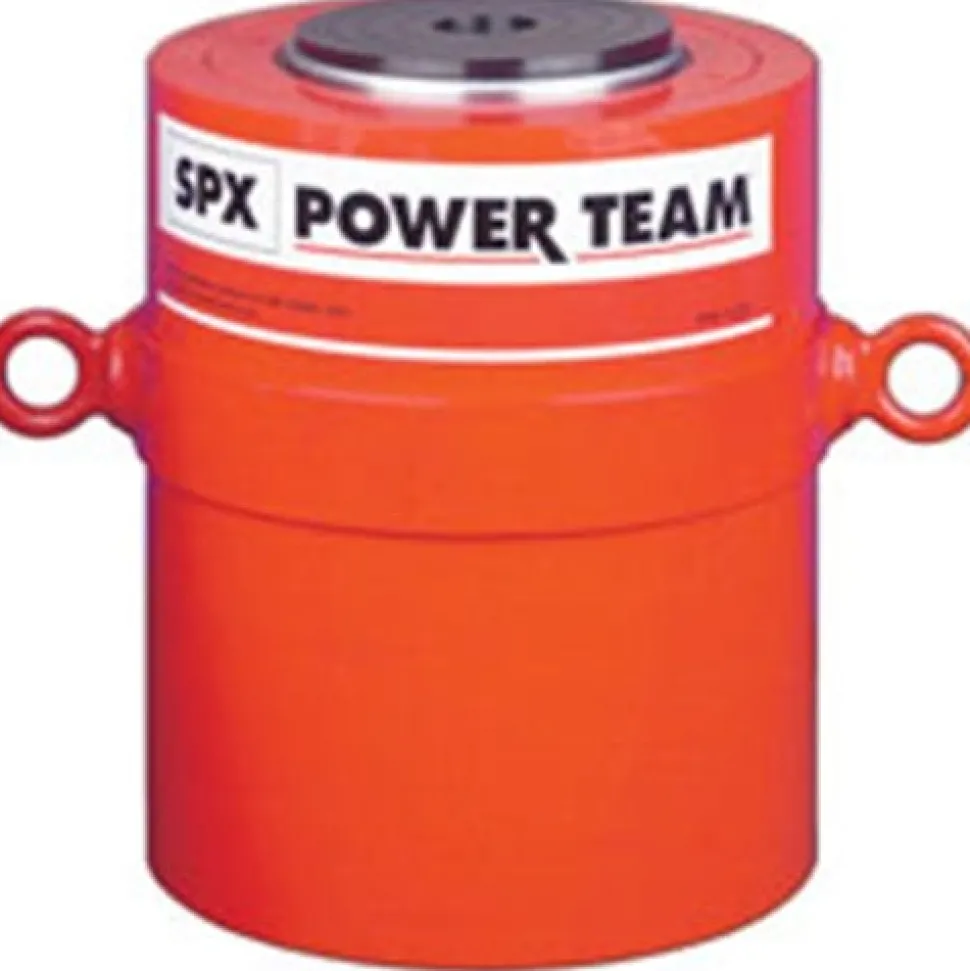

Power Team 355 Ton 6″ Stroke Hydraulic Return Cylinder R3556D

• Power Team
• Financing is available – Click here for details
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.

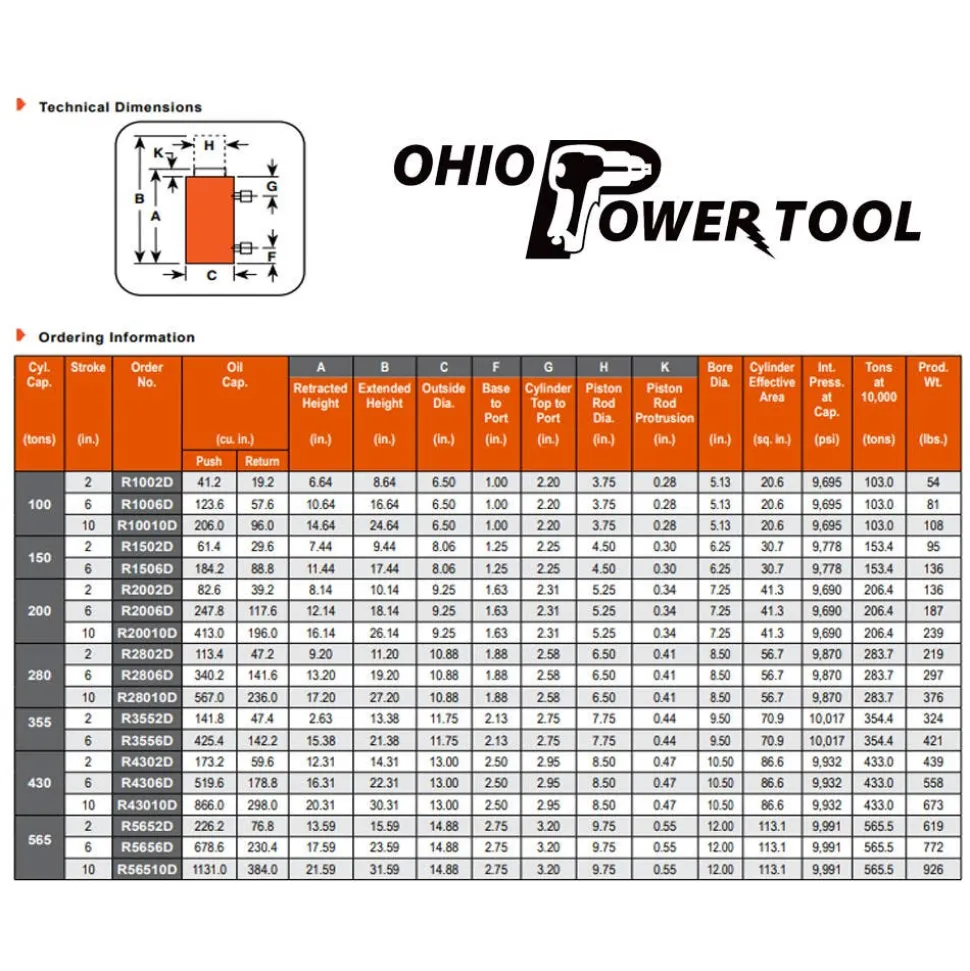

• Order No.    : R3556D
• Cyl. Cap. (tons)  : 355
• Stroke (in.)   : 6
• Oil Capacity/Height (cu. in.)  Push: 425.4
• Oil Capacity/Height (cu. in.)  Return: 142.2
• Bore Area (in.)   : 9 1/2
• Cylinder Effective Press. (sq. in.) Push: 70.9
• Internal Tons 10000 at Cap. (psi) Push: 10;017
• Tons at Wt. (psi)  Push: 354.4
• Weight (lbs.)   : 421
• Retracted Height (in.)  : 15 3/8
• Extended Height (in.)  : 21 3/8
• Outside Port (in.)  : 11 3/4
• Base to Port (in.)  : 2 1/8
• Cylinder Top to Dia. (in.) : 2 3/4
• Piston Rod Dia. (in.) : 7 3/4
• Piston Rod Protrusion (in.) :    7/16

“
