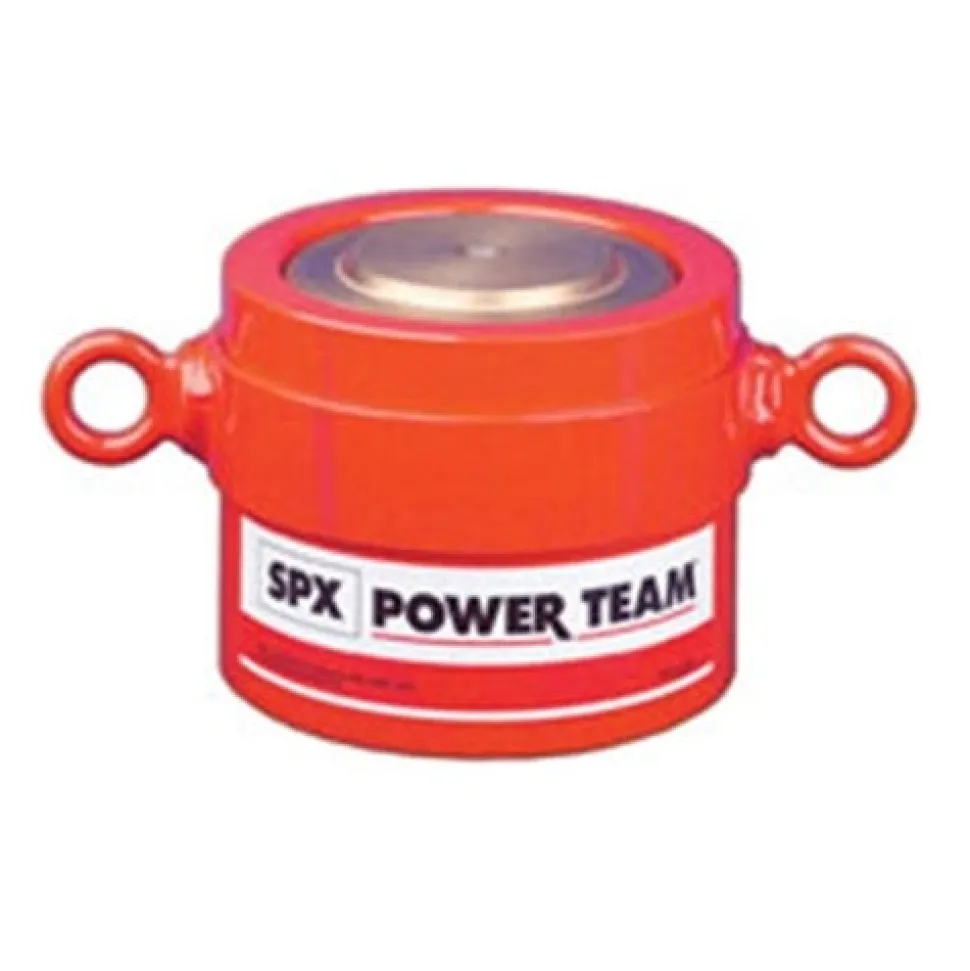

Power Team 430 Ton Hydraulic 2" Single Acting Load Return Cylinder R4302C

Power Team 430 Ton Hydraulic 2″ Single Acting Load Return Cylinder R4302C

$138.89

SKU: SKURf3Bi0GsHX Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

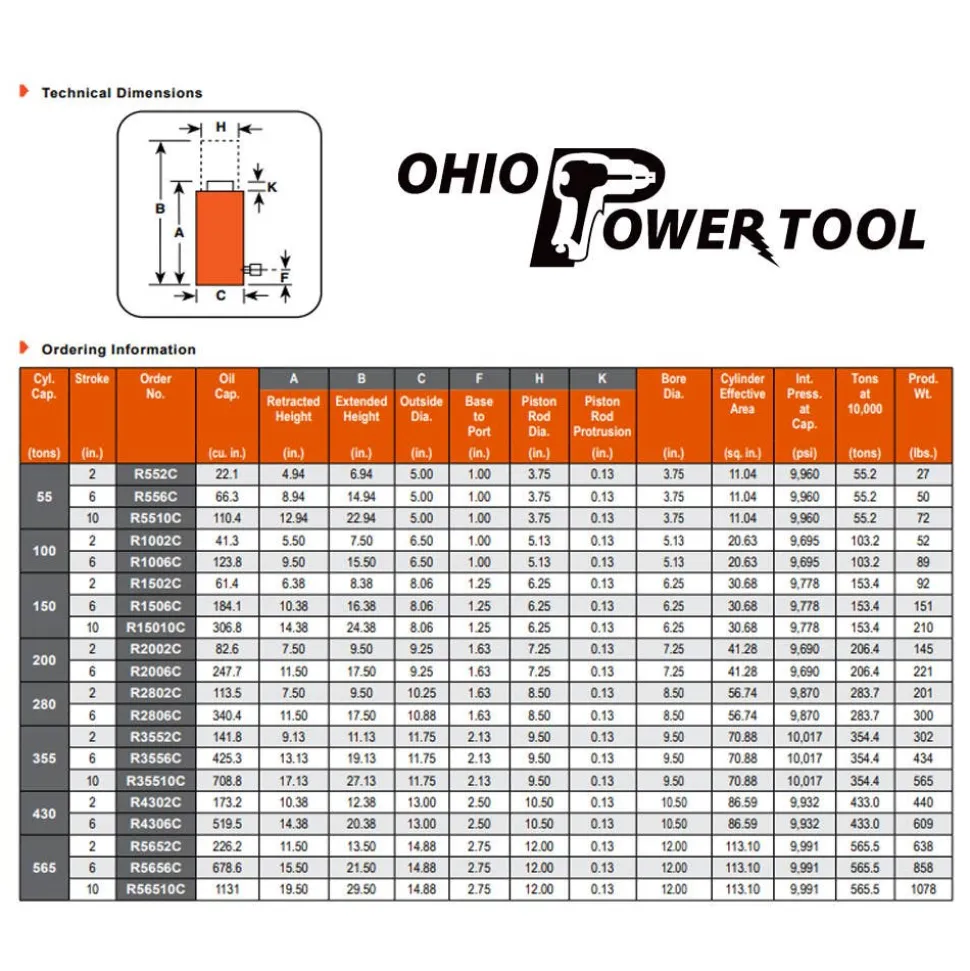

Order No. : R4302C
Cyl. Cap. (tons) : 430
Stroke (in.) : 2
Oil Cap. (cu. in.) : 173.2
Bore Dia. (in.) : 10 1/2
Cylinder Effective Area (sq. in.): 86.59
Internal Pressure at Cap. (psi): 9;932
Tons at 10000 (psi) : 433
Weight (lbs.) : 440

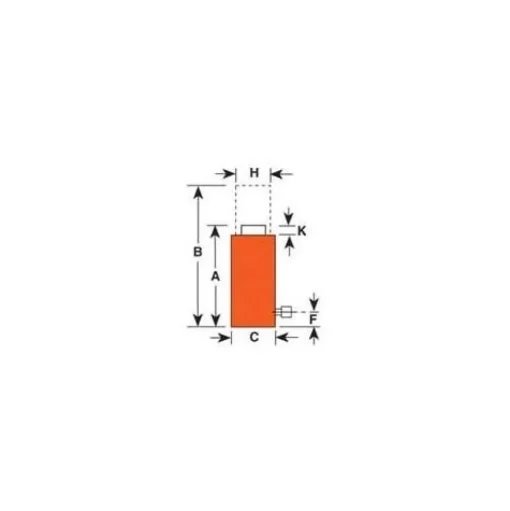

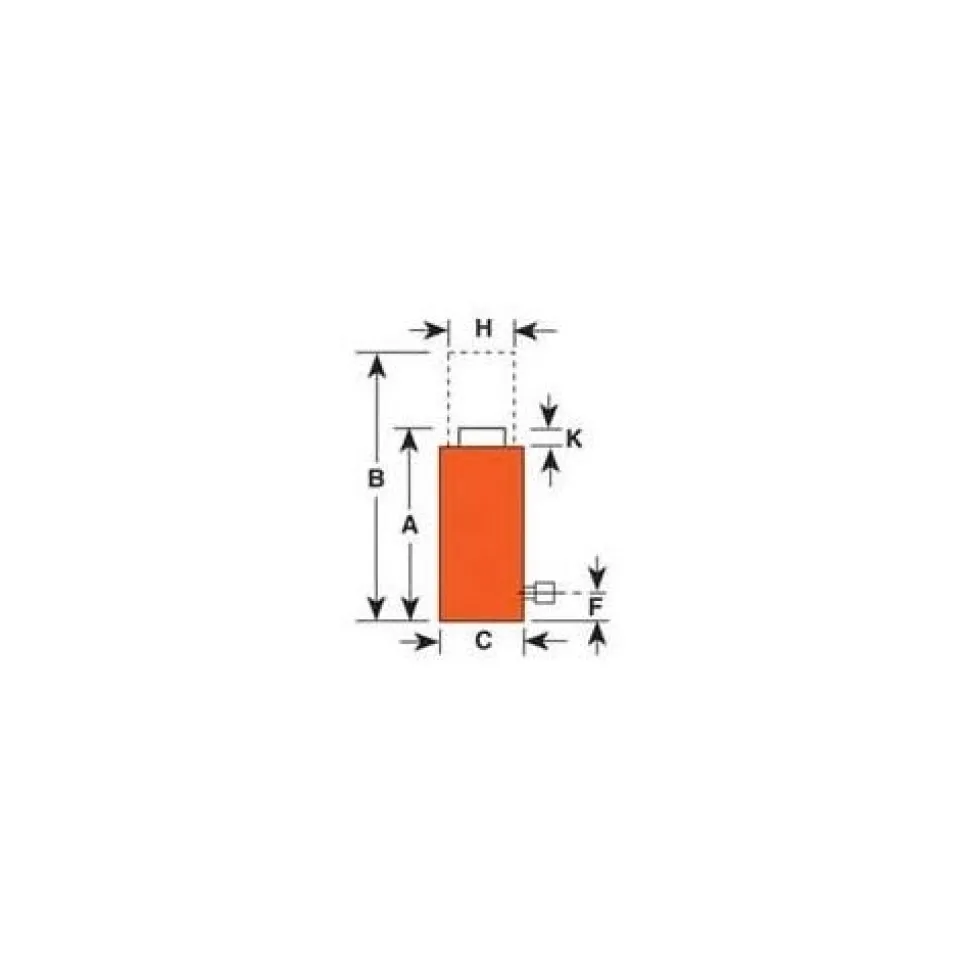

Retracted Height (in.) : 10 3/8
Extended Height (in.) : 12 3/8
Outside Dia. (in.) : 13
Base to Port (in.) : 2 1/2
Piston Rod Dia (in.): 10 1/2
Piston Rod Protrusion (in.): 1/8

Specifications

More Information
OPT SKU	PTR4302C
MPN	R4302C
UPC/GTIN	662536282321
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	2″
Tonnage	430-Ton
Shipping Weight	440.00
