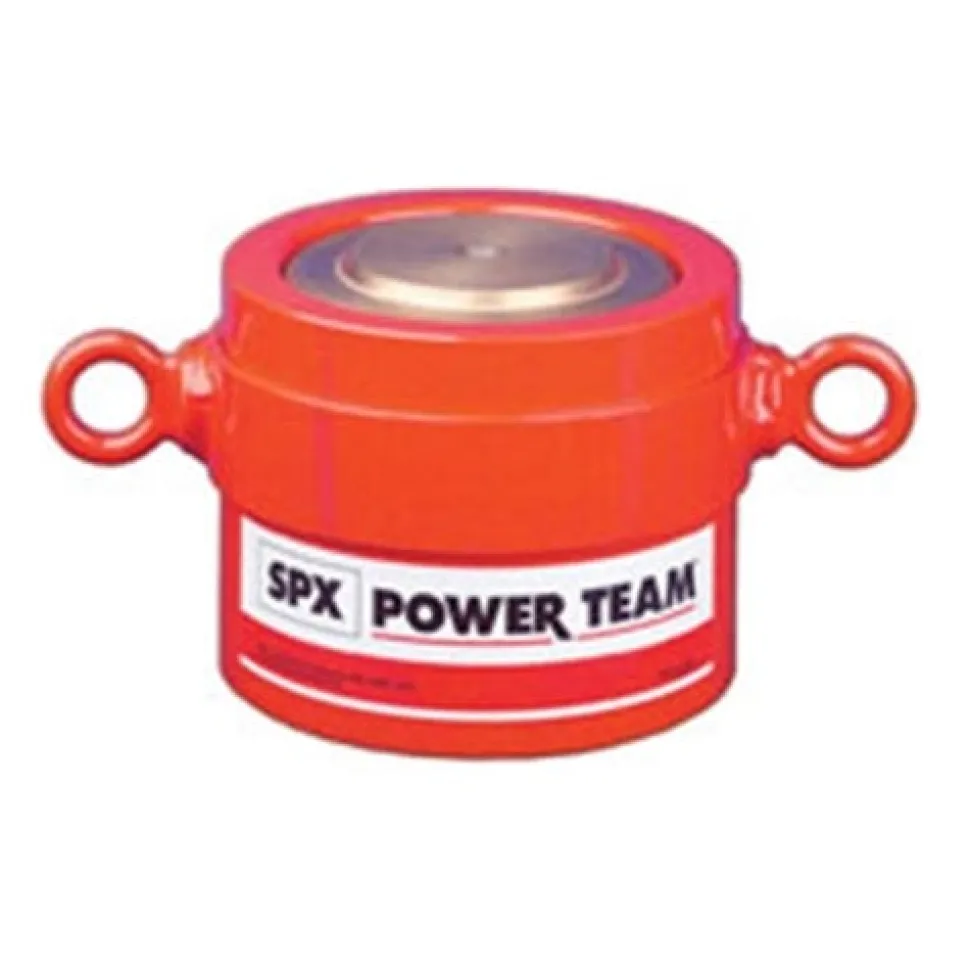

Power Team 430 Ton Hydraulic 6" Single Acting Load Return Cylinder R4306C

Power Team 430 Ton Hydraulic 6″ Single Acting Load Return Cylinder R4306C

Original price was: $13,686.00.Current price is: $132.89.

SKU: SKUH8YIxSTpa5 Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

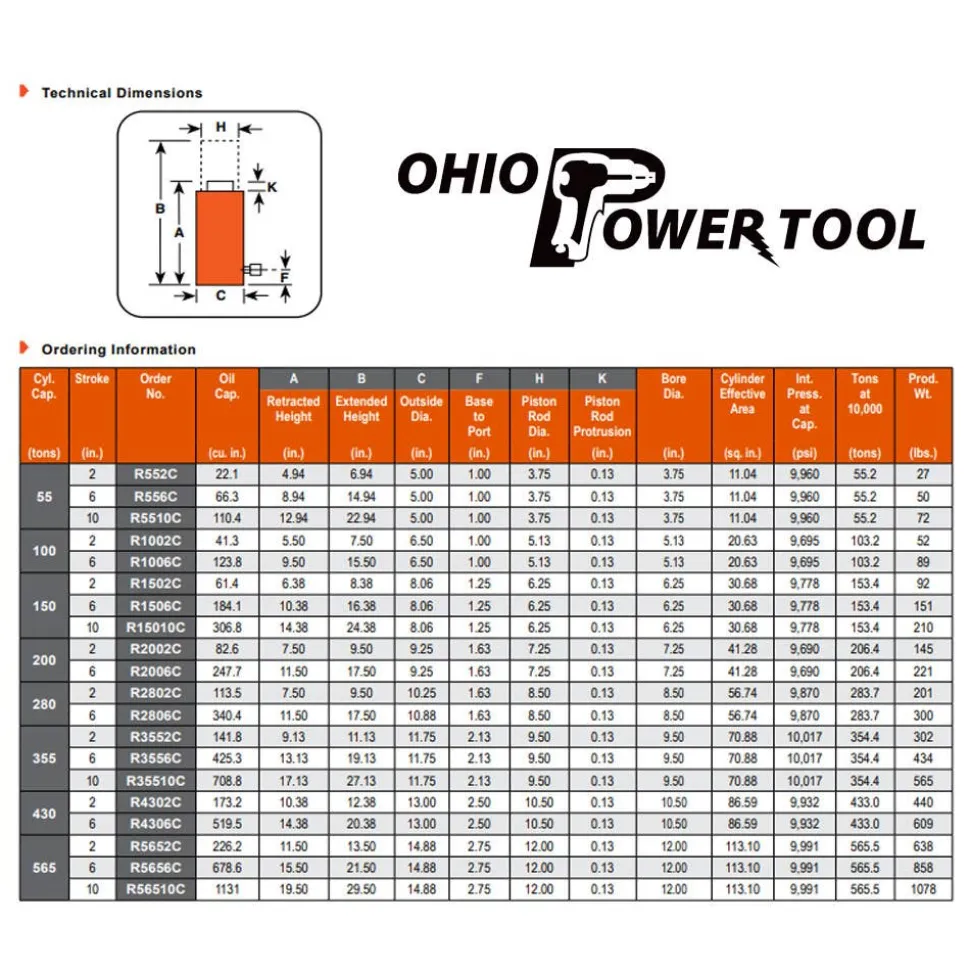

Order No. : R4306C
Cyl. Cap. (tons) : 430
Stroke (in.) : 6
Oil Cap. (cu. in.) : 519.5
Bore Dia. (in.) : 10 1/2
Cylinder Effective Area (sq. in.): 86.59
Internal Pressure at Cap. (psi): 9;932
Tons at 10000 (psi) : 433
Weight (lbs.) : 609

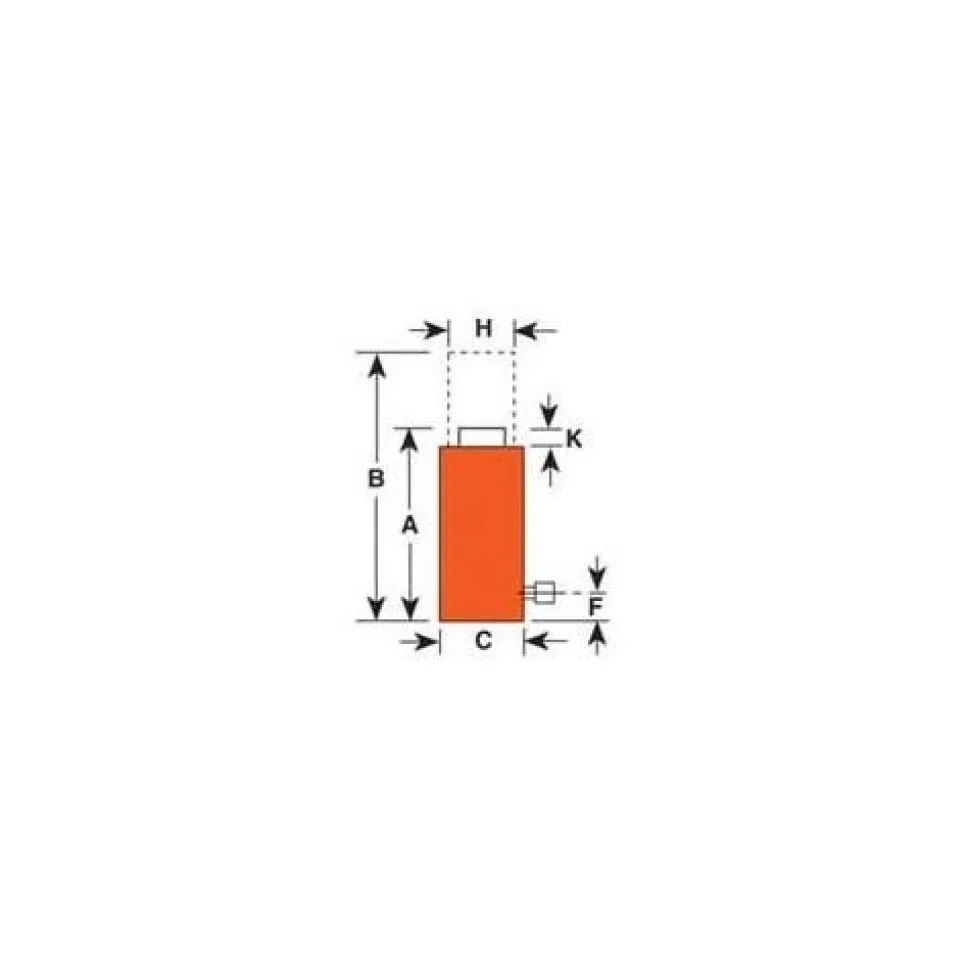

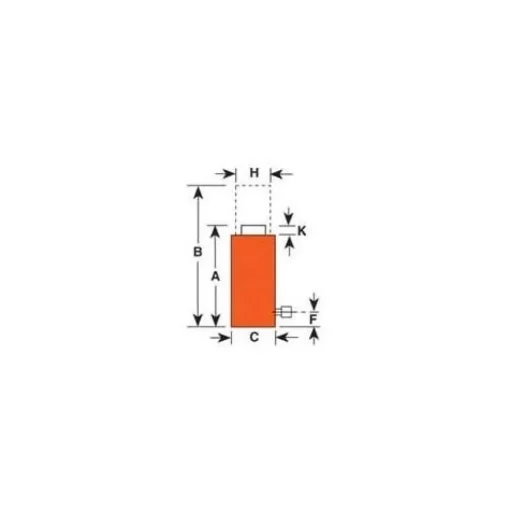

Retracted Height (in.) : 14 3/8
Extended Height (in.) : 20 3/8
Outside Dia. (in.) : 13
Base to Port (in.) : 2 1/2
Piston Rod Dia (in.): 10 1/2
Piston Rod Protrusion (in.): 1/8

Specifications

More Information
OPT SKU	PTR4306C
MPN	R4306C
UPC/GTIN	662536282338
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	6″
Tonnage	430-Ton
Shipping Weight	627.00
