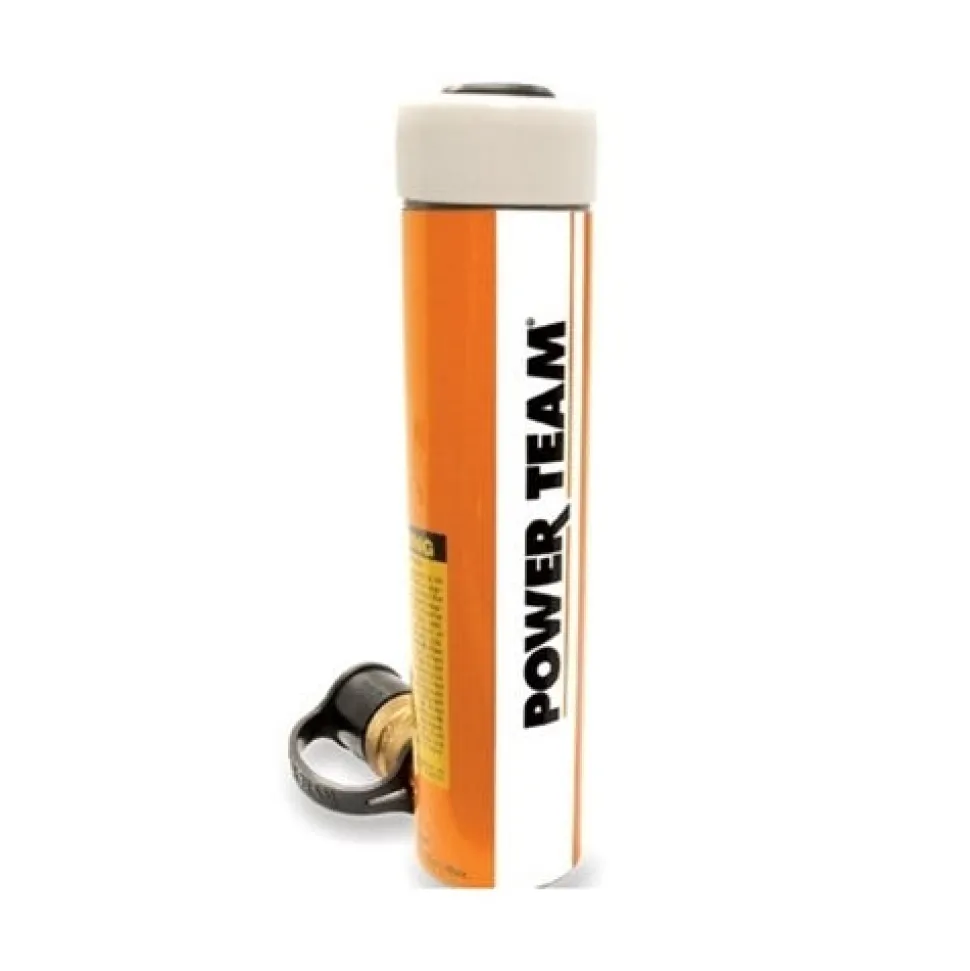

Power Team 5 Ton Hydraulic 1" Single Acting Spring Return Cylinder C51C

Power Team 5 Ton Hydraulic 1″ Single Acting Spring Return Cylinder C51C

$130.99

SKU: SKU76aenQYfcf Categories: Hydraulic Cylinders & Lifting Jacks, Power Tools Tag: Power Team SPX Brand: Power Team SPX

Description
Reviews (0)

Additional Details

Power Team
5 Ton Capacity.

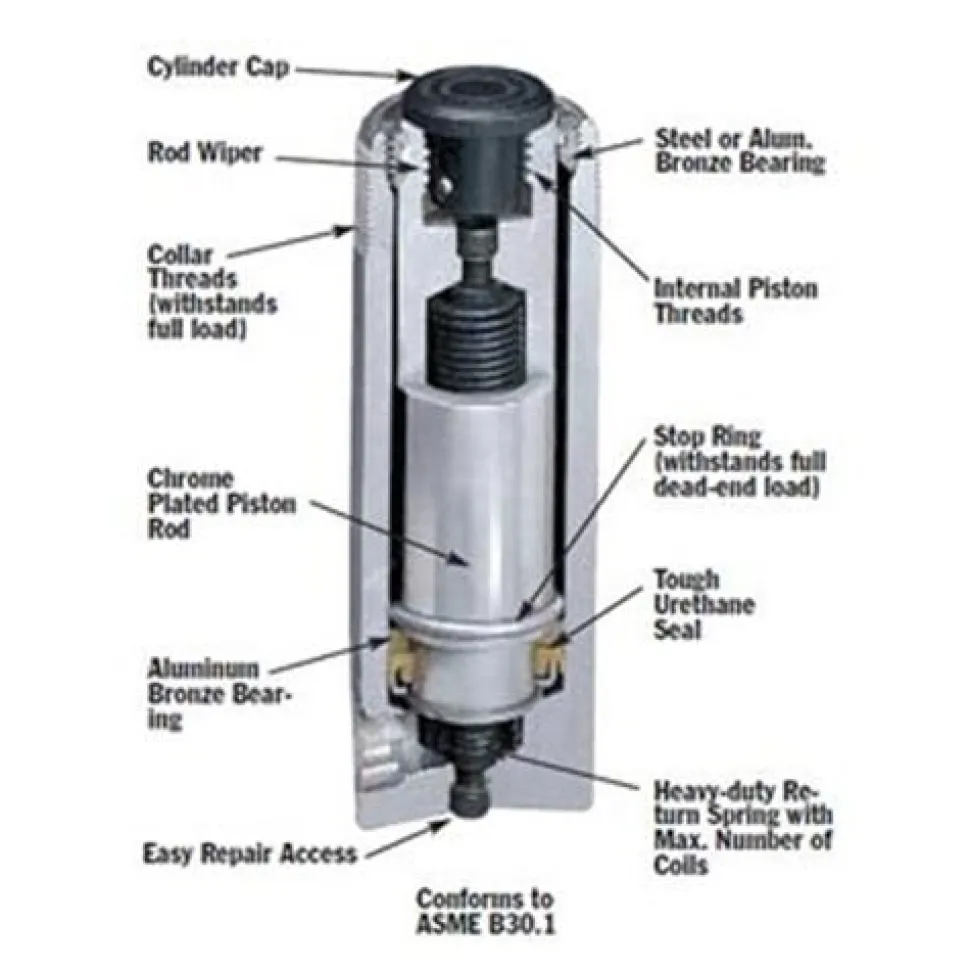

Solid bronze bearing reduces scoring caused by off-center loads.
Return springs have extra coils to speed piston return.

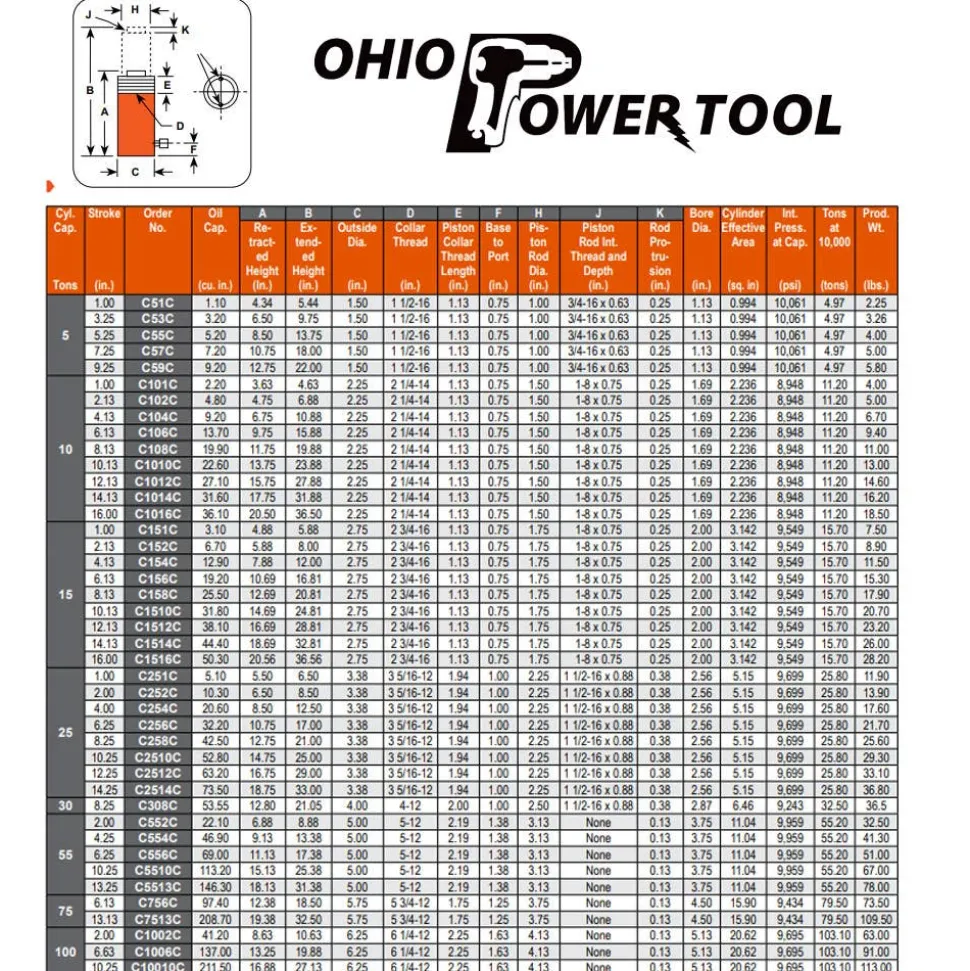

Order No.: C51C
Cylinder Capacity (Tons): 5
Stroke (in.): 1
Oil Cap. (cu. In.): 1.1
Bore Diameter (in.): 1 1/8
Cylinder Effective Area (sq. in): 0.994
Internal Pressure at Cap. (psi): 10061
Tons at 10;000 psi (psi): 4.97
Weight (lbs.): 2.25

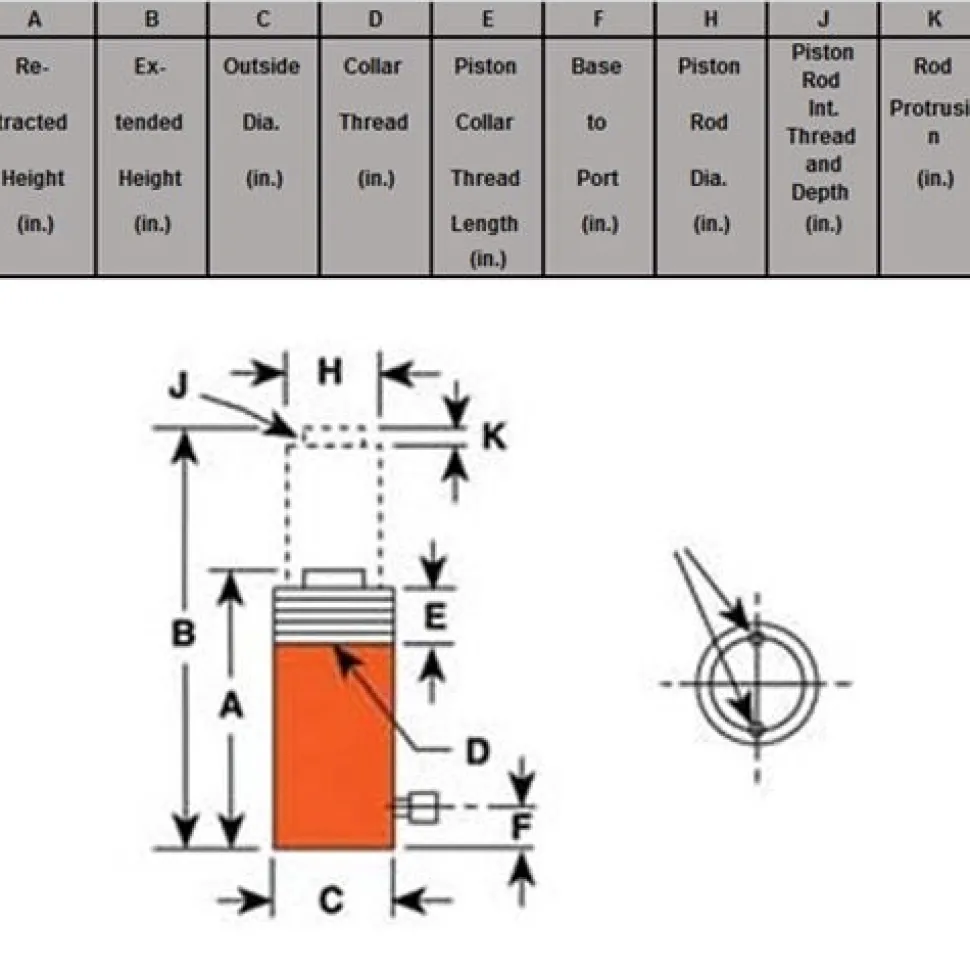

Retracted Height (in.): 4 1/3
Extended Height (in.): 5 4/9
Outiside Diameter (in.): 1 1/2
Collar Thread (in.): 1 1/2-16
Piston Collar Thread Length (in.): 1 1/8
Base to Port (in.): 3/4
Piston Rod Diameter (in.): 1
Piston Internal Thread and Depth (in.): 3/4-16 x 5/8
Rod Protrusion (in.): 1/4
** Not exact Picture

Specifications

More Information
OPT SKU	PTC51C
MPN	C51C
UPC/GTIN	662536000314
Product Type	Cylinder Rams Single Acting
Google Category	Business & Industrial > Material Handling
Stroke	1″
Tonnage	5-Ton
Shipping Weight	4.00
