Power Team 50 Ton Hydraulic 3″ Single Acting Cylinder Center Hole RH503

• Power Team
• 50 Ton Single Acting Center Hole Cylinder RH503
• Single-Acting
• Spring-Return
• Ideal for pulling and tensioning of cables; anchor bolts; forcing screws; etc.
• Interchangeable piston head inserts provide versatility of application.
• Threaded Collar
• Withstands full indead-endin loads.
• Corrosion resistant standpipe has inPower Techin treatment.
• All cylinders except RH120 are furnished with a 9796 3/8″ NPT female half coupler.
• Aluminum cylinder body and piston are featured on the RHA306 cylinder.
• ASME B30.1
• 10000 psi

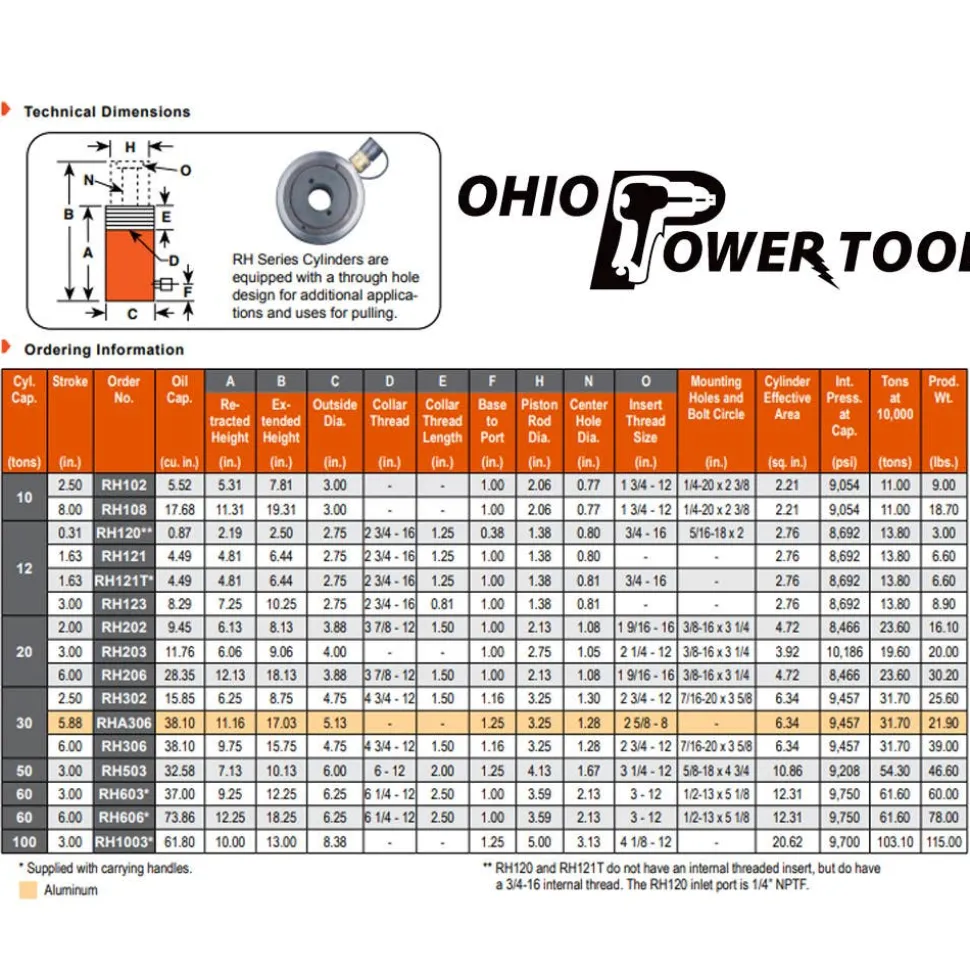

• Cylinder Capacity    50 ton
• Stroke            3.0 in
• Oil Capacity        32.58 in
• Retracted Height (A)    7 1/8 in
• Extended Height (B)    10 1/8 in
• Outside Diameter (C)    6 in
• Collar Thread (D)    6-12 in
• Collar Thread Length (E)    2 in
• Base to Port (F)        1 1/4 in
• Piston Rod Diameter (H)    4 1/8 in
• Center Hole Diameter (N)    1 43/64 in
• Insert Thread and Size (O)    3 1/4 – 12 in
• Mounting Holes Bolt Circle    5/8 -18 x 4 3/4 in
• Cylinder Effective Area    10.86 in
• Internal Pressure at Cap.    9208 psi
• Tons at 10;000 psi    54.3
• Product Weight        46.6 lb
• Material        Aluminum
• Series            RH

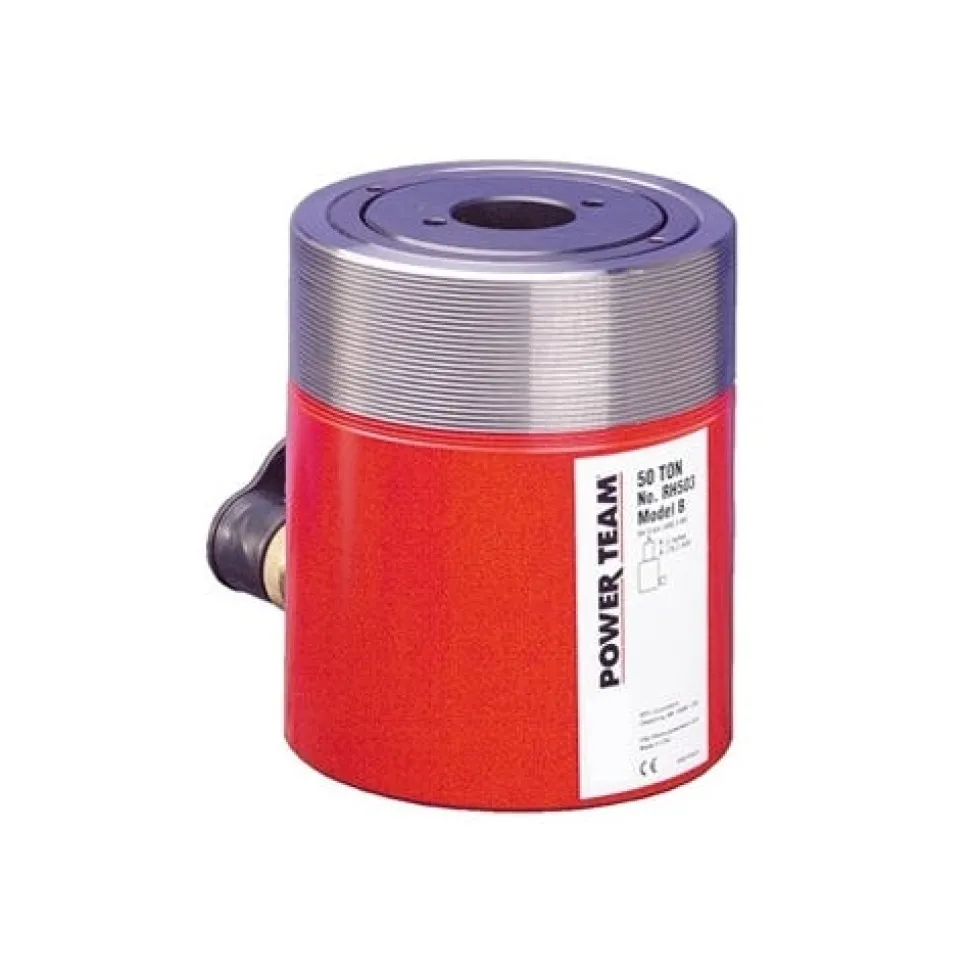

• ** Not Exact Image

“
