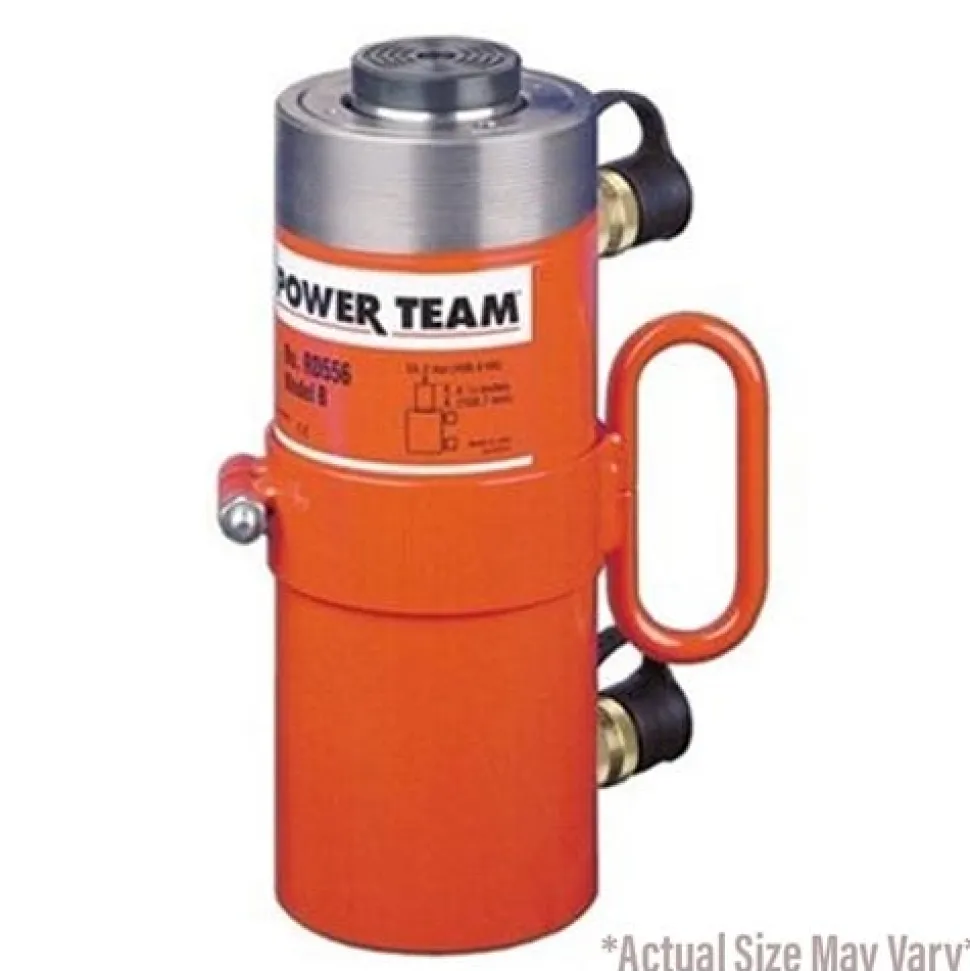

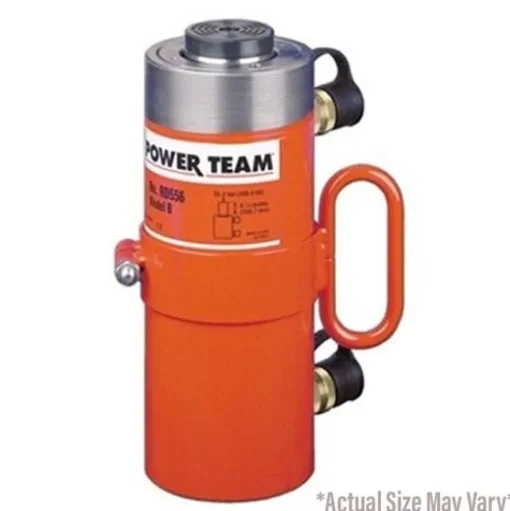

Power Team 500 Ton Hydraulic 6″ Double Acting Cylinder RD5006

• Power Team
• Financing is available – Click here for details
• HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
• Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
• Grooved ring pattern in load cap helps guard against load slippage.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.

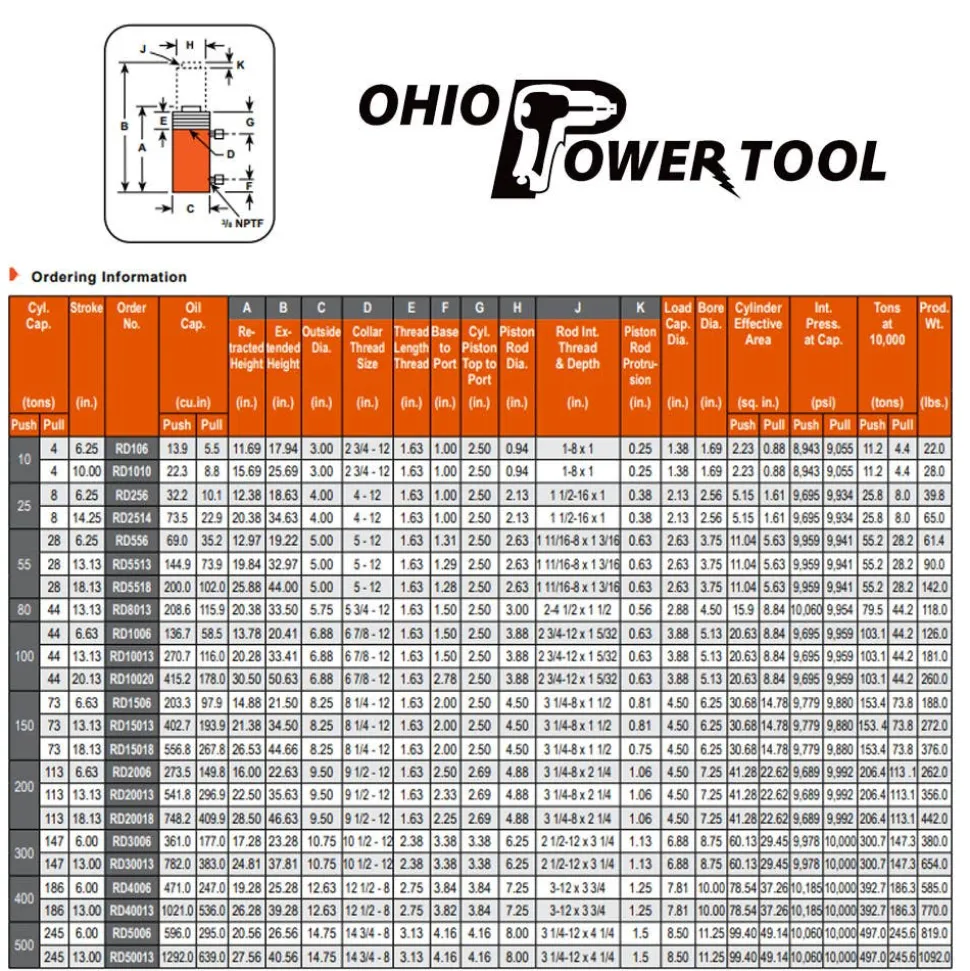

• Order No.  : RD5006
• Cyl. Cap. (tons) Push: 500
• Cyl. Cap. (tons) Pull: 245
• Stroke (in.)  : 6
• Oil Capacity (cu.in) Push: 596
• Oil Capacity (cu.in) Pull: 295
• Load Cap Dia. (in.) : 8 1/2
• Bore Dia. (in.)  : 11 1/4
• Cyl. Eff. Area (sq.in.) Push: 99.4
• Cyl. Eff. Area (sq.in.) Pull: 49.14
• Int. Press. at Cap. (psi) Push: 10;060
• Int. Press. at Cap. (psi) Pull: 10;000
• Tons at 10;000 psi  Push: 497
• Tons at 10;000 psi  Pull: 245.6
• Weight (lbs.)  : 819

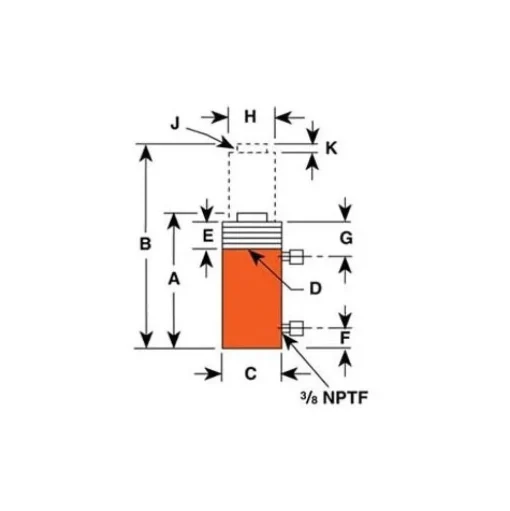

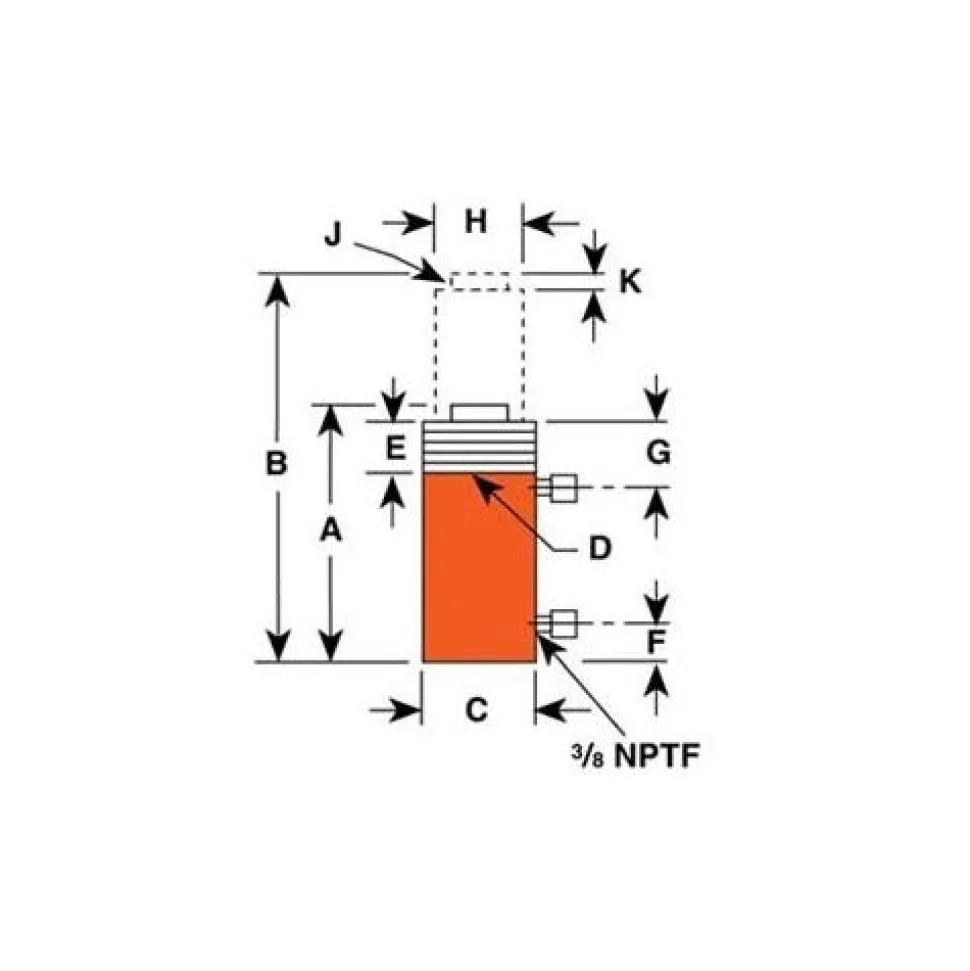

• Ret. Height (in.) : 20  9/16
• Ext. Height (in.) : 26  9/16
• Outside Dia. (in.) : 14 3/4
• Collar Thread Size (in.) : 14 3/4-8
• Thread Length Thread (in.) : 3 1/8
• Base to Port trusion (in.) : 4  5/32
• Cylinder Piston Top to Port (in.): 4  5/32
• Piston Rod Dia. Depth (in.) : 8
• Rod Int. and (in.) : 3 1/4-12×4 1/4
• Piston Rod Protrusion (in.)  : 1 1/2

“
