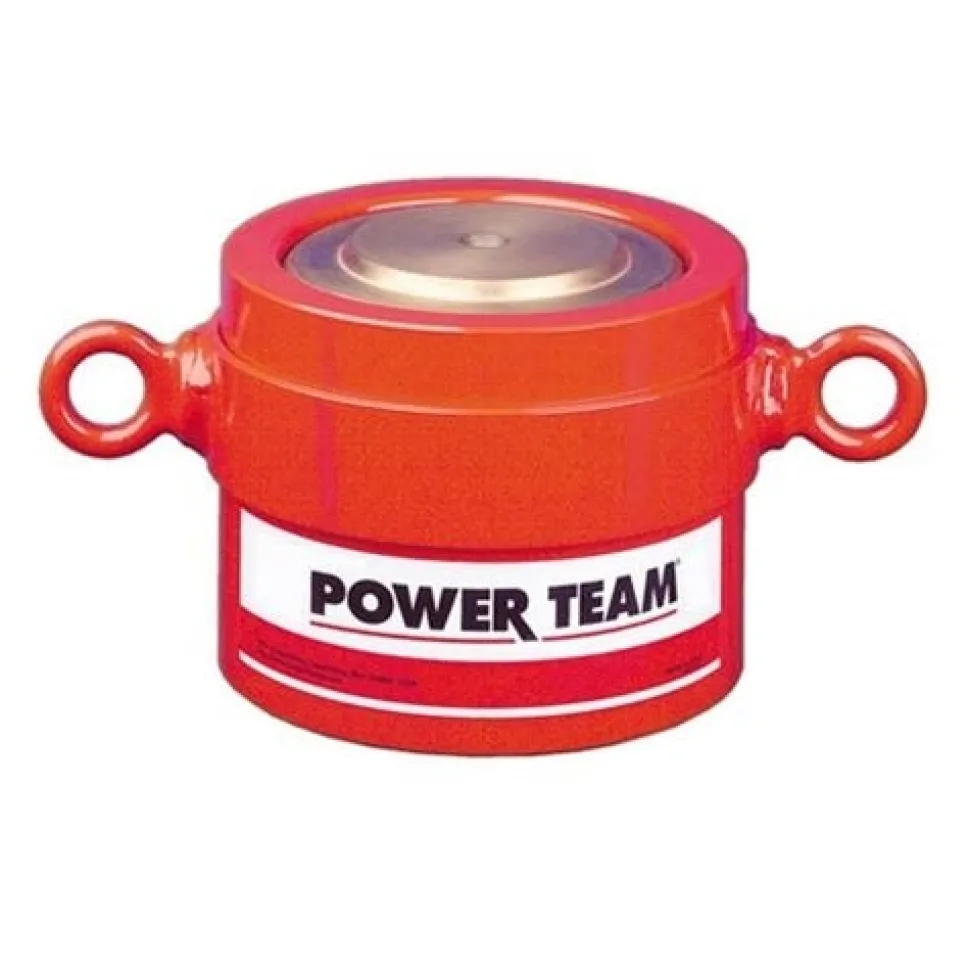

- Power Team
- HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
- Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
- Alloy heat treated piston and body for reliability and strength.
- Plated piston rod increases corrosion resistance and gives superior bearing support.

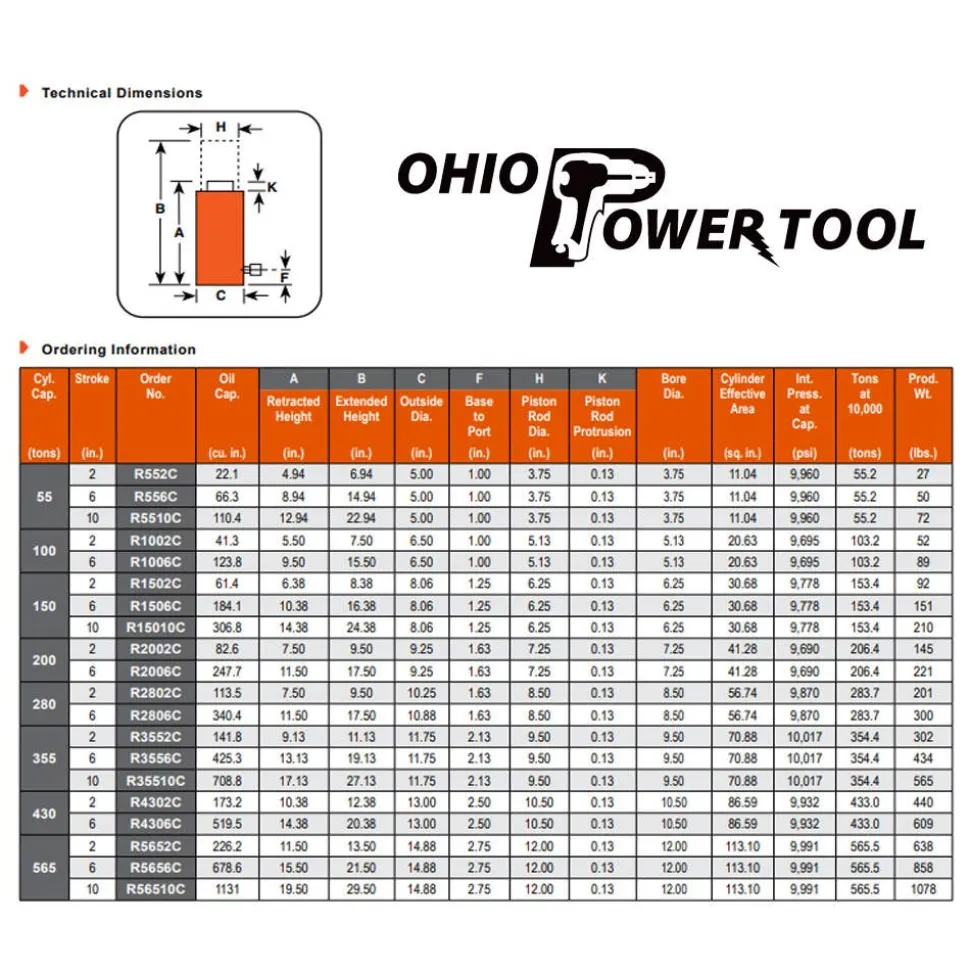

- Order No. : R5510C
- Cyl. Cap. (tons) : 55
- Stroke (in.) : 10
- Oil Cap. (cu. in.): 110.4
- Bore Dia. (in.): 3 3/4
- Cylinder Effective Area (sq. in.) 11.04
- Internal Pressure at Cap. (psi) 9;960
- Tons at 10000 (psi): 55.2
- Weight (lbs.) : 72

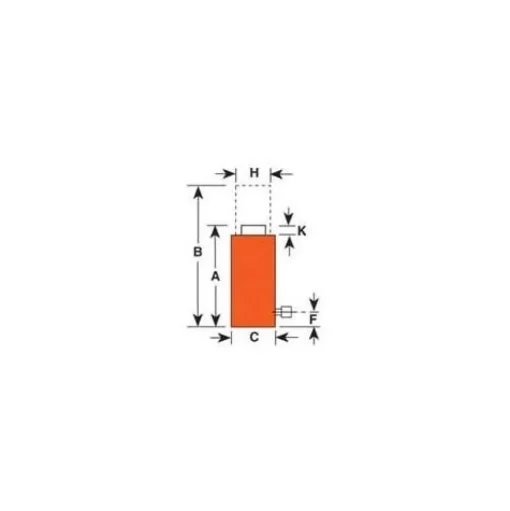

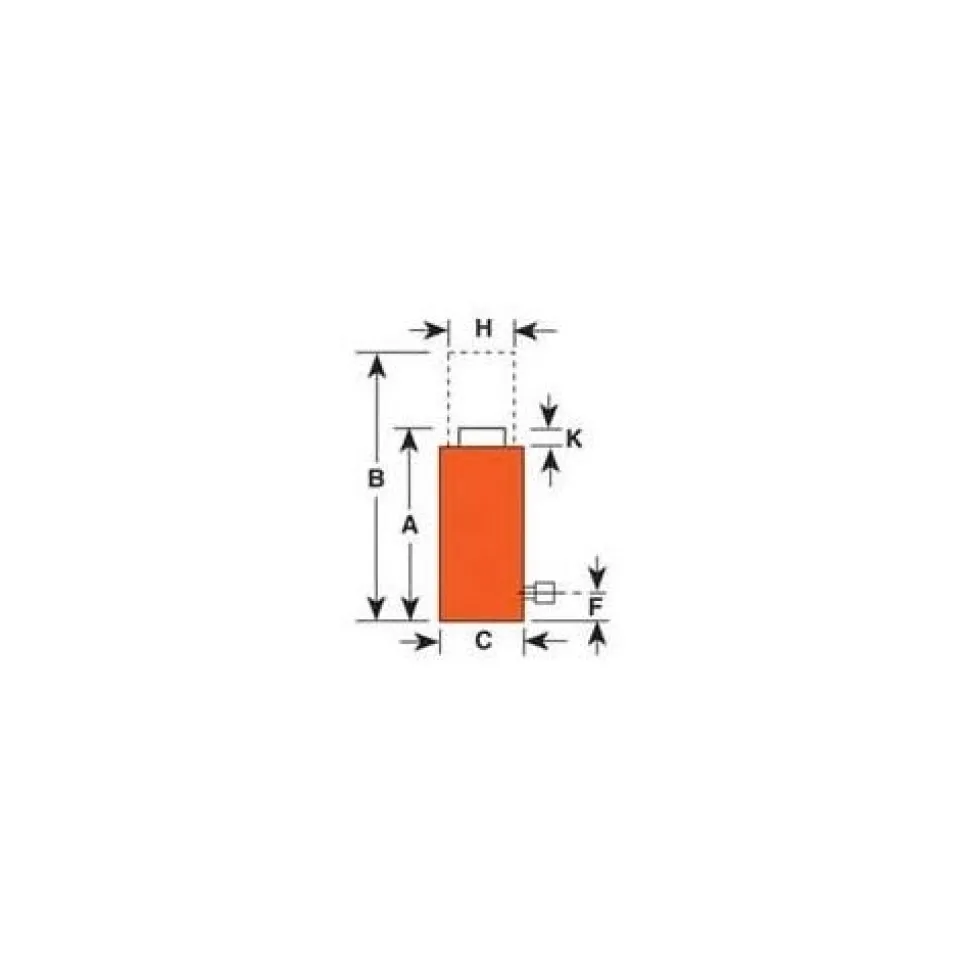

- Retracted Height (in.): 12 15/16
- Extended Height (in.): 22 15/16
- Outside Dia. (in.): 5
- Base to Port (in.): 1
- Piston Rod Dia (in.): 3 3/4
- Piston Rod Protrusion (in.): 1/8
| OPT SKU | PTR5510C |
|---|---|
| MPN | R5510C |
| UPC/GTIN | 662536455923 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 10″ |
| Tonnage | 55-Ton |
| Shipping Weight | 75.00 |
