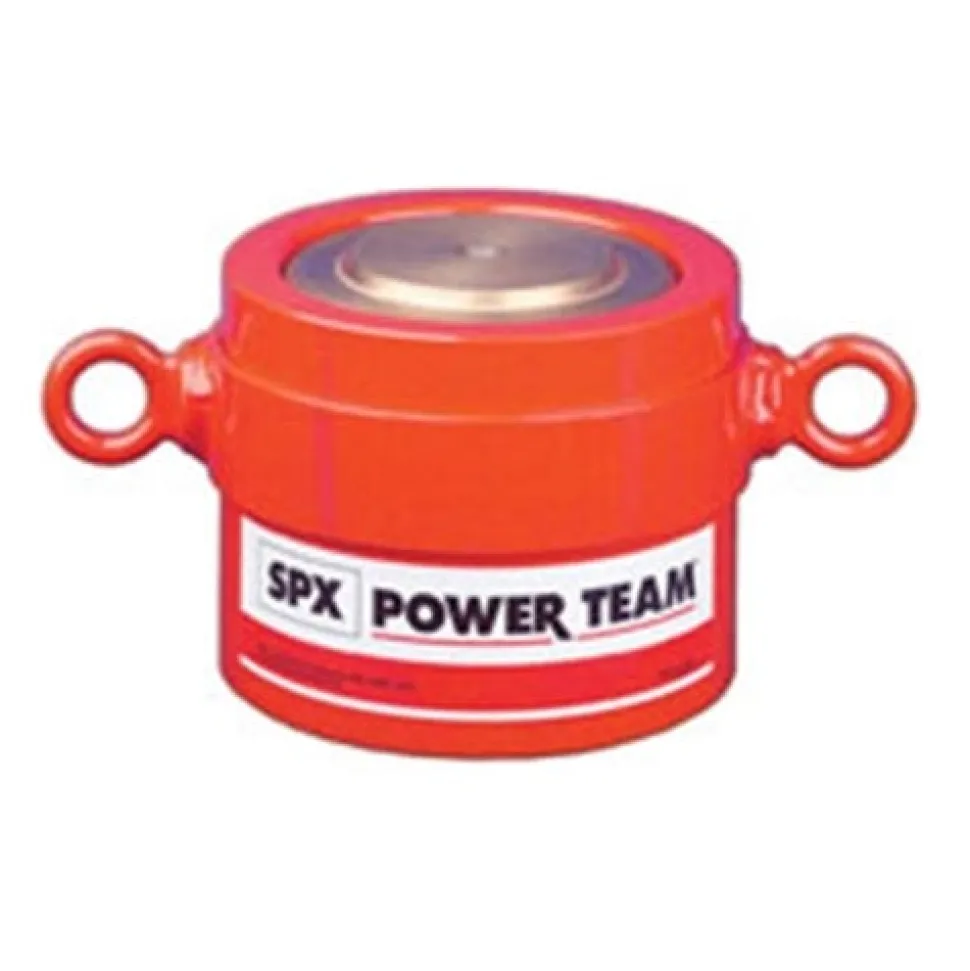

Power Team 565 Ton Hydraulic 10″ Single Acting Load Return Cylinder R56510C

• Power Team
• Financing is available – Click here for details
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
• Alloy heat treated piston and body for reliability and strength.
• Plated piston rod increases corrosion resistance and gives superior bearing support.

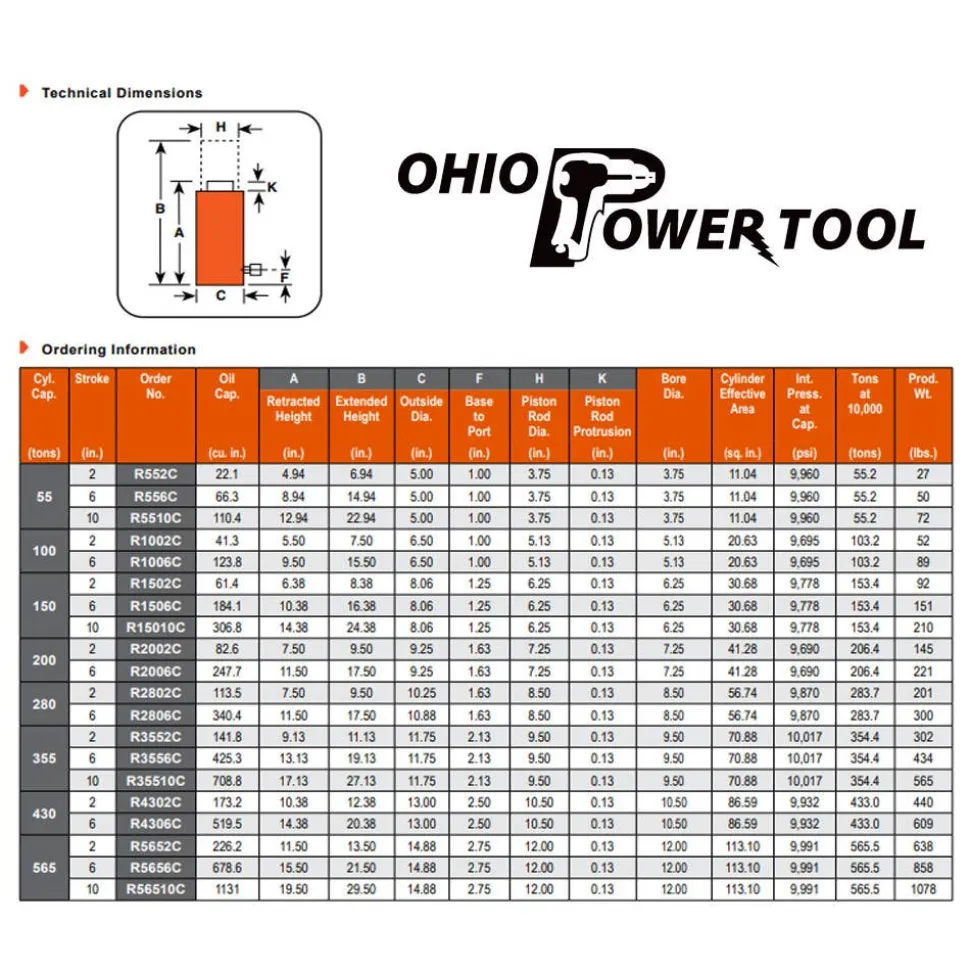

• Order No.   : R56510C
• Cyl. Cap. (tons)  : 565
• Stroke (in.)  : 10
• Oil Cap. (cu. in.) : 1131
• Bore Dia. (in.) : 12
• Cylinder Effective Area (sq. in.): 113.1
• Internal Pressure at Cap. (psi): 9;991
• Tons at 10000 (psi) : 565.5
• Weight (lbs.)  : 1078

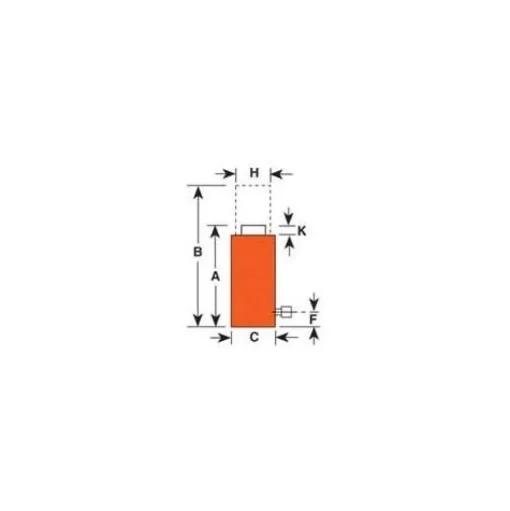

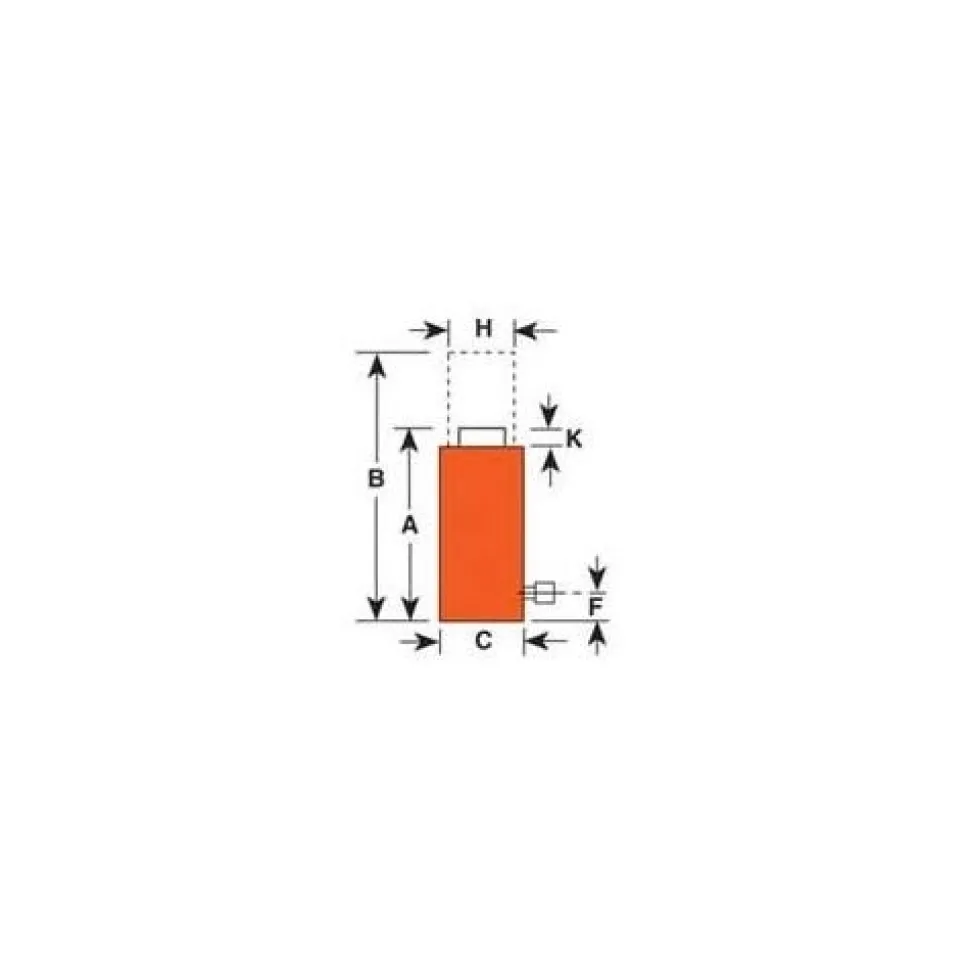

• Retracted Height (in.) : 19 1/2
• Extended Height (in.) : 29 1/2
• Outside Dia. (in.) : 14 7/8
• Base to Port (in.) : 2 3/4
• Piston Rod Dia (in.): 1 2
• Piston Rod Protrusion (in.):    1/8

“
