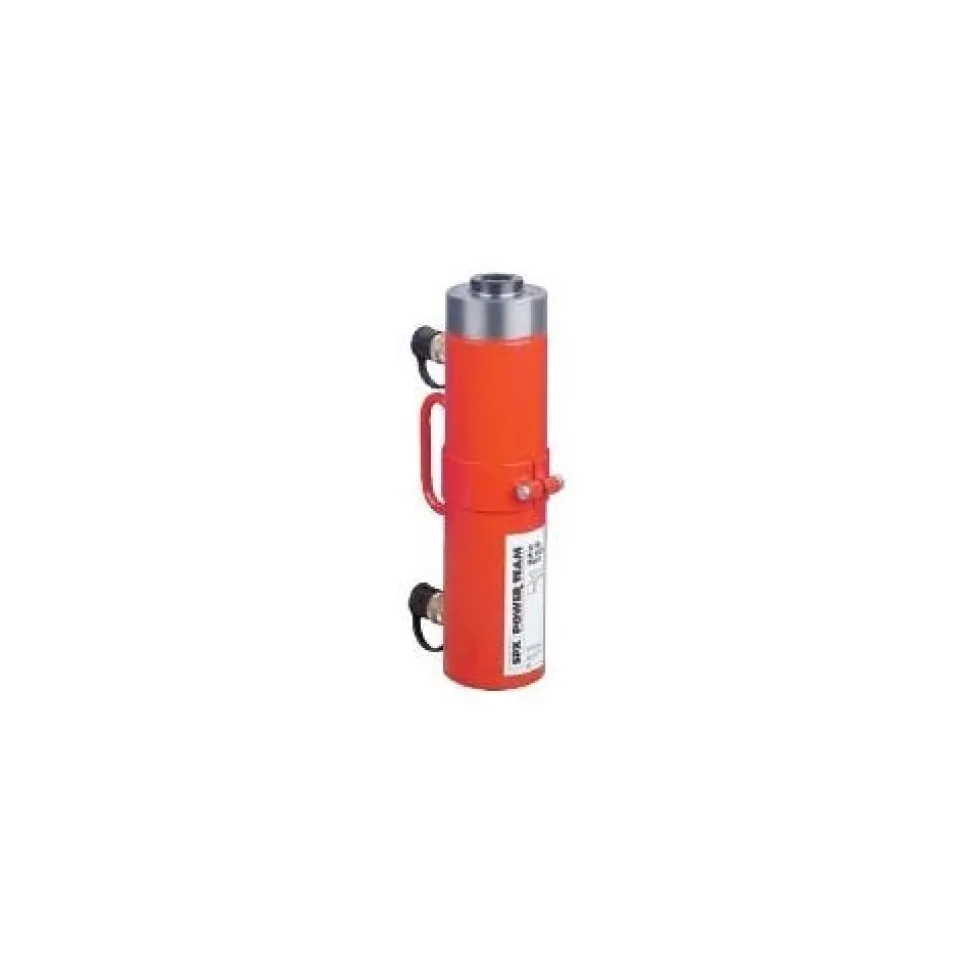

Power Team 60 Ton Hydraulic 10-1/8″ Double Acting Cylinder Center RH6010

Power Team SPX

Power Team 60 ton hydraulic 10-1/8 double acting cylinder center hole RH6010

For pulling and tensioning of cables;anchor bolts;forcing screws.

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• 30; 60; 100 Ton Double-Acting Models Feature Threaded Collar
• Built-in safety feature prevents overpressurization of the retract circuit.
• Plated piston rod resists wear; superior packings provide high cycle life without leakage.
• Corrosion-resistant standpipe has “Power Tech” treatment.
• Each cylinder has 9796 3/8″ NPTF female half couplers.

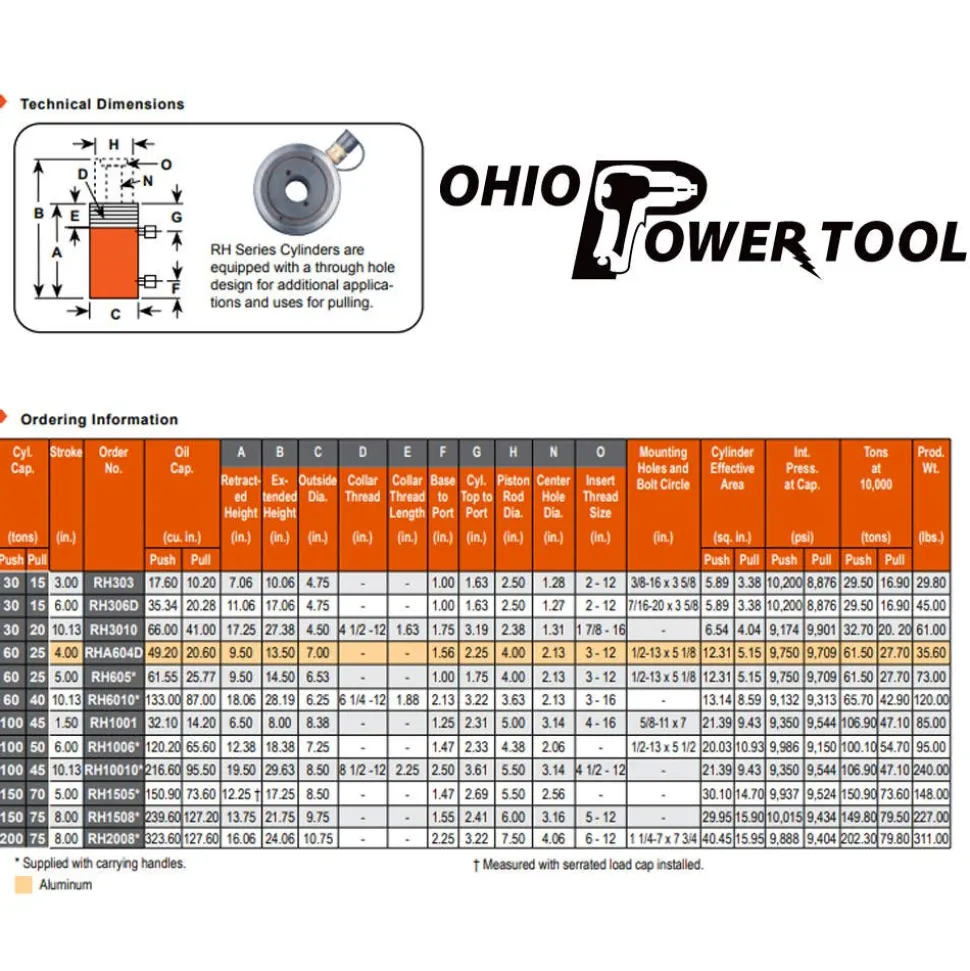

SPECIFICATIONS:

Stroke length:	10.125″
Piston rod diameter:	3.625″
Series/type:	RH-Series/Center hole
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	60 Ton
Pull capacity:	40 Ton
Oil capacity:	133.000″³
Pull/return oil capacity:	87.000³
Retracted height:	18.063″
Extended height:	28.188″
Effective area:	13.140″²
Pull cylindrical effective area:	8.590″²
Tons at 10;000 PSI:	65.70 Ton
Pull tons at 10;000 PSI:	42.90 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;313 PSI
Bore size:	4.091″
Base to port:	2.125″
Outside diameter:	6.250″
Center hole diameter:	2.125″
Insert thread size:	4-16
Cylinder material:	Steel
Cylinder top to diameter:	3.219″
Weight:	120.00lbs

“
