Power Team 75 Ton Hydraulic 5/8″ Low Profile Cylinder Spring Return RLS750S

• Power Team
• IDEAL FOR CONFINED AREAS FROM 1 5/8 TO 4″ CLEARANCE.
• Cylinder body; piston and gland nut Power Tech treated for corrosion and abrasion resistance.
• Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of offcenter loading.
• Unique heavy duty spring provides fast piston return.
• A 9796 3/8″ NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8″ coupler which is not angled). Oil ports are 3/8″ NPTF.
• Couplers on all cylinders; except RLS50; are angled upward for extra clearance.

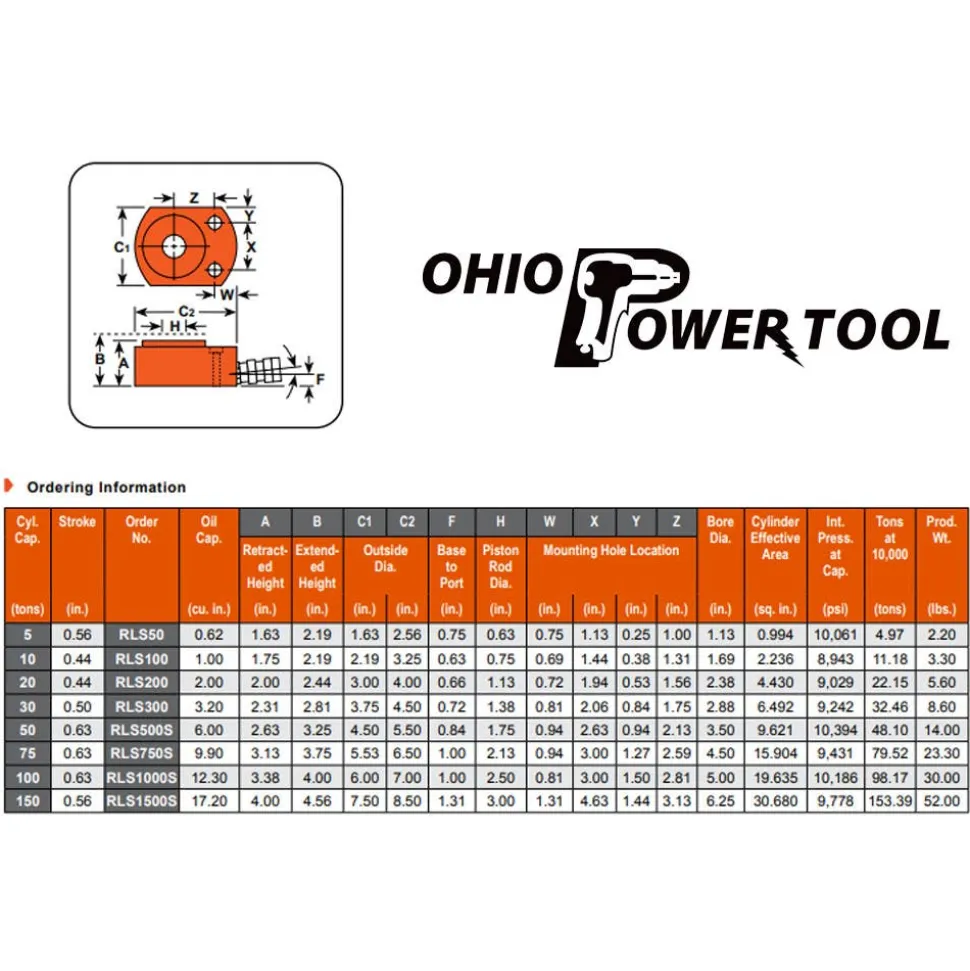

• Order No. : RLS750S
• Cyl. Cap. (tons): 75
• Stroke (in.) :    5/8
• Oil Cap. (cu. in.): 9.9
• Bore Dia. (in.): 4 1/2
• Cyl. Eff. Area (sq. in.): 15.904
• Int. Press at Cap. (psi): 9;431
• Tons at 10000 (psi): 79.52
• Weight (lbs.) : 23.3
• Order No. : RLS750S
• Retracted Height : 3 1/8
• Extended Height : 3 3/4
• Outside Dia. : 5 17/32 x 6 1/2
• Base to Port : 1
• Piston Rod Prod. Dia.: 2 1/8

“
