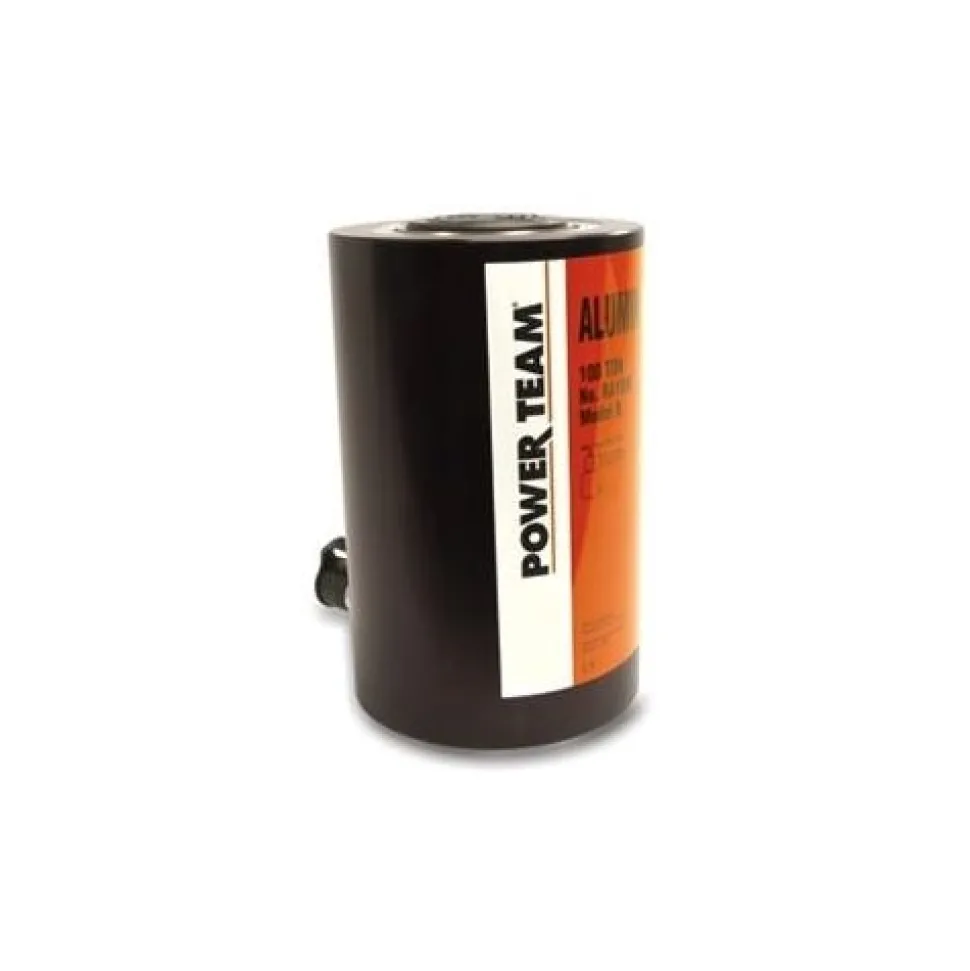

Power Team Aluminum 100 Ton Hydraulic 6-1/4″ Single Acting Cylinder Spring Return RA1006
$130.89
- Power Team
- HALF THE WEIGHT OF EQUAL CAPACITY STEEL CYLINDERS.
- Aluminum body resists sparking in explosive environments.
- Hard coated aluminum piston rod and cylinder bore resist wear and corrosion.
- Grooved piston top helps keep the load from sliding on top of piston.
- Designed for jacking and other non- production operations.

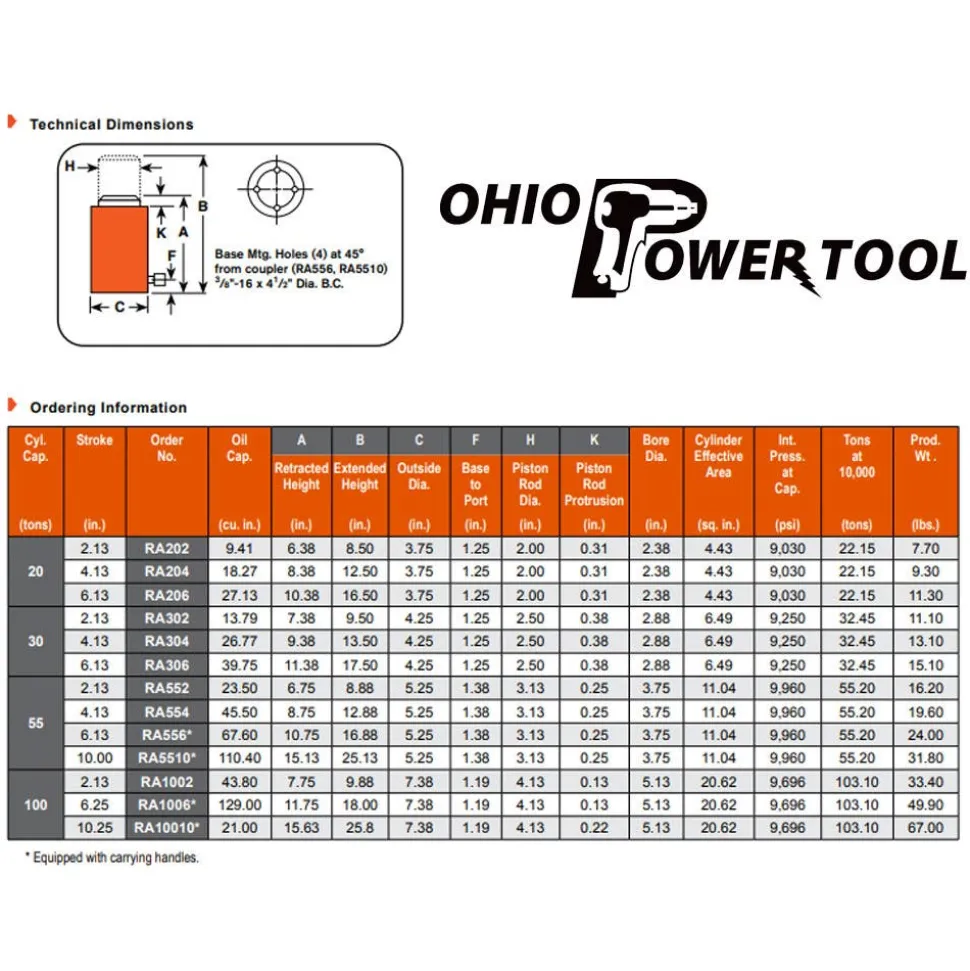

- Order No. : RA1006
- Cyl. Cap. (tons) : 100
- Stroke (in.) : 6 1/4
- Oil Cap. (cu. in.) : 129
- Bore Dia. (in.) : 5 1/8
- Cylinder Effective Area (sq. in.): 20.62
- Internal Pressure at Cap. (psi): 9;696
- Tons at 10000 (psi) : 103.1
- Weight (lbs.) : 49.9

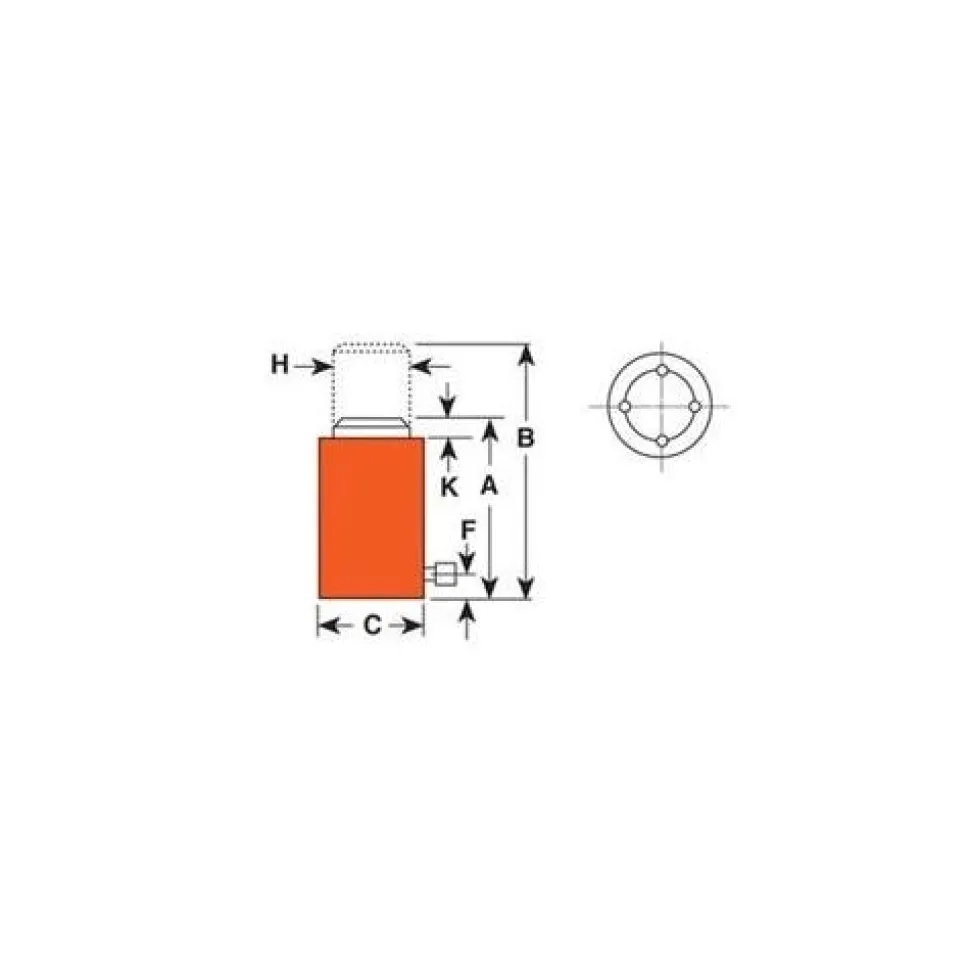

- Retracted Ht. (in.) : 11 3/4
- Extended Height (in.) : 18
- Outside Dia. (in.) : 7 3/8
- Base to Port (in.): 1 3/16
- Piston Rod Dia. (in.): 4 1/8
- Piston Rod Protrusion (in.): 1/8
| OPT SKU | PTRA1006 |
|---|---|
| MPN | RA1006 |
| UPC/GTIN | 662536002646 |
| Product Type | Cylinder Rams Single Acting |
| Google Category | Business & Industrial > Material Handling |
| Stroke | 6-1/4″ |
| Tonnage | 100-Ton |
| Shipping Weight | 51.00 |
