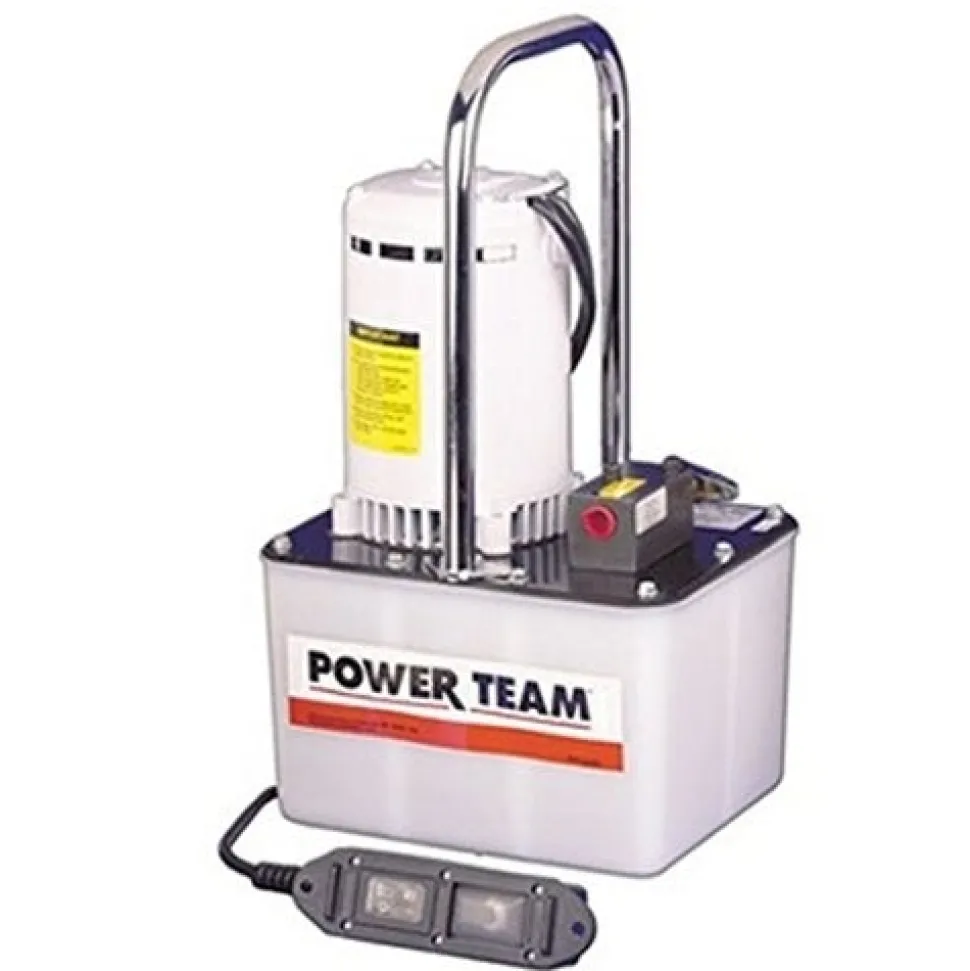

Power Team Electric Hydraulic Pump – Double Acting PE174

Power Team

Electric Hydraulic Pump – Double Acting PE174

FEATURES:

• Two-speed high performance at a low price. Ideal for maintenance and construction applications where low voltage is a concern.
• Generally recommended for cylinders up to 55 ton.
• Equipped with 3;450 rpm; single-phase; thermal protected induction motor; 10 ft. remote control cord.
• Low amperage draw; small generators and low amperage circuits can be used as power source.
• 2 gallon thermoplastic reservoir.
• PE172; except has 9500 double-acting valve.
• 110/115V 50/60HZ
• 4-Way Valve Type.
• Advanced Hold Return Valve Function.
• Remote Motor Control (10ft.) on/off Control Switch.
• For use with single-acting or double-acting cylinders at operating pressures to 10;000 psi
• For intermittent duty; starts under full load
• Equipped with 1/2 hp; 3;450 rpm; single-phase; thermal protected induction motor; 10 ft. remote control cord

SPECIFICATIONS:

For use with Cylinder Type	Single/ Double-Acting
Description	PE172; except has 9500 double-acting valve.
Valve Type	4-Way
Valve Number	9500
Valve Function	Advance Hold Return
Control Switch	Remote Motor Control (10ft.) on/off
Motor	1/2 hp; 110/115V* 50/60 Hz; Single Phase
ReservoirUsable (cu .in.)	295

“
